Wago 756-5516/040-020
Sensor/Actuator cable; 2xM12 socket; straight; M12A plug; straight; 4-pole; Length: 2 m
- MPN
- 756-5516/040-020
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5516/040-020?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

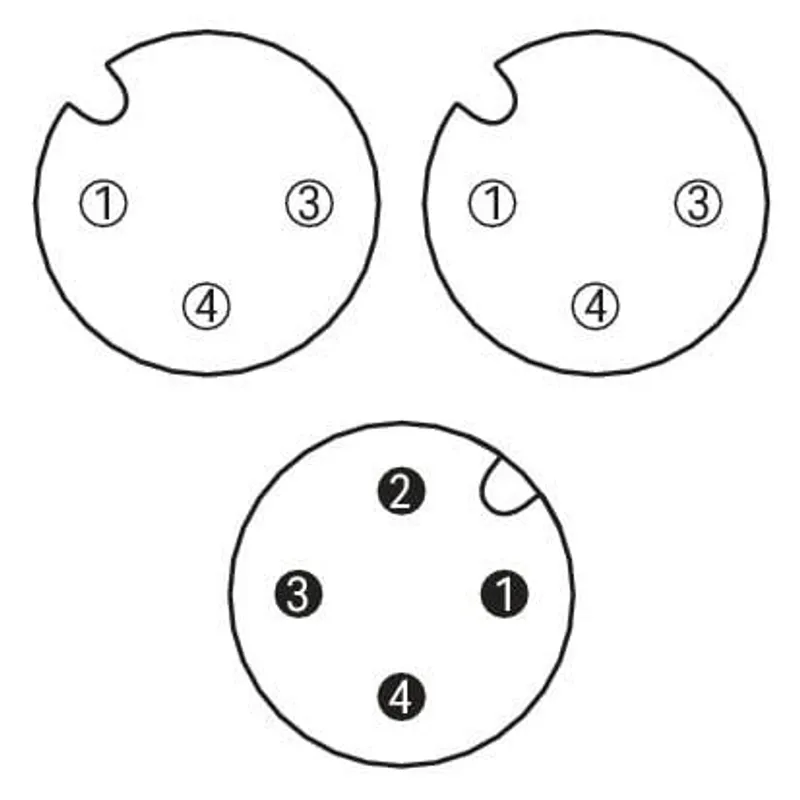

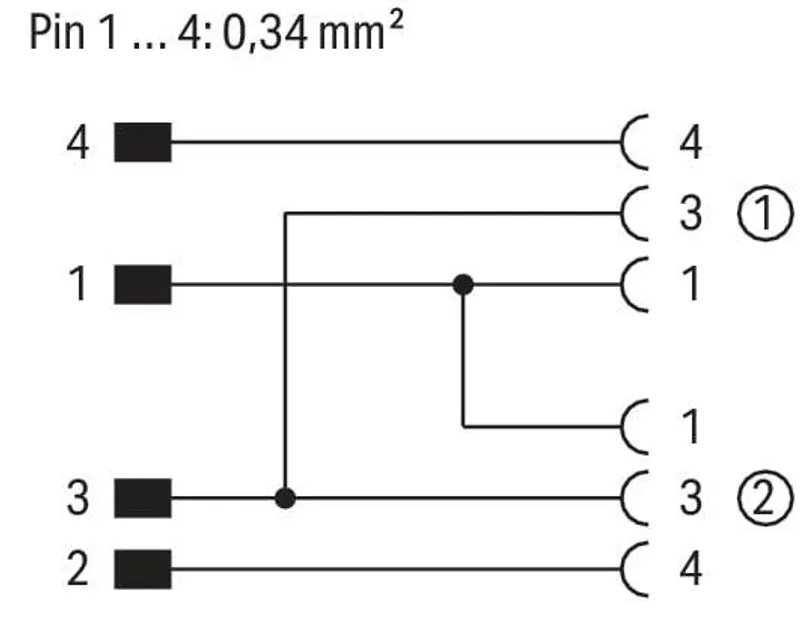

Technical data - Connector
| Connection type | M12 Socket; M12 Socket - M12 plug |
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 1 2 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918994873 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 7eb725b4-c651-4909-8d5b-00f4f181fd54 |
| SCIP notification number (Belgium) | cdae3aea-db21-40c6-82b9-5a2666c11de5 |
| SCIP notification number (Bulgaria) | e5c860c1-e792-4b72-bc5b-5811692ec369 |
| SCIP notification number (Czech Republic) | 72b06e4b-669d-4ddf-8183-fdeedc51bc90 |
| SCIP notification number (Denmark) | c36fe627-d38f-41e8-8e47-9950f7452ac0 |
| SCIP notification number (Finland) | 01e10e18-e218-485c-b91b-02e241d85a66 |
| SCIP notification number (France) | 92fc79ec-dc9a-49a2-8709-1e83be010fd9 |
| SCIP notification number (Germany) | 6a33c669-5621-447a-a131-144c418d2b08 |
| SCIP notification number (Hungary) | 35fc1119-7c06-4979-b933-8e6326997675 |
| SCIP notification number (Italy) | 022f5c5a-f18f-41a3-955c-a894b9eab1f2 |
| SCIP notification number (Netherlands) | a41ec58a-56f3-46a1-8fa7-caf25fa51cdf |
| SCIP notification number (Poland) | 6e7c30f9-c424-433d-9981-6f940106ff08 |
| SCIP notification number (Romania) | f6f0998b-cbc5-4b99-abc1-2cbc7520c9ac |
| SCIP notification number (Sweden) | 6ed8c819-efa7-4101-bfb6-6197b3716c21 |
No matching specifications
756-5516/040-020: frequently asked questions
When can 756-5516/040-020 be shipped?
756-5516/040-020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5516/040-020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5516/040-020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5516/040-020, subject to availability and destination.
