Wago 756-5516/040-010
Sensor/Actuator cable; 2xM12 socket; straight; M12A plug; straight; 4-pole; Length: 1 m
- MPN
- 756-5516/040-010
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5516/040-010?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

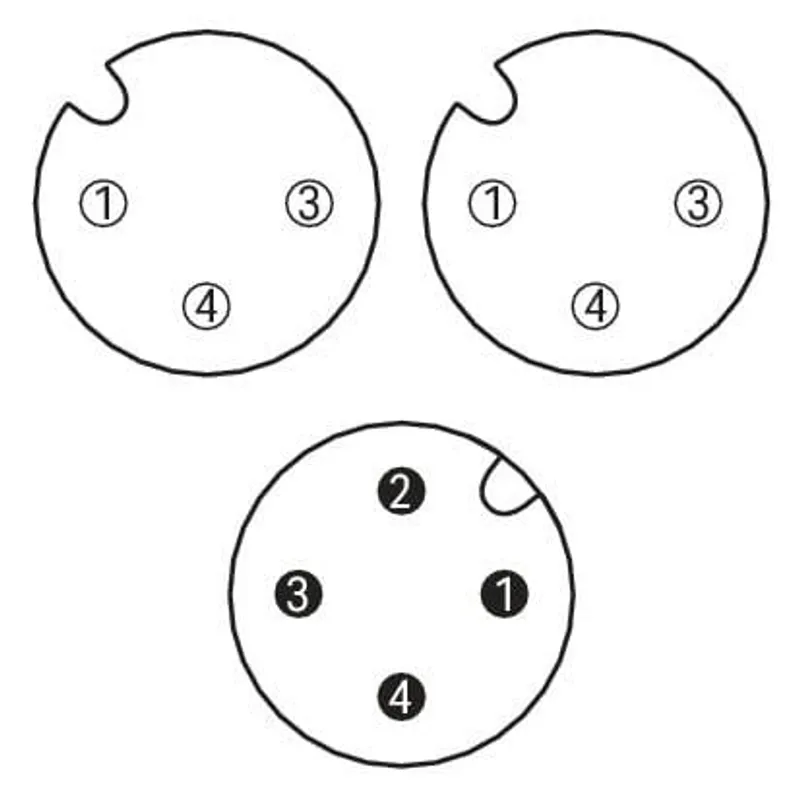

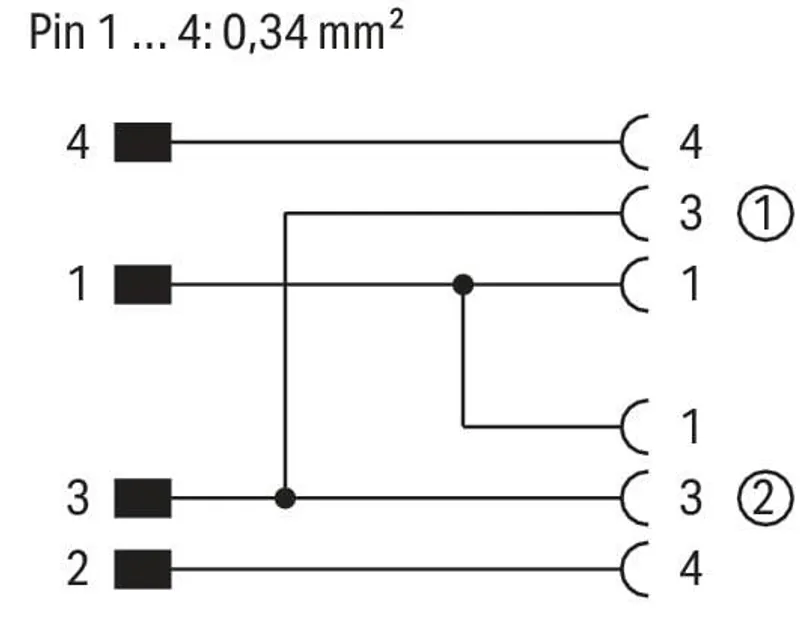

Technical data - Connector
| Connection type | M12 Socket; M12 Socket - M12 plug |
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 1 2 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918994859 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 24bae0a4-e45a-4cd0-bd8b-6141f1be65ee |
| SCIP notification number (Belgium) | 211d30ff-8997-459b-b512-c7d3b1ce735f |
| SCIP notification number (Bulgaria) | ebcaea10-e291-47fa-a8f8-835a9652308e |
| SCIP notification number (Czech Republic) | 920621f8-520f-4893-aba3-bacfc85282e2 |
| SCIP notification number (Denmark) | 75fca941-77f4-41a2-9625-da11ca94b47a |
| SCIP notification number (Finland) | d2d2da97-9a53-4ee7-9bf2-1d452ed74fb2 |
| SCIP notification number (France) | 4da19154-a356-4f15-848d-582072ae3afb |
| SCIP notification number (Germany) | af4bfeee-2d9d-4b7a-8926-f648ad06ea75 |
| SCIP notification number (Hungary) | 61222768-71ae-4472-bdc0-3c067aae0045 |
| SCIP notification number (Italy) | c743716b-307c-4ff9-868c-737942b87226 |
| SCIP notification number (Netherlands) | a88acbc9-ffe1-4633-9543-5712d4029ead |
| SCIP notification number (Poland) | 70823778-bb27-4fd9-b886-0d2475e7594a |
| SCIP notification number (Romania) | dfffc115-23d9-43ec-88c6-11268d79ec7c |
| SCIP notification number (Sweden) | a437e2cc-cbb2-42c8-b363-c3b8435b0b11 |
No matching specifications
756-5516/040-010: frequently asked questions
When can 756-5516/040-010 be shipped?
756-5516/040-010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5516/040-010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5516/040-010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5516/040-010, subject to availability and destination.
