Sensor/Actuator cable; M12A socket; angled; M8 plug; angled; 3-pole; Length: 1 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-5504/030-010 be shipped?
756-5504/030-010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5504/030-010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5504/030-010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5504/030-010, subject to availability and destination.
<p><b>Short description:</b></p><ul><li>PUR, halogen-free</li><li>Suitable for drag chains</li><li>Good resistance to microbes, hydrolysis, oil, chemicals and UV radiation. </li><li>Good chemical resistance.</li><li>Cable used: UL listed</li></ul>
Specifications
Technical data - General information
| Operating voltage | AC/DC 60 V |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

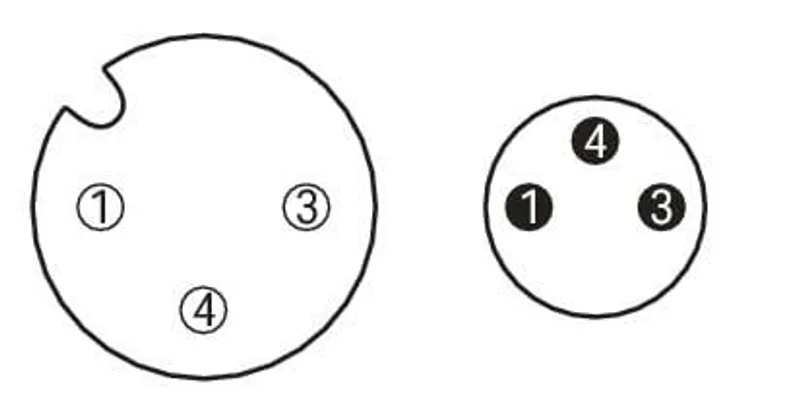

| Connection type | M12 Socket - M8 plug |
| Pole number | 3 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918974844 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 476103e7-251b-49c1-bb45-e5c051eb6105 |
| SCIP notification number (Belgium) | 434aa30e-afc3-493e-ac07-b903e70bec5d |
| SCIP notification number (Bulgaria) | 11e020ba-6f3e-43c1-a87a-fda9324ab8c8 |
| SCIP notification number (Czech Republic) | 96178905-00b9-42e0-bef0-f2f88e1b9ba8 |
| SCIP notification number (Denmark) | f60312fd-61fa-465d-810e-cc026ca352cb |
| SCIP notification number (Finland) | dd25563c-1680-4b6f-a13c-9cdb41bc7f90 |
| SCIP notification number (France) | c547ae65-7b12-4124-99ea-9ceedcc00fff |
| SCIP notification number (Germany) | cca9a524-a475-460e-be11-cc304185cf85 |
| SCIP notification number (Hungary) | 52138419-fead-4fab-a863-8f51e8384660 |
| SCIP notification number (Italy) | e1a0a190-a02a-4af7-9f42-7c8432634257 |
| SCIP notification number (Netherlands) | 2ab136e8-3146-49a0-a308-bb2f1568517f |
| SCIP notification number (Poland) | 96399986-a646-48c5-9ceb-c8a4268bf9d4 |
| SCIP notification number (Romania) | 9bfeede5-ad41-4e16-8179-4d8471e80c68 |
| SCIP notification number (Sweden) | 0216b120-47f9-48cf-a204-f01a228a2f60 |
