Wago 756-5503/030-020
Sensor/Actuator cable; M12A socket; angled; M8 plug; straight; 3-pole; Length: 2 m
- MPN
- 756-5503/030-020
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5503/030-020?
Short description:
PUR, halogen-free
Suitable for drag chains
Good resistance to microbes, hydrolysis, oil, chemicals and UV radiation.
Good chemical resistance.
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | AC/DC 60 V |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

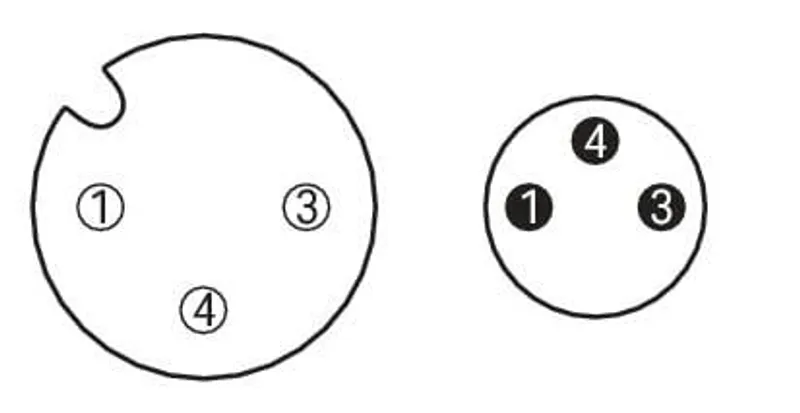

| Connection type | M12 Socket - M8 plug |
| Pole number | 3 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918974813 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | e3186a6c-d730-46cf-96ab-51565c2b0161 |
| SCIP notification number (Belgium) | a7892096-5436-4bc5-829d-2b7d3f9527a6 |
| SCIP notification number (Bulgaria) | b643b92b-5c7f-4e6b-88c5-c9305fbd9038 |
| SCIP notification number (Czech Republic) | f500bb26-ab46-4f23-bd30-bc9e0fd92ae7 |
| SCIP notification number (Denmark) | 28174e79-96b5-40da-b8b1-d728af5c146a |
| SCIP notification number (Finland) | e1cf483c-cb20-468c-a7d9-c5bf67efc10e |
| SCIP notification number (France) | 6fea6e66-8ab4-474b-9665-89c884829c9b |
| SCIP notification number (Germany) | ab8fed9c-10e9-426b-961b-06e8b288423b |
| SCIP notification number (Hungary) | fdb9d5b3-fd0f-460c-adee-953610a14344 |
| SCIP notification number (Italy) | 79b2982c-8664-4089-9fa8-1848ee6ffb63 |
| SCIP notification number (Netherlands) | f985570c-e5b2-453d-ac46-04ef847ffee8 |
| SCIP notification number (Poland) | 10d7f03f-42ef-498c-b2d8-a6210d400d64 |
| SCIP notification number (Romania) | 19fbacaa-a724-42c1-9dc6-4cb3550bece6 |
| SCIP notification number (Sweden) | 1d4a43d0-f69a-4bcb-a4a4-b610605ebc2b |
