Sensor/Actuator cable; M12A socket; angled; M12A plug; angled; 5-pole; Length: 2 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-5404/050-020 be shipped?
756-5404/050-020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5404/050-020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5404/050-020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5404/050-020, subject to availability and destination.
<p><b>Short description:</b></p><ul><li>PUR, halogen-free</li><li>Suitable for drag chains</li><li>High resistance to microbes, hydrolysis, oil, chemicals and UV radiation </li><li>High chemical resistance</li><li>Cable used: UL listed</li></ul>
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |

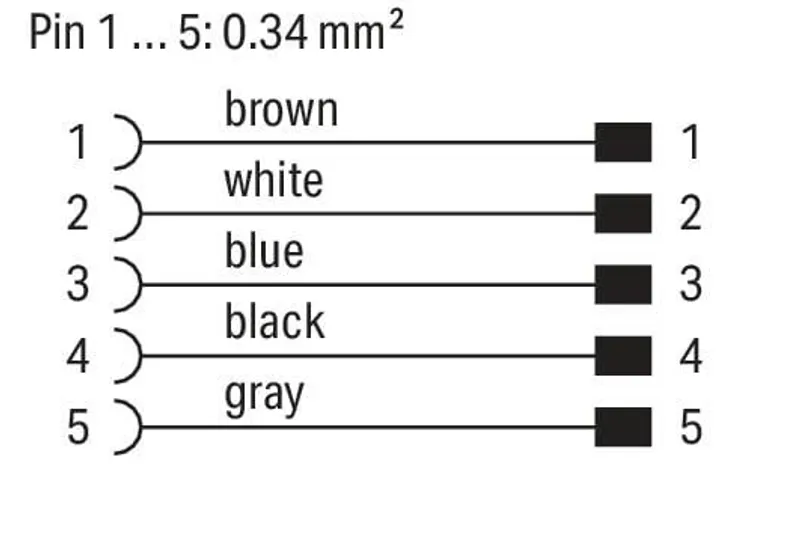

| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

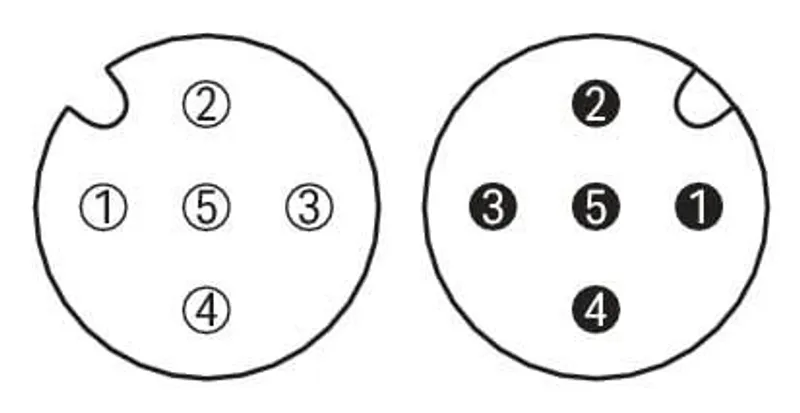

| Connection type | M12 Socket - M12 plug |
| Pole number | 5 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975681 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | fff76b18-7e4c-439b-9243-e4bf97be1a21 |
| SCIP notification number (Belgium) | d0e7f54c-b51f-4d1d-8832-04da6b58333d |
| SCIP notification number (Bulgaria) | 587fb611-0d4c-46a4-8ff9-bf6dabe29afa |
| SCIP notification number (Czech Republic) | 0ab4dd2b-3299-425f-91ac-da7cc2df51c3 |
| SCIP notification number (Denmark) | 2d5bf720-2b5d-4ef5-be39-93994f4e9fc3 |
| SCIP notification number (Finland) | e777ecdc-2bce-4527-addd-7928f5aa7cb5 |
| SCIP notification number (France) | 26f09033-6a65-474f-aa90-0c51e4d95d53 |
| SCIP notification number (Germany) | 46be6f24-7c67-4f36-8a58-8b13aedaeffd |
| SCIP notification number (Hungary) | c0ca7d39-e0b2-41ea-a054-617e16df141a |
| SCIP notification number (Italy) | 81929aab-3a1a-4ce8-834c-3819447282df |
| SCIP notification number (Netherlands) | c1df2d73-d6f0-4ad1-ab51-e84849dbb918 |
| SCIP notification number (Poland) | ece26cc0-94f0-4844-92a4-85bca1c96ae1 |
| SCIP notification number (Romania) | 21141e96-975a-468f-90b6-3b62d58e9950 |
| SCIP notification number (Sweden) | 3454aeb2-00c1-4c41-b3b6-b6e99266034e |
