Wago 756-5404/050-010
Sensor/Actuator cable; M12A socket; angled; M12A plug; angled; 5-pole; Length: 1 m
- MPN
- 756-5404/050-010
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5404/050-010?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |

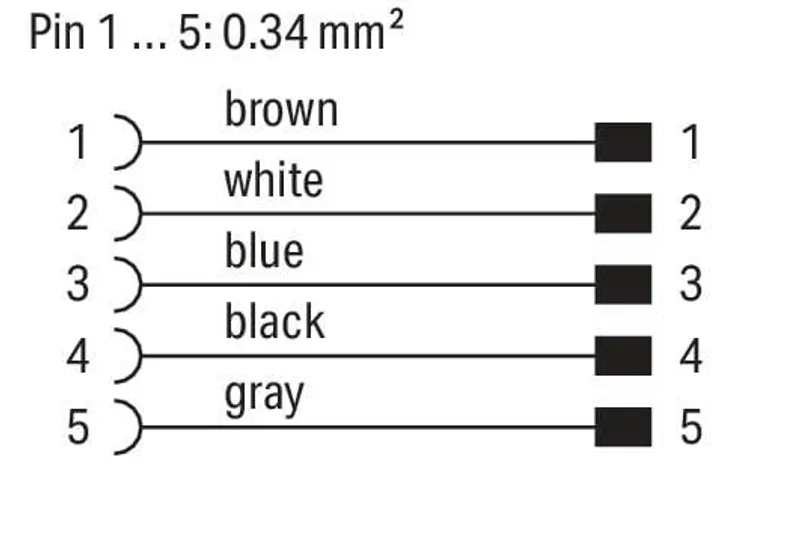

| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

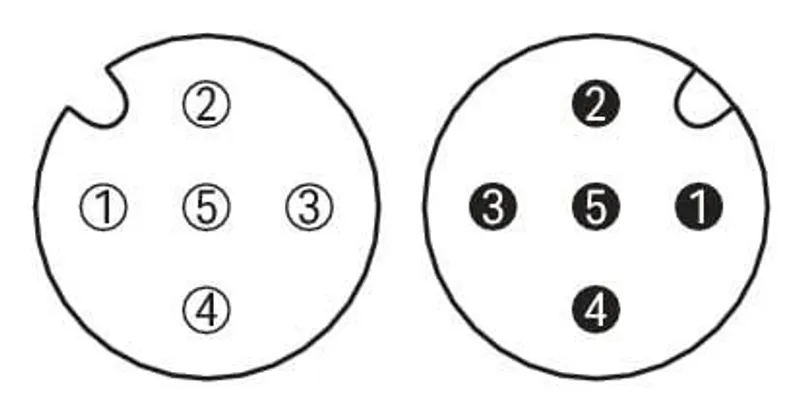

| Connection type | M12 Socket - M12 plug |
| Pole number | 5 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975674 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | ff987b7f-6fb7-465a-b594-8b1239ebe86f |
| SCIP notification number (Belgium) | 656dd5af-e4ec-4660-9280-5d7da8038d52 |
| SCIP notification number (Bulgaria) | 204e4733-b8df-43cd-a1f2-66b334ff3ab5 |
| SCIP notification number (Czech Republic) | 80bf005a-97fb-418f-82b5-ff0289321cfd |
| SCIP notification number (Denmark) | 6f9ca49c-10c8-4542-a555-8c443a596784 |
| SCIP notification number (Finland) | 27f0e2e2-da5a-4a47-bbb8-57b9468ca2c3 |
| SCIP notification number (France) | 35b30ea3-6b00-490c-8818-4ac14ffba264 |
| SCIP notification number (Germany) | 55be6bac-6138-43cc-a4d6-3d58918bc2a2 |
| SCIP notification number (Hungary) | fa62df72-1954-4868-8408-7cb565c666fb |
| SCIP notification number (Italy) | c3131a4f-0cad-4376-8a6d-0dd45ab495d4 |
| SCIP notification number (Netherlands) | 6400829c-cde0-4aba-af25-eb355ca901e7 |
| SCIP notification number (Poland) | d81d4e26-36fd-42e6-aa6a-b82022cb075c |
| SCIP notification number (Romania) | 8bf5acff-986f-4b00-b159-280579a5e2fe |
| SCIP notification number (Sweden) | 26056ae9-4512-49a0-adf1-bd1f26cf5c3f |
No matching specifications
756-5404/050-010: frequently asked questions
When can 756-5404/050-010 be shipped?
756-5404/050-010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5404/050-010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5404/050-010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5404/050-010, subject to availability and destination.
