Wago 756-5312/050-015
Sensor/Actuator cable; M12A plug; angled; 5-pole; Length: 1.5 m
- MPN
- 756-5312/050-015
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5312/050-015?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1.5 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |

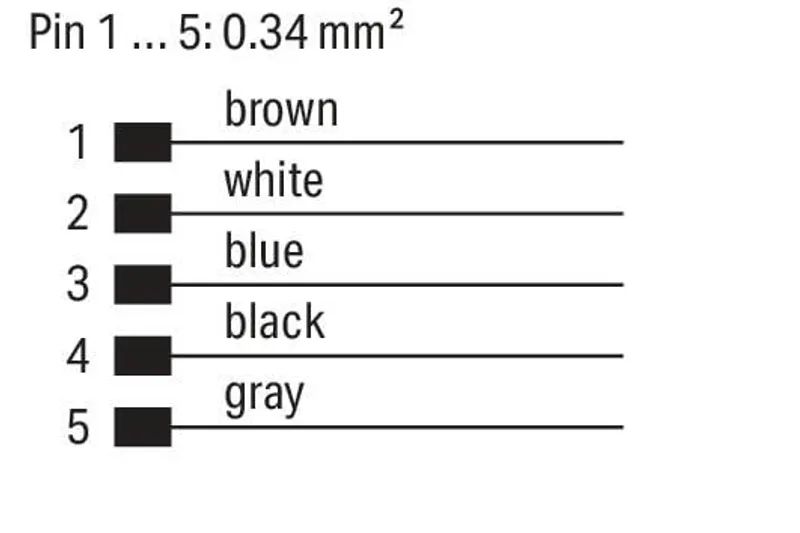

| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 plug - free end |

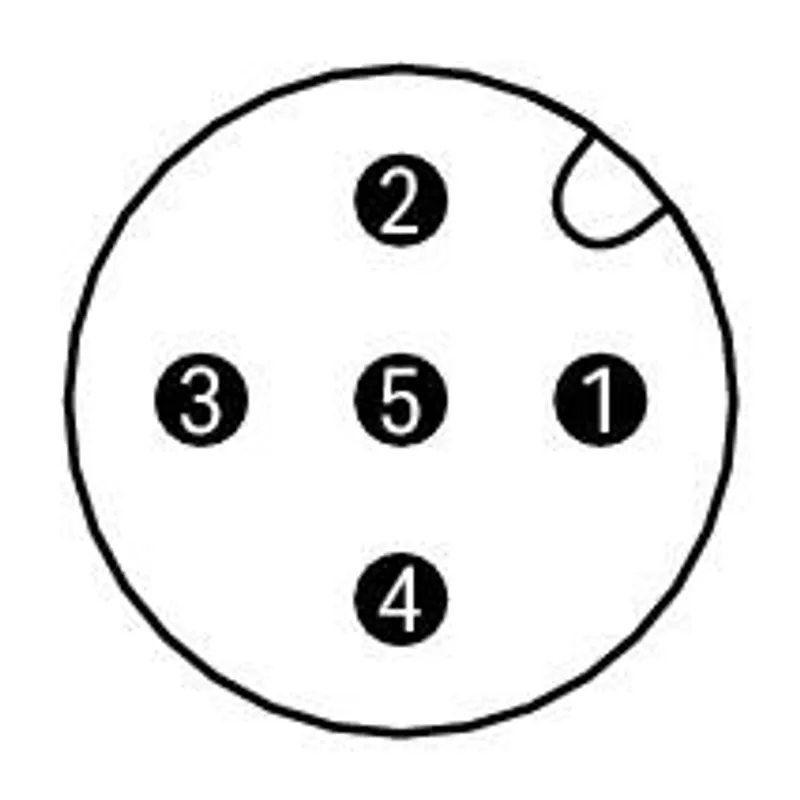

| Pole number | 5 |
| Cable connection direction to mating direction | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454942335 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | ea7e1af0-9594-4774-889c-f59f87086c18 |
| SCIP notification number (Belgium) | 6e024f38-a461-434c-af2d-8fd2b7bbdb14 |
| SCIP notification number (Bulgaria) | b70e9b33-dc18-4a11-bcc2-b574e9125043 |
| SCIP notification number (Czech Republic) | c86c98e9-8515-461f-8fc2-62e5439a7e01 |
| SCIP notification number (Denmark) | 866ff662-bf47-4901-bcf7-82bd7611b5cb |
| SCIP notification number (Finland) | d7e7054e-0683-4170-88b0-a4d5b06f258f |
| SCIP notification number (France) | 28467bfe-2f71-480e-a113-3bef5728e83b |
| SCIP notification number (Germany) | aad1ecd1-83e2-4804-bb78-1ef5c3e03601 |
| SCIP notification number (Hungary) | be2d29cc-fa9e-4d4a-b70e-5f51ee4bcda9 |
| SCIP notification number (Italy) | 4e272cfb-10e1-4d5f-9312-35083a2d1f92 |
| SCIP notification number (Netherlands) | 5315d7c4-400f-4734-8fa2-e512cd0eecba |
| SCIP notification number (Poland) | 689614f6-6b7c-4bb3-bc03-9747d2685132 |
| SCIP notification number (Romania) | ee97e525-aed2-4b13-9bbb-2c4ad13df28d |
| SCIP notification number (Sweden) | 7ef0e214-2dc7-4a61-9104-084a0b5380ae |
