Wago 756-3101/040-200
Power cable; M12A socket; straight; 4-pole; Length: 20 m
- MPN
- 756-3101/040-200
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-3101/040-200?
Short description:
PUR, halogen-free
UL / CSA
Suitable for drag chains
Silicon- and CFC-free
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data

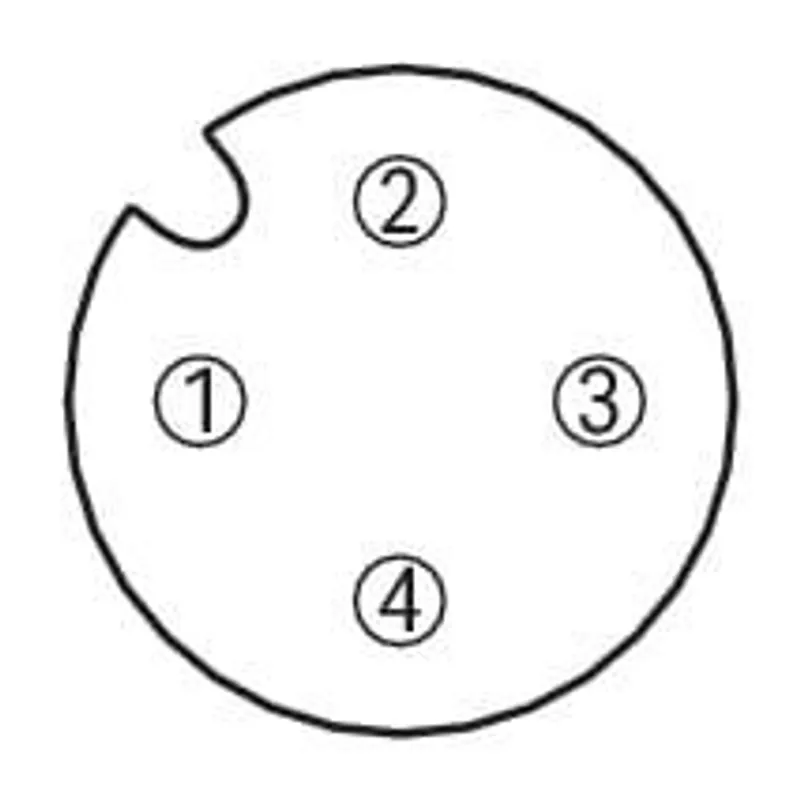

| Connection type | M12 socket - free end |
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Cable length | 20 m |
| PLC manufacturer | WAGO |
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Contact resistance | 10 mΩ |
| Insulation resistance | >109 Ω |
| Conductor resistance | ≤ 26 Ω/km |
Mechanical data
| Bending radius | 10 x cable diameter (min.) for flexible application |
| Bending cycles | 4 Mio. |
| Drag chain capability | yes |

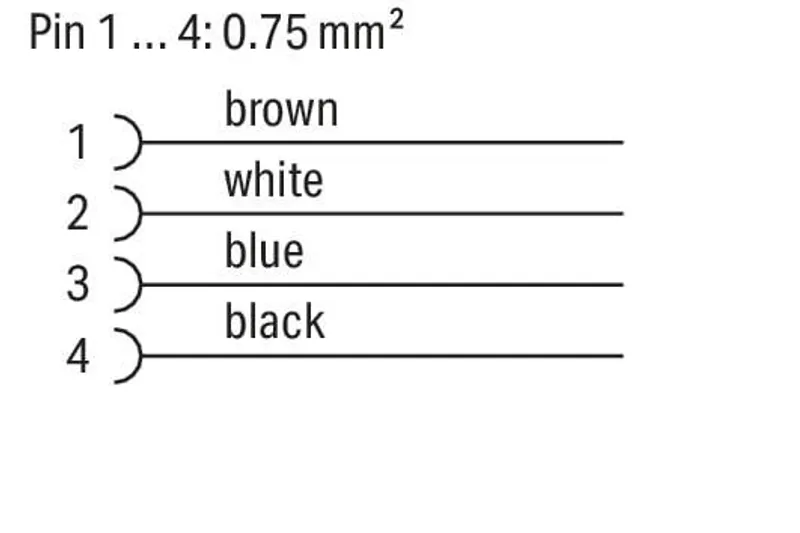

| Type code | Lif9YH-11YH 4x0.75 mm2 |
| Conductor configuration | Bare copper wire (40 x 0.15 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Housing material | TPU/TPU, black (~ RAL 9005) |
| Tightening torque | 1 Nm |
| Weight | 1100.1 g |
Environmental requirements
| Ambient (operating) temperature (dynamic) | -30 … +80 °C |
| Ambient (operating) temperature (static) | -30 … +80 °C |
| Protection type | IP67 |
| Pollution degree | 3/2 per IEC 60664-1 |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454772413 |
| Customs tariff number | 85444290900 |
| End of Sale | 2024-05-01 |
| End of Production | 2024-05-15 |
| End of Delivery | 2024-06-01 |
| End of Service and Repair | 2025-06-01 |
| Support period for security updates | 2029-07-01 |
Product Classification
| UNSPSC | 26121629 |
| eCl@ss 10.0 | 27-06-18-01 |
| eCl@ss 9.0 | 27-06-18-01 |
| ETIM 9.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | d2153dab-6961-4b21-8a1b-ab8d11b77785 |
| SCIP notification number (Belgium) | 69bfe8b6-e3ca-44f5-b798-2fb45fffe9c3 |
| SCIP notification number (Bulgaria) | 7e734ccb-56f2-4684-a1a8-ab3da79c3035 |
| SCIP notification number (Czech Republic) | 10085e9f-00b7-486f-a28e-4604b4ad153a |
| SCIP notification number (Denmark) | a3bad59b-f9d0-4993-8b38-fe6926a31e2b |
| SCIP notification number (Finland) | 2a1c7b5f-1411-4758-b530-094c1b6565fd |
| SCIP notification number (France) | 5bc92601-464c-437c-ba7a-1ec83aab7381 |
| SCIP notification number (Germany) | b6953a91-e0ff-4bfa-b5be-c5c399e88742 |
| SCIP notification number (Hungary) | a05d8db1-ee3b-473d-afa1-1f4594772460 |
| SCIP notification number (Italy) | 1cdc4d1c-7282-4c7b-bc75-913046f0e4da |
| SCIP notification number (Netherlands) | fb84179f-2424-40a0-adb4-aece9323a425 |
| SCIP notification number (Poland) | 7eb1942a-aee2-47ca-a612-7535b45218d9 |
| SCIP notification number (Romania) | f976fa38-c47e-428e-b38a-e5bd921bd1d0 |
| SCIP notification number (Sweden) | 10c9ec7b-592a-4071-a154-a42453083f8c |
No matching specifications
756-3101/040-200: frequently asked questions
When can 756-3101/040-200 be shipped?
756-3101/040-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-3101/040-200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-3101/040-200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-3101/040-200, subject to availability and destination.
