Power cable; M12A socket; straight; 4-pole; Length: 2 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-3101/040-020 be shipped?
756-3101/040-020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-3101/040-020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-3101/040-020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-3101/040-020, subject to availability and destination.
<p><b>Short description:</b></p><ul><li>PUR, halogen-free</li><li>UL / CSA</li><li>Suitable for drag chains</li><li>Silicon- and CFC-free</li><li>High resistance to microbes, hydrolysis, oil, chemicals and UV radiation</li><li>High chemical resistance</li><li>Cable used: UL listed</li></ul>
Specifications
Technical data

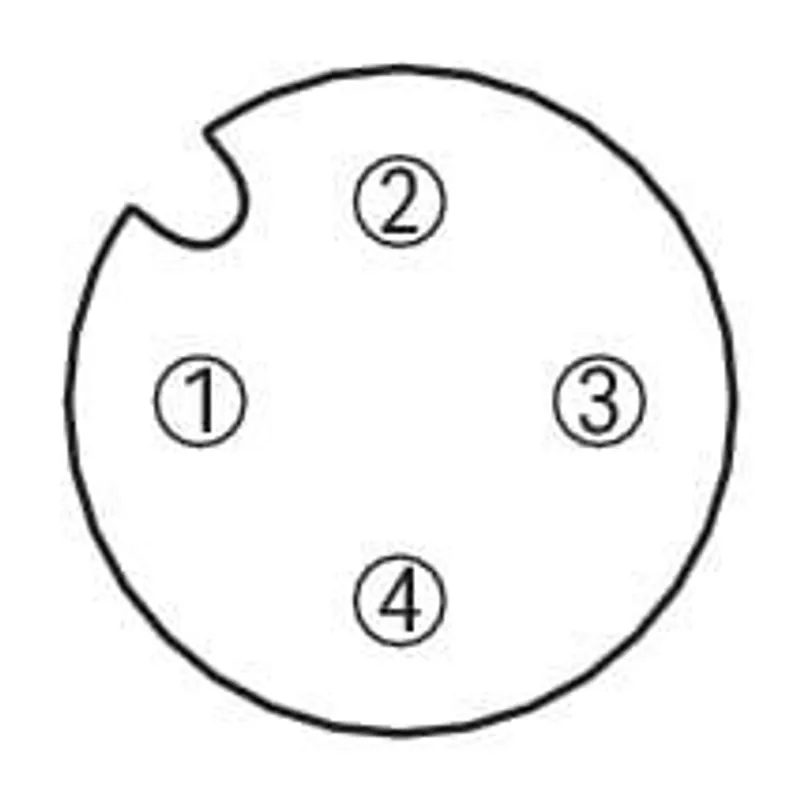

| Connection type | M12 socket - free end |
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Cable length | 2 m |
| PLC manufacturer | WAGO |
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Contact resistance | 10 mΩ |
| Insulation resistance | >109 Ω |
| Conductor resistance | ≤ 26 Ω/km |
Mechanical data
| Bending radius | 10 x cable diameter (min.) for flexible application |
| Bending cycles | 4 Mio. |
| Drag chain capability | yes |

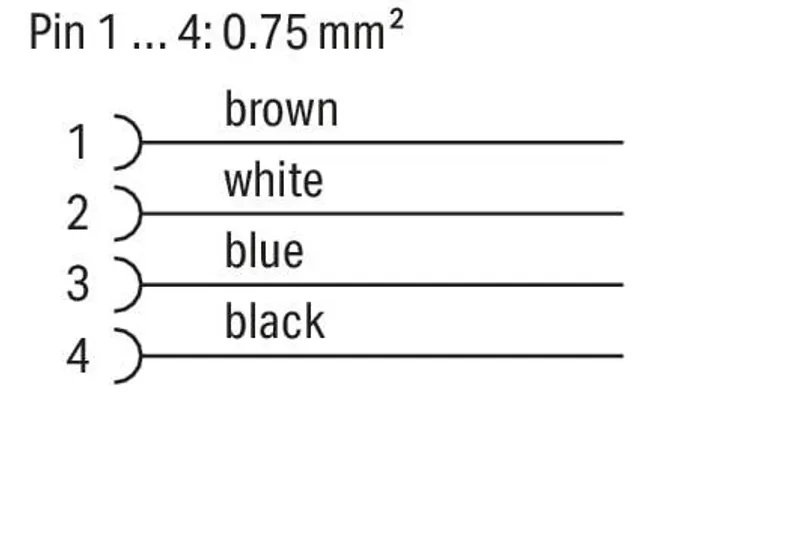

| Type code | Lif9YH-11YH 4x0.75 mm2 |
| Conductor configuration | Bare copper wire (40 x 0.15 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Housing material | TPU/TPU, black (~ RAL 9005) |
| Tightening torque | 1 Nm |
| Weight | 130 g |
Environmental requirements
| Ambient (operating) temperature (dynamic) | -30 … +80 °C |
| Ambient (operating) temperature (static) | -30 … +80 °C |
| Protection type | IP67 |
| Pollution degree | 3/2 per IEC 60664-1 |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454772383 |
| Customs tariff number | 85444290900 |
| End of Sale | 2024-05-01 |
| End of Production | 2024-05-15 |
| End of Delivery | 2024-06-01 |
| End of Service and Repair | 2025-06-01 |
| Support period for security updates | 2029-07-01 |
Product Classification
| UNSPSC | 26121629 |
| eCl@ss 10.0 | 27-06-18-01 |
| eCl@ss 9.0 | 27-06-18-01 |
| ETIM 9.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
