Wago 750-363/040-000
Fieldbus Coupler EtherNet/IP; 4th generation; Extreme
- MPN
- 750-363/040-000
- Category
- I/O Systems
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 750-363/040-000?
The 750-363/040-000 EtherNet/IP TM Fieldbus Coupler connects the EtherNet/IP TM fieldbus system to the modular WAGO I/O System.
The fieldbus coupler detects all connected I/O modules and creates a local process image.

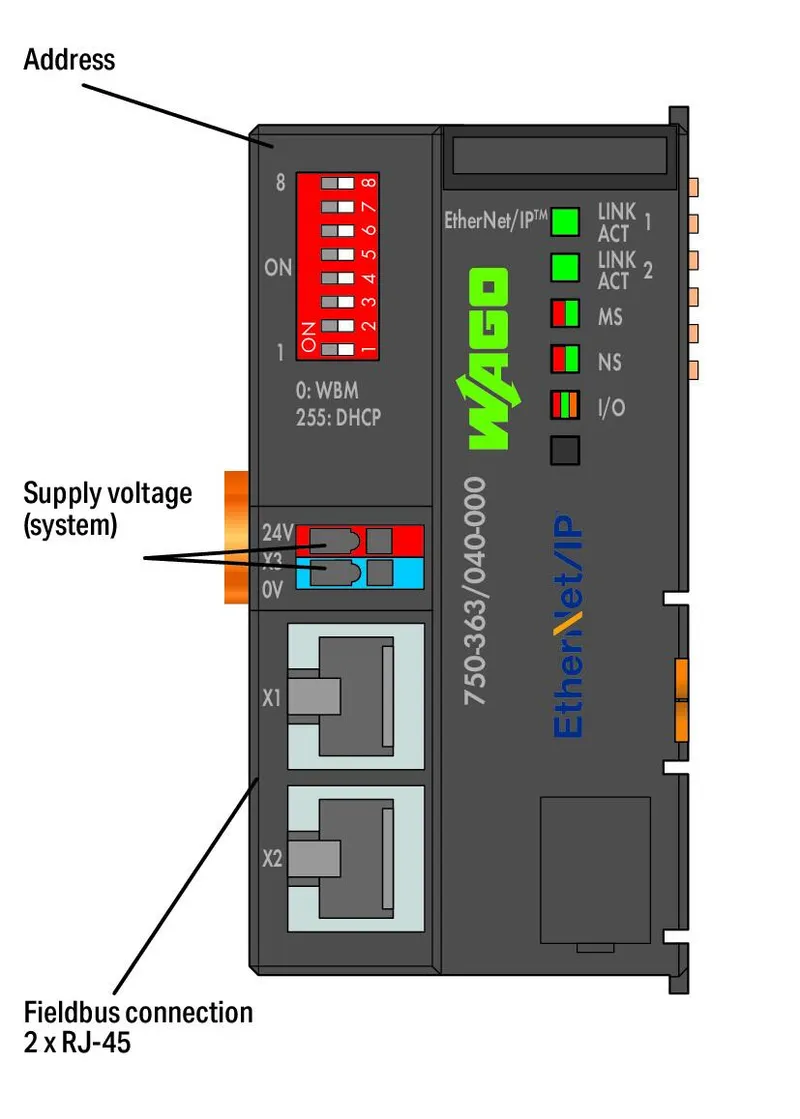

Two ETHERNET interfaces and an integrated switch allow the fieldbus to be wired in a line topology, eliminating the need for additional network devices, such as switches or hubs.
Both interfaces support autonegotiation and Auto-MDI(X).
The DIP switch configures the last byte of the IP address and may be used for IP address assignment (DHCP, BootP, static).
The coupler is designed for fieldbus communication in EtherNet/IP TM networks. It also supports a wide variety of standard ETHERNET protocols (e.g., HTTP(S), BootP, DHCP, DNS, SNMP, (S)FTP).
An integrated Webserver provides user configuration options, while displaying the coupler's status information.
The system supply is provided directly by the coupler. The field supply is provided via a separate supply module.
The device is ideal for operation in extreme environments thanks to:
An extended temperature range
Greater immunity to impulse voltages and electromagnetic interference
Higher vibration and shock resistance
Specifications
Technical data
| Communications | EtherNet/IPTM, EtherNet/IPTM |
| ETHERNET protocols | HTTP(S), BootP, DHCP, DNS, SNTP, FTP(S), SNMP |
| Transmission rate | 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Transmission performance | Class D per EN 50173 |
| Number of modules per node (max.) | 64 |
| Number of modules without a bus extension (max.) | 64 |
| Input and output process image (fieldbus) max. | 1020 words/1020 words |
| Supply voltage (system) | 24 VDC; via pluggable connector (CAGE CLAMP® connection); Derating must be observed! |
| Current consumption (5 V system supply) | 350 mA |
| Total current (system supply) | 700 mA |
| Input current (typ.) at nominal load (24 V) | 280 mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90 % |
| Rated impulse withstand voltage | 1 kV |
| Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (-25 … +30 %);for -40 … +55 °C: 24 V (-25 … +20 %);for +55 … +70 °C: 24 V (-25 … +10 %);Lower limit in all temperature ranges: -27.5 % (including 15 % residual ripple) |
Connection data
| Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45 |
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | System supply |
| Solid conductor | 0.25 … 1.5 mm² / 24 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 24 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole |
Physical data
| Width | 49.5 mm / 1.949 inches |
| Height | 96.8 mm / 3.811 inches |
| Depth | 71.9 mm / 2.831 inches |
| Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
Mechanical data
| Mounting type | DIN-35 rail |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.38 MJ |
| Weight | 103.9 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Ambient temperature (installation) | -20 … +70 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | According to type test for marine classification (ABS, BV, DNV, IACS, LR): acceleration: 5g, IEC 60068-2-6, EN 60870-2-2, IEC 60721-3-1, -3, EN 50155, EN 61373 |
| Shock resistance | per IEC 60068-2-27 (10g/16 ms/half-sine/1,000 shocks; 25g/6 ms/half-sine/1,000 shocks), EN 50155, EN 61373 |
| EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
| EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143978286 |
| Customs tariff number | 85371091990 |
Product Classification
| UNSPSC | 32151705 |
| ETIM 9.0 | EC001603 |
| ETIM 10.0 | EC001603 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide, Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 14f0d494-00a6-4374-aac8-7489f75aec50 |
| SCIP notification number (Belgium) | 56ad916e-cef9-4276-9bdc-5e1529c22d5b |
| SCIP notification number (Bulgaria) | cb963eaa-2794-4ed3-9ecb-e62922328822 |
| SCIP notification number (Czech Republic) | 01e81def-ccf6-47c5-86b5-9bf06c4d7cd4 |
| SCIP notification number (Denmark) | 2716f5cf-70e0-498d-8092-97cf23c84bad |
| SCIP notification number (Finland) | 0eca8c06-31d3-4e46-8c97-0c17fb21a654 |
| SCIP notification number (France) | f23bfcbf-e644-497d-9add-93f30b0468fd |
| SCIP notification number (Germany) | 071e2f8c-e40d-4154-8b6c-34ce333bfac6 |
| SCIP notification number (Hungary) | 2f06ef12-3362-44bf-b5c4-8d3bae4fa5db |
| SCIP notification number (Italy) | 179ffb4b-5ea4-4664-9c69-18d08db9c0b9 |
| SCIP notification number (Netherlands) | 7bc4ab68-d58d-4c24-ab80-3eb8fcef6905 |
| SCIP notification number (Poland) | e1267802-21d6-4966-a80e-beb2d7ace044 |
| SCIP notification number (Romania) | 8a091b57-7056-4ef4-a6fd-b57d08bdce33 |
| SCIP notification number (Sweden) | dacbeb64-9eb6-4ed3-b97f-414ef44f957d |
