Wago 706-753/300-100

Connection cable; 14-pole; Pluggable connector per DIN 41651; 14-pole; Pluggable connector per DIN 41651; Length: 1 m (1 MOhm); Conductor cross-section: 0.14 mm²

MPN
706-753/300-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-753/300-100?

Short description:

WAGO's 14-pole interface cables transmit the signal one-to-one from the 14-pole connector and are available in 1-, 2- and 3-meter lengths.

These cables are suitable for system wiring when paired with 857-981 and 857-982 Interface Adapters.

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical data

Operating voltage≤ 35 VAC/VDC
Current per wire (max.)1 A

Connection data

Cable typeLiYY

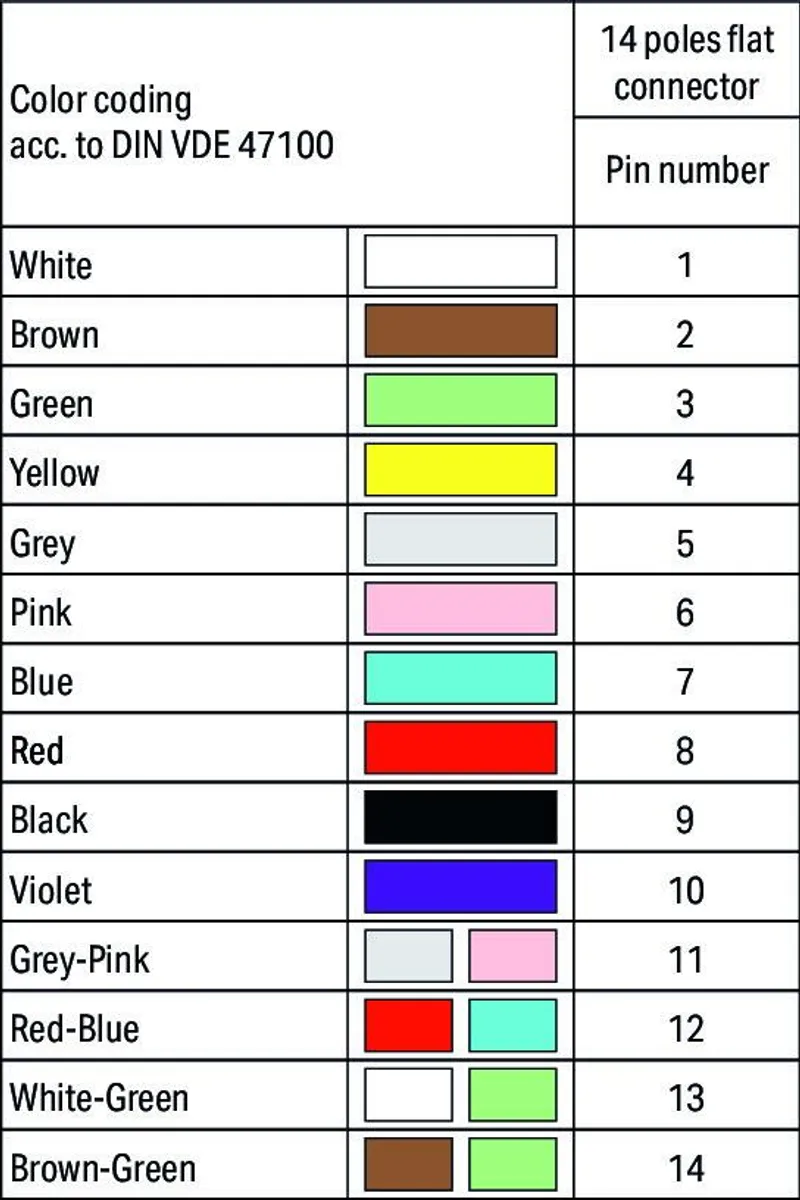

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; female connector
Pole number 114
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 2

ConnectorPluggable connector per DIN 41651; female connector
Pole number14
Connection typeSystem
Wire cross-section0.14 mm²

Physical data

Cable length1 m

Material data

Weight59 g

Environmental requirements

Ambient temperature (operation)-25 … +70 °C

Commercial data

Product Group30 (WAGO France)
PU (SPU)1 pcs
Packaging typebox
Country of originFR
GTIN4050821038870
Customs tariff number85444290900

Product Classification

UNSPSC26121604
eCl@ss 10.027-06-03-11
eCl@ss 9.027-06-03-11
ETIM 9.0EC001855
ETIM 10.0EC001855
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption

706-753/300-100: frequently asked questions

When can 706-753/300-100 be shipped?

706-753/300-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 706-753/300-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 706-753/300-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-753/300-100, subject to availability and destination.
