Wago 706-6001/300-300

System cable; for Omron CJ1W; 2 x 16 digital inputs or outputs; Length: 3 m; Conductor cross-section: 0.14 mm²

MPN
706-6001/300-300
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-6001/300-300?

System cable; for Omron CJ1W; 2 x 16 digital inputs or outputs; Length: 3 m; Conductor cross-section: 0.14 mm² 706-6001/300-300

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical data

Inputs/outputs2 x 16 digital inputs or outputs
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)1 A

Compatibility - Omron

Omron CJ1WCJ1W-ID232, CJ1W-ID262, CJ1W-OD232, CJ1W-OD262

Connection data

Cable typeLiYY

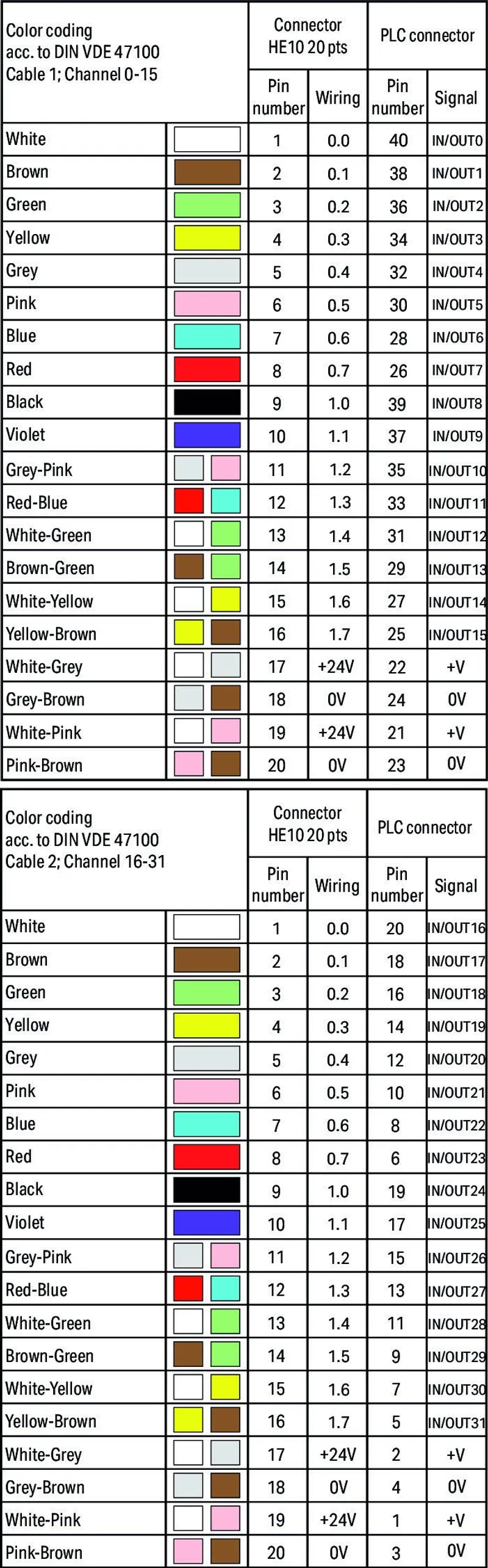

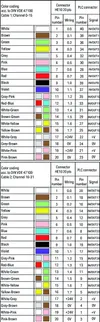

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; female connector
Pole number 120
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 2

ConnectorPluggable connector per DIN 41651; female connector
Pole number20
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 3

ConnectorPluggable connector per DIN 41651; female connector
Pole number40
Connection typeSystem

Physical data

Cable length3 m

Material data

Weight480 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebag
Country of originFR
GTIN4055143661560
Customs tariff number85444290900

Product Classification

UNSPSC26121629
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption

706-6001/300-300: frequently asked questions

When can 706-6001/300-300 be shipped?

706-6001/300-300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 706-6001/300-300 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 706-6001/300-300 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-6001/300-300, subject to availability and destination.
