Wago 706-3340/200-300

System cable; for Schneider Modicon M340; 16 digital outputs for higher voltages; Length: 3 m; Conductor cross-section: 0.34 mm²

MPN
706-3340/200-300
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-3340/200-300?

System cable; for Schneider Modicon M340; 16 digital outputs for higher voltages; Length: 3 m; Conductor cross-section: 0.34 mm² 706-3340/200-300

Specifications

Notes

NoteIf less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L.

Electrical data

Inputs/outputs16 digital outputs; for higher voltages
Operating voltage≤ 250 VAC/VDC
Current per wire (max.)0.75 A

Compatibility - Schneider

Schneider Modicon M340BMX DAO 1605

Connection data

Cable typeLiYY

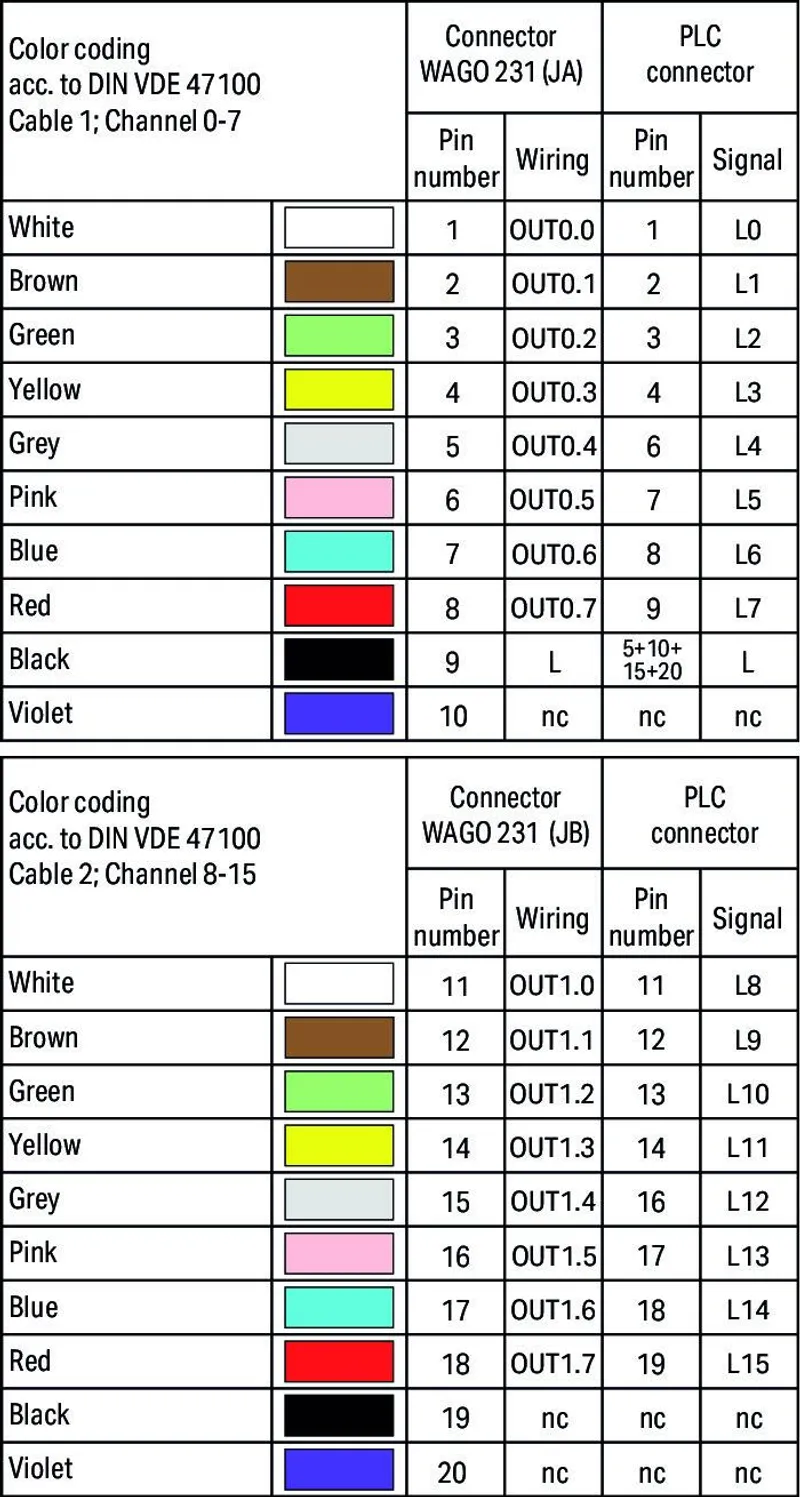

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorWAGO 231 Series
Pole number 110
Connection typeSystem
Wire cross-section0.34 mm²

Connection data - Connection 2

ConnectorWAGO 231 Series
Pole number10
Connection typeSystem
Wire cross-section0.34 mm²

Connection data - Connection 3

ConnectorSchneider BMXFTB2020
Pole number20
Connection typeSystem

Physical data

Cable length3 m

Material data

Weight639 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typeBox
Country of originFR
GTIN4055143147606

Product Classification

UNSPSC26121629
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
