System cable; for Schneider Modicon Quantum; 4 analog outputs; Length: 2 m; Conductor cross-section: 0.25 mm²
System cable; for Schneider Modicon Quantum; 8 analog outputs; Length: 3 m; Conductor cross-section: 0.25 mm²
System cable; for Schneider Modicon Quantum; 8 analog outputs; Length: 3 m; Conductor cross-section: 0.25 mm² 706-3140/501-300
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 1 A. |
| Inputs/outputs | 8 analog outputs |
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 2 A |
| Schneider Modicon Quantum | 140 ACO 130 00 |
| Cable type | LiYCY |

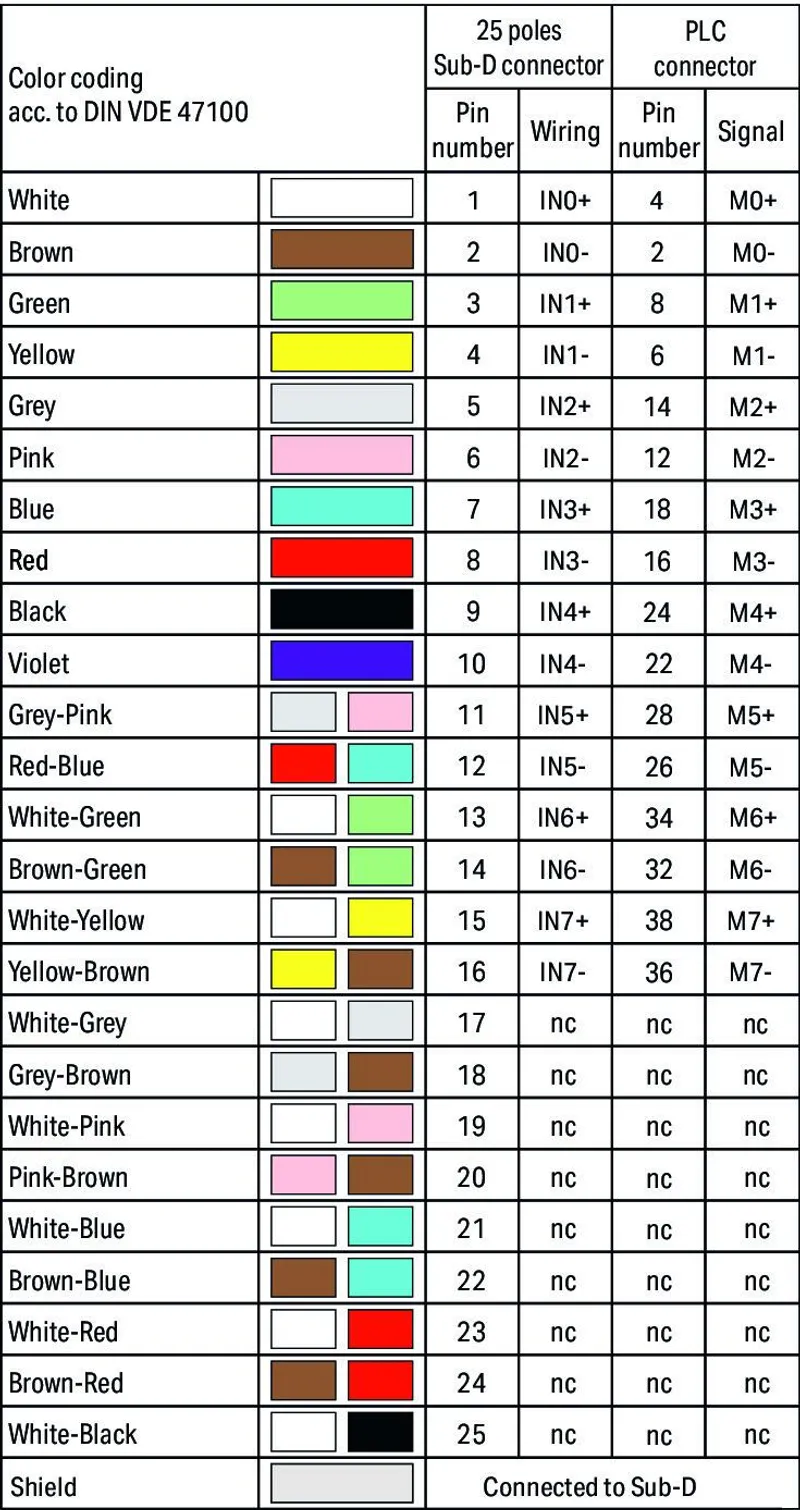

| Color code | per DIN VDE 47100 |
| Pluggable connector | D-subminiature female connector |
| Pole number 1 | 25 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
| Connector | Schneider 140XTS00200 |
| Pole number | 40 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
| Cable length | 3 m |
| Weight | 541 g |
| Ambient temperature (operation) | -20 … +50 °C |
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | FR |
| GTIN | 4050821301721 |
| UNSPSC | 26121629 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
