Wago 706-3057/203-100

System cable; for Schneider TSX; 8 digital outputs for higher voltages, var. 1; Length: 1 m; Conductor cross-section: 0.34 mm²

MPN
706-3057/203-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-3057/203-100?

System cable; for Schneider TSX; 8 digital outputs for higher voltages, var. 1; Length: 1 m; Conductor cross-section: 0.34 mm² 706-3057/203-100

Specifications

Notes

NoteIf less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L.

Electrical data

Inputs/outputs8 digital outputs; for higher voltages
Operating voltage≤ 250 VAC/VDC
Current per wire (max.)0.75 A

Compatibility - Schneider

Schneider TSXTSX DSY 08T22, TSX DSY 08T31

Connection data

Cable typeLiYY

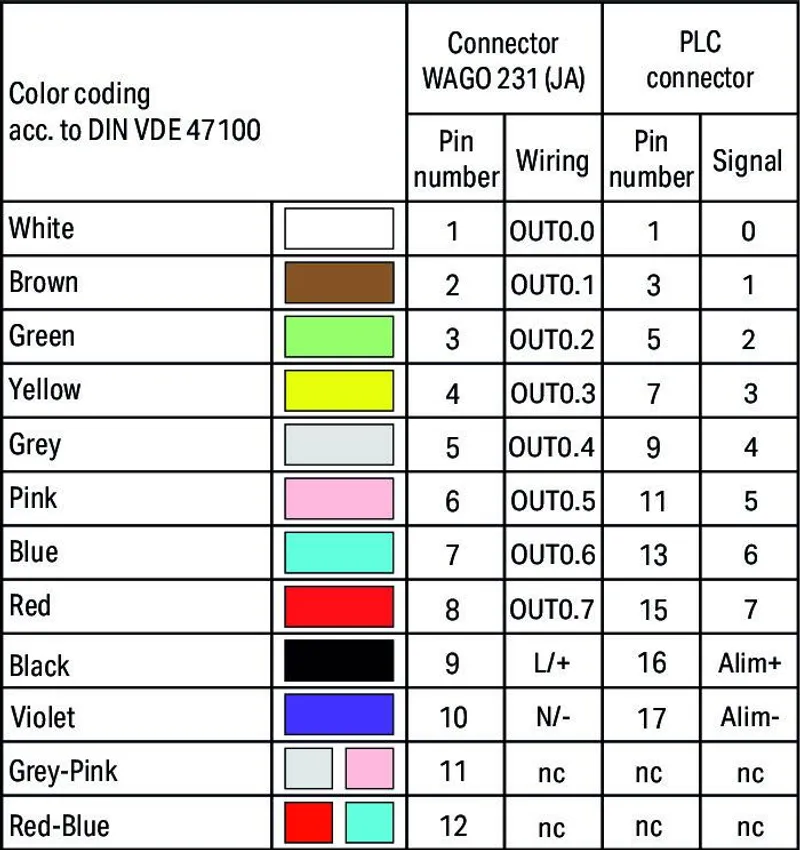

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorWAGO 231 Series
Pole number 110
Connection typeSystem
Wire cross-section0.34 mm²

Connection data - Connection 2

ConnectorSchneider TSXBLY01
Pole number20
Connection typeSystem
Wire cross-section0.34 mm²

Physical data

Cable length1 m

Material data

Weight223 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebag
Country of originFR
GTIN4055143980043
Customs tariff number85444290900

Product Classification

UNSPSC26121604
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
