System cable; for Schneider TSX; 8 digital outputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm² 706-3057/202-200
| Note | If less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. |
| Inputs/outputs | 8 digital inputs; for higher voltages |
| Operating voltage | ≤ 250 VAC/VDC |
| Current per wire (max.) | 0.75 A |
| Schneider TSX | TSX DSY 08S5 |
| Cable type | LiYY |

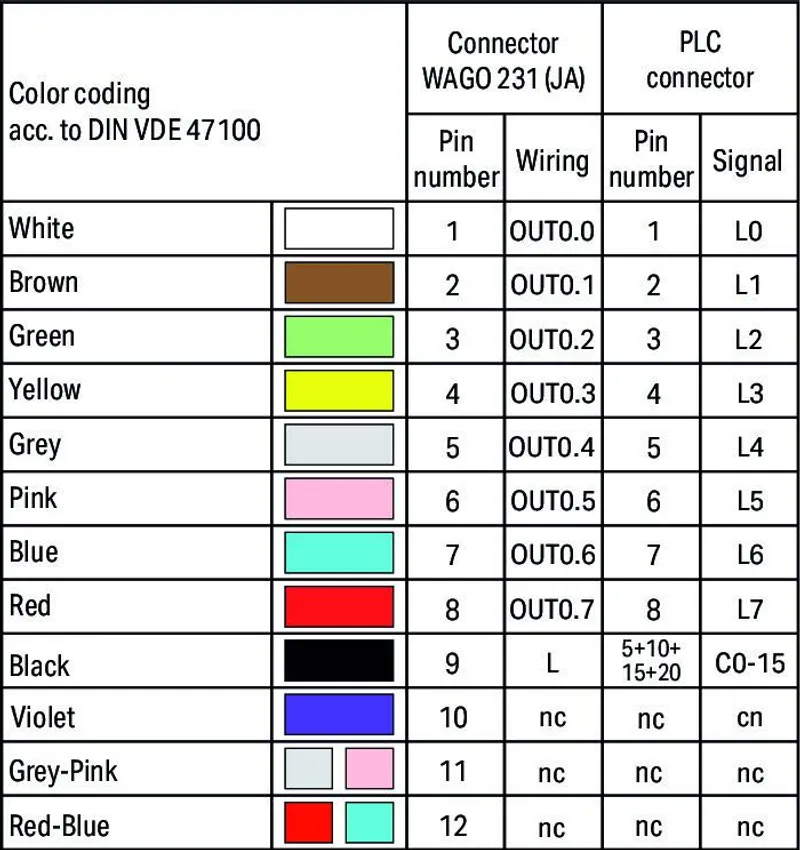

| Color code | per DIN VDE 47100 |
| Pluggable connector | WAGO 231 Series |
| Pole number 1 | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
| Connector | Schneider TSXBLY01 |
| Pole number | 20 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
| Cable length | 2 m |
| Weight | 446 g |
| Ambient temperature (operation) | -20 … +50 °C |
| PU (SPU) | 1 pcs |
| Packaging type | bag |
| Country of origin | FR |
| GTIN | 4055143980036 |
| Customs tariff number | 85444290900 |
| UNSPSC | 26121629 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
No matching specifications
706-3057/202-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for 706-3057/202-200 and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-3057/202-200, subject to availability and destination.
