Wago 706-2300/209-300

System cable; for Siemens S7-300; 16 digital outputs, var. 1; Length: 3 m; Conductor cross-section: 0.14 mm²

MPN
706-2300/209-300
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-2300/209-300?

System cable; for Siemens S7-300; 16 digital outputs, var. 1; Length: 3 m; Conductor cross-section: 0.14 mm² 706-2300/209-300

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical data

Inputs/outputs16 digital outputs
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)1 A

Compatibility - Siemens

Siemens S7-3006ES7 322-8BH01/8BH10-0AB0

Connection data

Cable typeLiYY

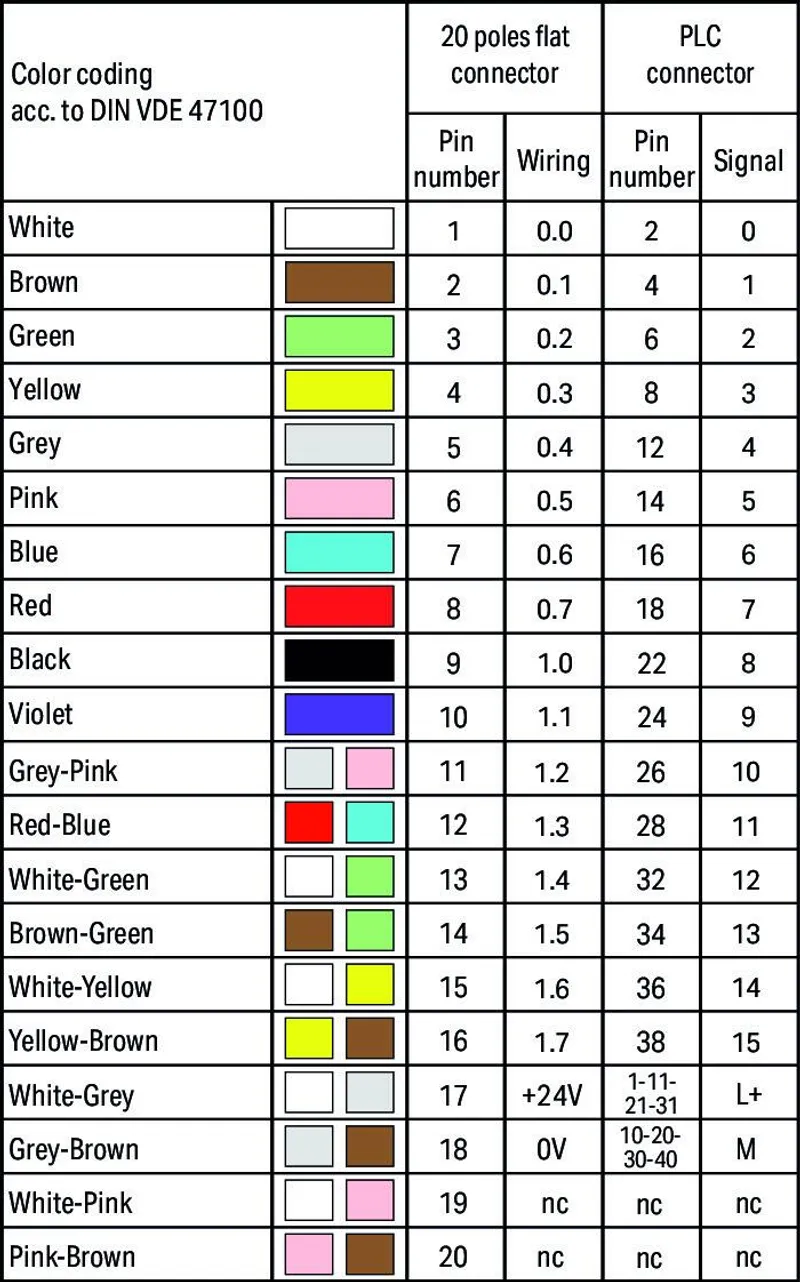

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; female connector
Pole number 120
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 2

ConnectorSiemens 6ES7-392-1BM00-0AA0
Pole number40
Connection typeSystem
Wire cross-section0.14 mm²

Physical data

Cable length3 m

Material data

Weight1.1 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebox
Country of originFR
GTIN4050821861843

Product Classification

UNSPSC26121629
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
