Wago 706-2300/205-200

System cable; for Siemens S7-300; 8 digital outputs for higher voltages with 2 lines per signal; Length: 2 m; Conductor cross-section: 0.14 mm²

MPN
706-2300/205-200
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-2300/205-200?

System cable; for Siemens S7-300; 8 digital outputs for higher voltages with 2 lines per signal; Length: 2 m; Conductor cross-section: 0.14 mm² 706-2300/205-200

Specifications

Notes

NoteIf less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L.

Electrical data

Inputs/outputs8 digital outputs; for higher voltages
Operating voltage≤ 250 VAC/VDC
Current per wire (max.)0.75 A

Compatibility - Siemens

Siemens S7-3006ES7 322-1HF10-0AA0

Connection data

Cable typeLiYY

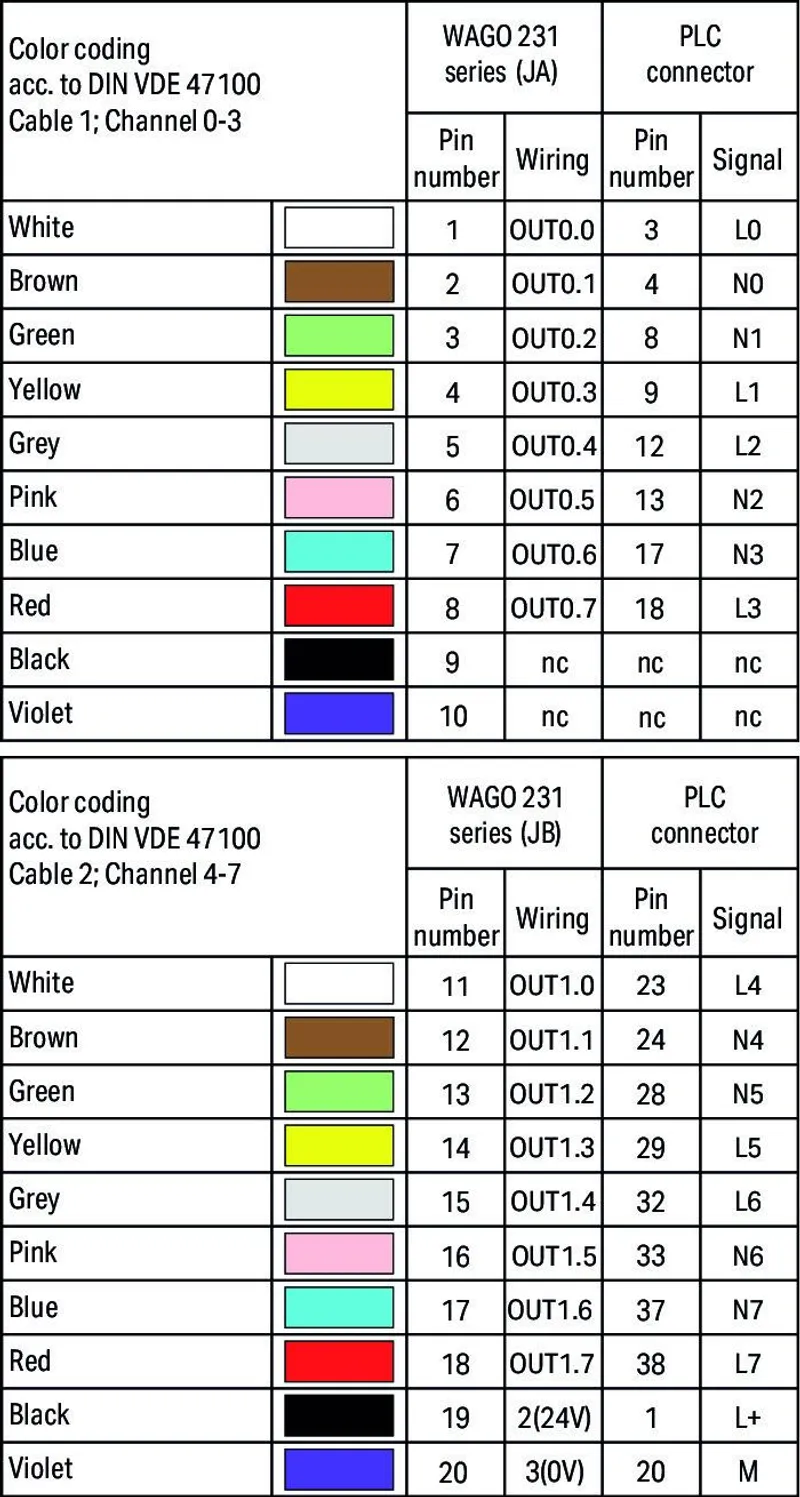

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorWAGO 231 Series
Pole number 110
Connection typeSystem
Wire cross-section0.34 mm²

Connection data - Connection 2

ConnectorWAGO 231 Series
Pole number10
Connection typeSystem
Wire cross-section0.34 mm²

Connection data - Connection 3

ConnectorSiemens 6ES7-392-1BM00-0AA0
Pole number40
Connection typeSystem

Physical data

Cable length2 m

Material data

Weight1.1 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebox
Country of originFR
GTIN4045454880309

Product Classification

UNSPSC26121629
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption

706-2300/205-200: frequently asked questions

When can 706-2300/205-200 be shipped?

706-2300/205-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 706-2300/205-200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 706-2300/205-200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-2300/205-200, subject to availability and destination.
