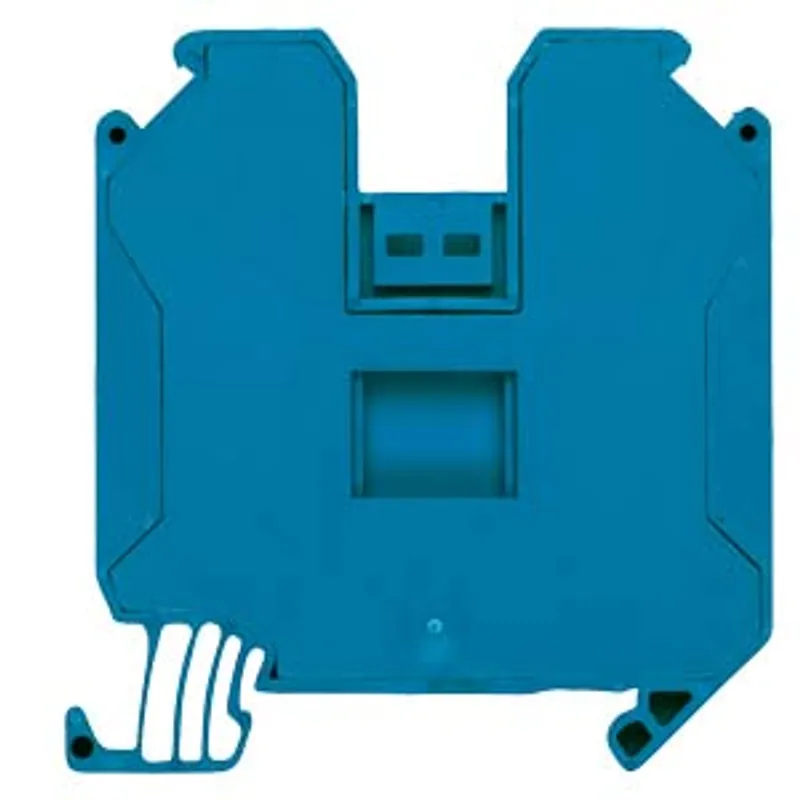

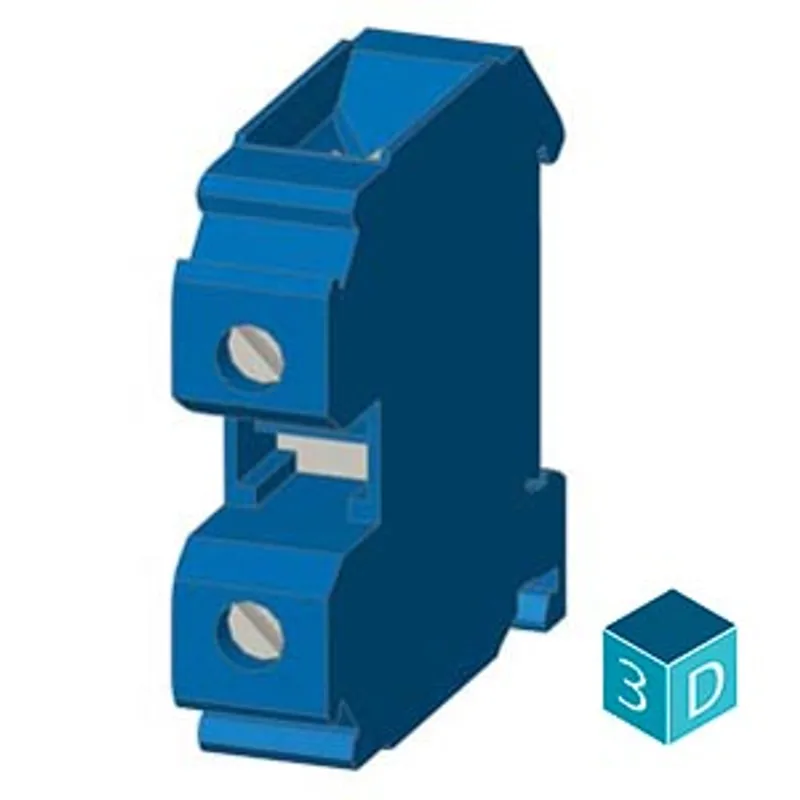

Siemens 8WH1000-0AM01
Terminal, screw terminal, through-type terminal, 35 mm², blue
- MPN
- 8WH1000-0AM01
- Category
- SENTRON 8WH1 Screw Terminals
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH1000-0AM01?
Terminal, screw terminal, through-type terminal, 35 mm², blue
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | through-type terminal |
| product version | through-type terminal, for mounting on mounting rail acc. to IEC 60715 |
| design of terminal terminal levels internally linked | No |
General technical data
| terminal contact spacing | 16 mm |
| operating voltage rated value | 1 000 V |
Protection class
| combustibility class according to UL 94 | V0 |
Main circuit
| operational current rated value | 125 A |
Appearance
| color | blue |
Product details
| product component required end cover plate | No |
Number
| number of terminal levels | 1 |
| number of terminal points per terminal level | 2 |
Connections
| connectable conductor cross-section solid — minimum | 1.5 mm² |
| connectable conductor cross-section solid — maximum | 50 mm² |
| connectable conductor cross-section stranded — minimum | 16 mm² |
| connectable conductor cross-section stranded — maximum | 1.5 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 1.5 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 35 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 1.5 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 50 mm² |
| tightening torque with screw-type terminals — minimum | 3.2 N·m |
| tightening torque with screw-type terminals — maximum | 4 N·m |
| type of connection 1 | screw-type terminal |
| type of connection 2 | screw-type terminal |
| position of the terminal | lateral |
Mechanical Design
| height | 63.2 mm |
| height with lowest-profile installation | 65.7 mm |
| depth | 65 mm |
| length | 60 mm |
| fastening method | TH35 DIN rail |
| Net Weight | 59.5 g |
| material of the insulating body | PA |
Environmental conditions
| ambient temperature during operation — minimum | -60 °C |
| ambient temperature during operation — maximum | 105 °C |
