SENTRON 8WH1 Screw Terminals Parts

Showing 1–18 of 18 parts
Siemens 8WH1000-0AF03 – Terminal, screw terminal, through-type terminal, 2.5 mm², green
Siemens
8WH1000-0AF03

Terminal, screw terminal, through-type terminal, 2.5 mm²

Siemens 8WH1000-0AF02 – Terminal, screw terminal, through-type terminal, 2.5 mm², red
Siemens
8WH1000-0AF02

Terminal, screw terminal, through-type terminal, 2.5 mm²

Siemens 8WH1000-0AF01 – Terminal, screw terminal, through-type terminal, 2.5 mm², blue
Siemens
8WH1000-0AF01

Terminal, screw terminal, through-type terminal, 2.5 mm²

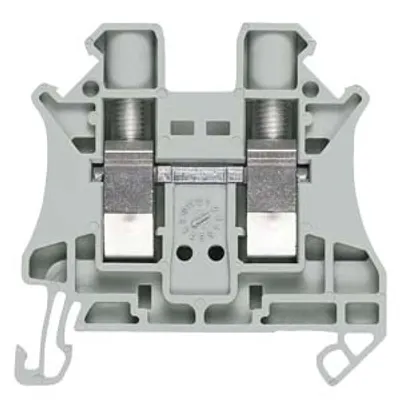

Siemens 8WH1000-0AF00 – Terminal, screw terminal, through-type terminal, 2.5 mm², gray
Siemens
8WH1000-0AF00

Terminal, screw terminal, through-type terminal, 2.5 mm²

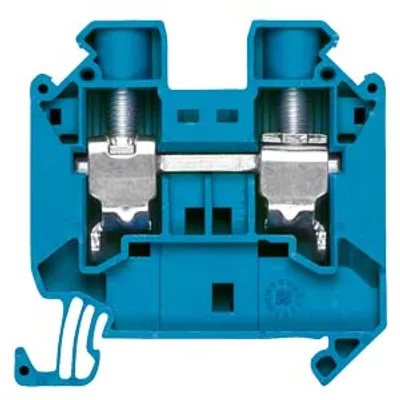

Siemens 8WH1000-0AK01 – Terminal, screw terminal, through-type terminal, 16 mm², blue
Siemens
8WH1000-0AK01

Terminal, screw terminal, through-type terminal, 16 mm²

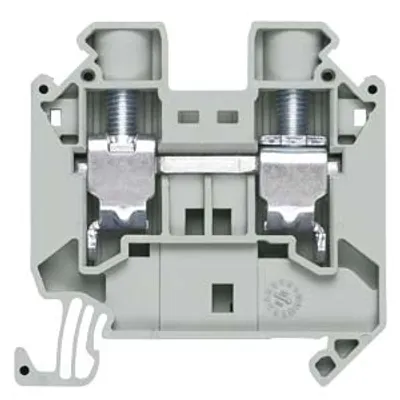

Siemens 8WH1000-0AK00 – Terminal, screw terminal, through-type terminal, 16 mm², gray
Siemens
8WH1000-0AK00

Terminal, screw terminal, through-type terminal, 16 mm²

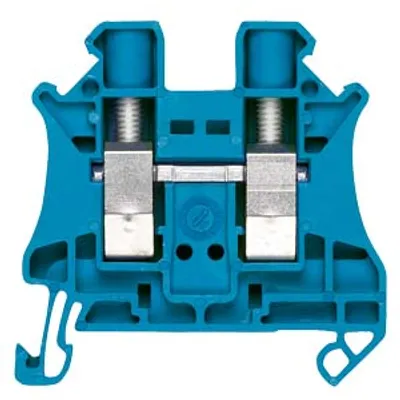

Siemens 8WH1000-0AJ01 – Terminal, screw terminal, through-type terminal, 10 mm², blue
Siemens
8WH1000-0AJ01

Terminal, screw terminal, through-type terminal, 10 mm²

Siemens 8WH1000-0AJ00 – Terminal, screw terminal, through-type terminal, 10 mm², gray
Siemens
8WH1000-0AJ00

Terminal, screw terminal, through-type terminal, 10 mm²

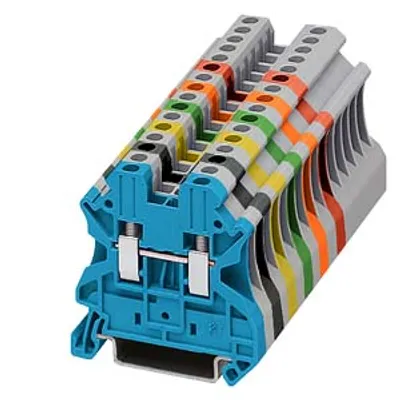

Siemens 8WH1000-0AH08 – Terminal, screw terminal, through-type terminal, 6 mm², black
Siemens
8WH1000-0AH08

Terminal, screw terminal, through-type terminal, 6 mm²

Siemens 8WH1000-0AH02 – Terminal, screw terminal, through-type terminal, 6 mm², red
Siemens
8WH1000-0AH02

Terminal, screw terminal, through-type terminal, 6 mm², red

Siemens 8WH1000-0AH01 – Terminal, screw terminal, through-type terminal, 6 mm², blue
Siemens
8WH1000-0AH01

Terminal, screw terminal, through-type terminal, 6 mm², blue

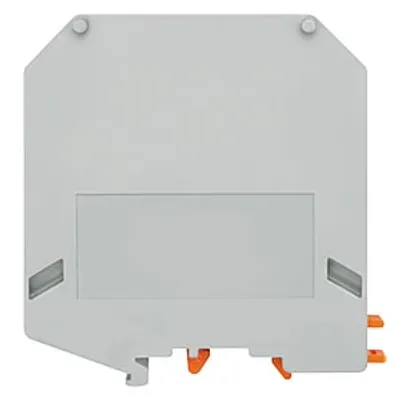

Siemens 8WH1000-0AQ00 – Terminal, screw terminal, through-type terminal, 95 mm², gray
Siemens
8WH1000-0AQ00

Terminal, screw terminal, through-type terminal, 95 mm²

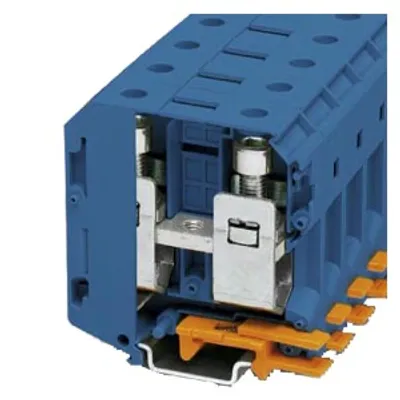

Siemens 8WH1000-0AP01 – Terminal, screw terminal, through-type terminal, 70 mm², blue
Siemens
8WH1000-0AP01

Terminal, screw terminal, through-type terminal, 70 mm²

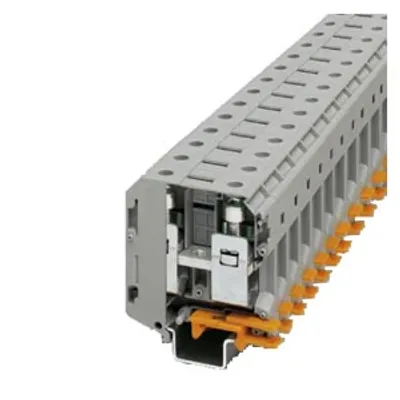

Siemens 8WH1000-0AP00 – Terminal, screw terminal, through-type terminal, 70 mm², beige
Siemens
8WH1000-0AP00

Terminal, screw terminal, through-type terminal, 70 mm²

Siemens 8WH1000-0AN01 – Terminal, screw terminal, through-type terminal, 50 mm², blue
Siemens
8WH1000-0AN01

Terminal, screw terminal, through-type terminal, 50 mm²

Siemens 8WH1000-0AN00 – Terminal, screw terminal, through-type terminal, 50 mm², gray
Siemens
8WH1000-0AN00

Terminal, screw terminal, through-type terminal, 50 mm²

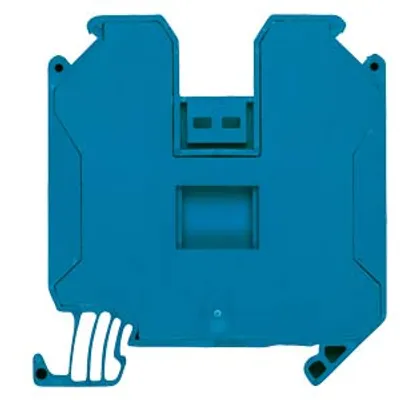

Siemens 8WH1000-0AM01 – Terminal, screw terminal, through-type terminal, 35 mm², blue
Siemens
8WH1000-0AM01

Terminal, screw terminal, through-type terminal, 35 mm²

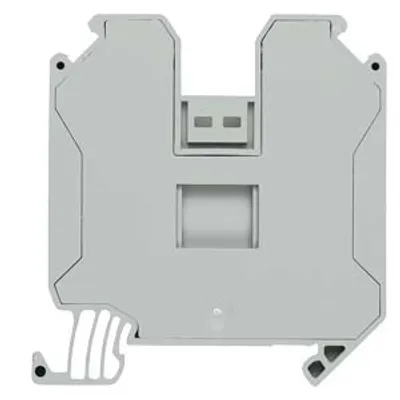

Siemens 8WH1000-0AM00 – Terminal, screw terminal, through-type terminal, 35 mm², gray
Siemens
8WH1000-0AM00

Terminal, screw terminal, through-type terminal, 35 mm²

Compare SENTRON 8WH1 Screw Terminals

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNoperational current rated valueconnectable conductor cross-section stranded — maximumconnectable conductor cross-section finely stranded — with core end processing minimumconnectable conductor cross-section finely stranded — with core end processing maximumNet Weight
8WH1000-0AF0324 A0.14 mm²0.14 mm²2.5 mm²8 g
8WH1000-0AF0224 A0.14 mm²0.14 mm²2.5 mm²8 g
8WH1000-0AF0124 A0.14 mm²0.14 mm²2.5 mm²8 g
8WH1000-0AF0024 A0.14 mm²0.14 mm²2.5 mm²7.8 g
8WH1000-0AK0176 A1 mm²1 mm²16 mm²30 g
8WH1000-0AK0076 A1 mm²1 mm²16 mm²30 g
8WH1000-0AJ0157 A0.5 mm²0.5 mm²10 mm²18 g
8WH1000-0AJ0057 A0.5 mm²0.5 mm²10 mm²17 g
8WH1000-0AH0841 A0.2 mm²0.25 mm²6 mm²14 g
8WH1000-0AH0241 A0.2 mm²0.25 mm²6 mm²14 g
8WH1000-0AH0141 A0.2 mm²0.25 mm²6 mm²14 g
8WH1000-0AQ00232 A25 mm²35 mm²95 mm²215 g
8WH1000-0AP01192 A70 mm²16 mm²70 mm²154 g
8WH1000-0AP00192 A70 mm²16 mm²70 mm²152 g
8WH1000-0AN01150 A10 mm²25 mm²50 mm²122 g
8WH1000-0AN00150 A10 mm²25 mm²50 mm²121 g
8WH1000-0AM01125 A1.5 mm²1.5 mm²35 mm²59.5 g
8WH1000-0AM00125 A1.5 mm²1.5 mm²35 mm²60 g

Common to all listed parts

product designationTerminal blocks
design of the productthrough-type terminal
design of terminal terminal levels internally linkedNo
operating voltage rated value1 000 V
combustibility class according to UL 94V0
number of terminal levels1
number of terminal points per terminal level2
type of connection 1screw-type terminal
