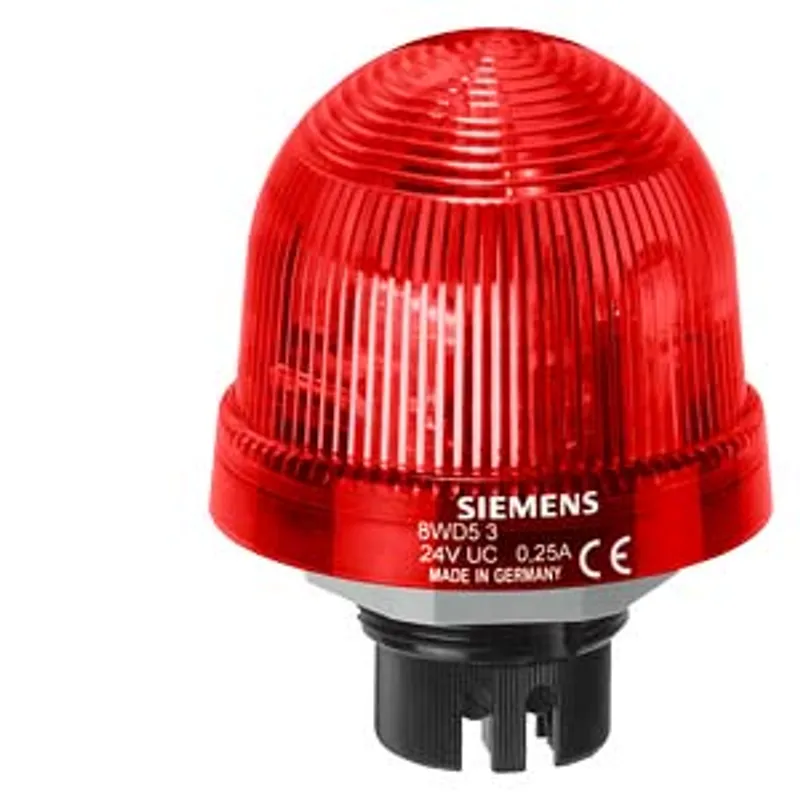

Siemens 8WD5350-0CB
Integrated signal lamp, single flash light, w. built-in electronic flash, red, 230 V AC, Diameter 70 mm
- MPN
- 8WD5350-0CB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD5350-0CB?
Integrated signal lamp, single flash light, w. built-in electronic flash, red, 230 V AC, Diameter 70 mm
Specifications
General technical data
| product designation | Flashlight element |
| consumed current maximum | 35 mA |
| type of voltage of the operating voltage | AC |
| operating voltage — 1 at AC at 50 Hz rated value | 230 V |
| operating voltage — 1 at AC at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 10 % |
| relative negative tolerance of the operating voltage | -10 % |
| reference code according to IEC 81346-2 | P |
| fastening method | Bayonet / flush mounting |
| material | PC; PC/ABS; PA |
| color | red |
Mechanical data
| product component light source | Yes |
| type of electrical connection | screw terminal |
| outer diameter of the signal column element | 75 mm |
Lamp
| design of the optical signal | flash light |
| type of light source | Xenon gas discharge lamp |
| light intensity | 7 806 cd |
| flash frequency | 1 Hz |
| number of flashes of light element | 4 000 000 |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
| protection class IP | IP65 |
| depth | 31 mm |
| height | 66 mm |
| width | 75 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8WD5350-0CB: frequently asked questions
When can 8WD5350-0CB be shipped?
8WD5350-0CB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8WD5350-0CB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8WD5350-0CB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8WD5350-0CB, subject to availability and destination.
