Siemens 8WD5320-5AB

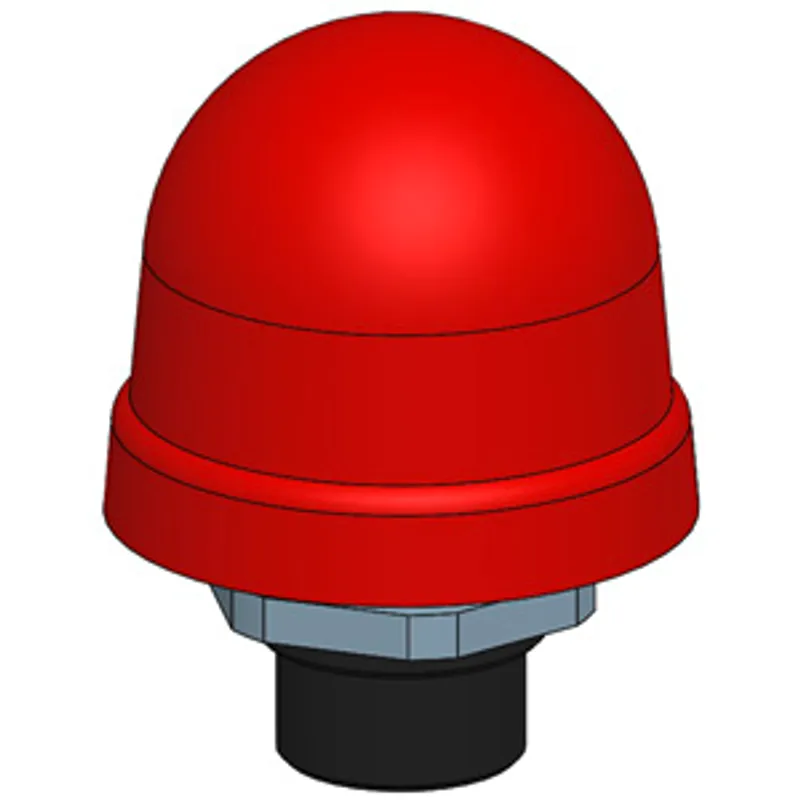

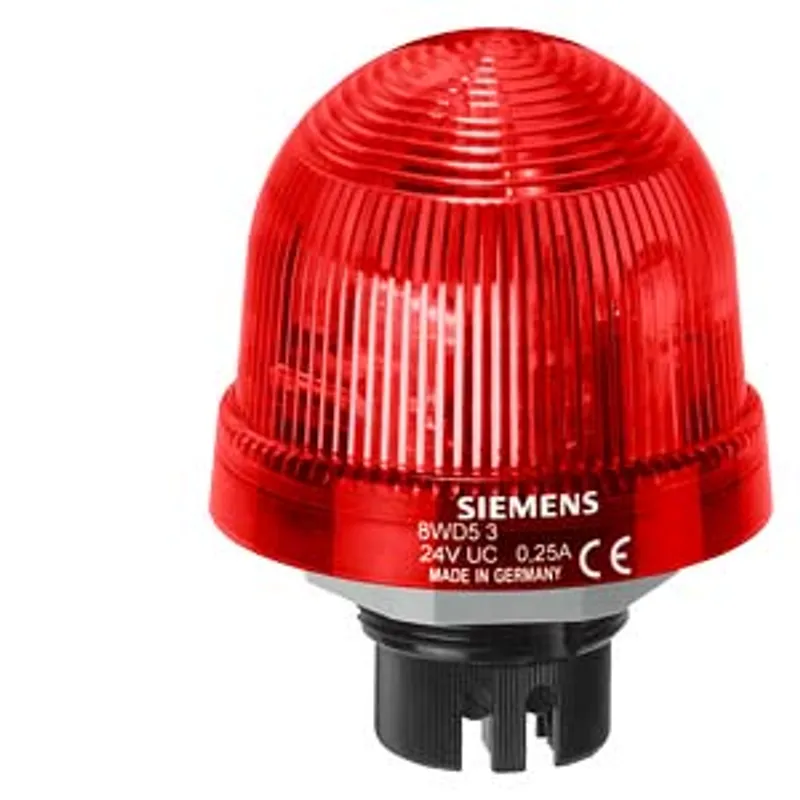

Integrated signal lamp, continuous light, with integrated LED, red, 24 V AC/DC, Diameter 70 mm
- MPN
- 8WD5320-5AB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD5320-5AB?
Integrated signal lamp, continuous light, with integrated LED, red, 24 V AC/DC, Diameter 70 mm
Specifications
General technical data
| product designation | Continuous light element |
| consumed current maximum | 45 mA |
| type of voltage of the operating voltage | AC/DC |
| operating voltage — 1 at DC rated value | 24 V |
| operating voltage — 1 at AC at 50 Hz rated value | 24 V |
| operating voltage — 1 at AC at 60 Hz rated value | 24 V |
| relative positive tolerance of the operating voltage | 10 % |
| relative negative tolerance of the operating voltage | -10 % |

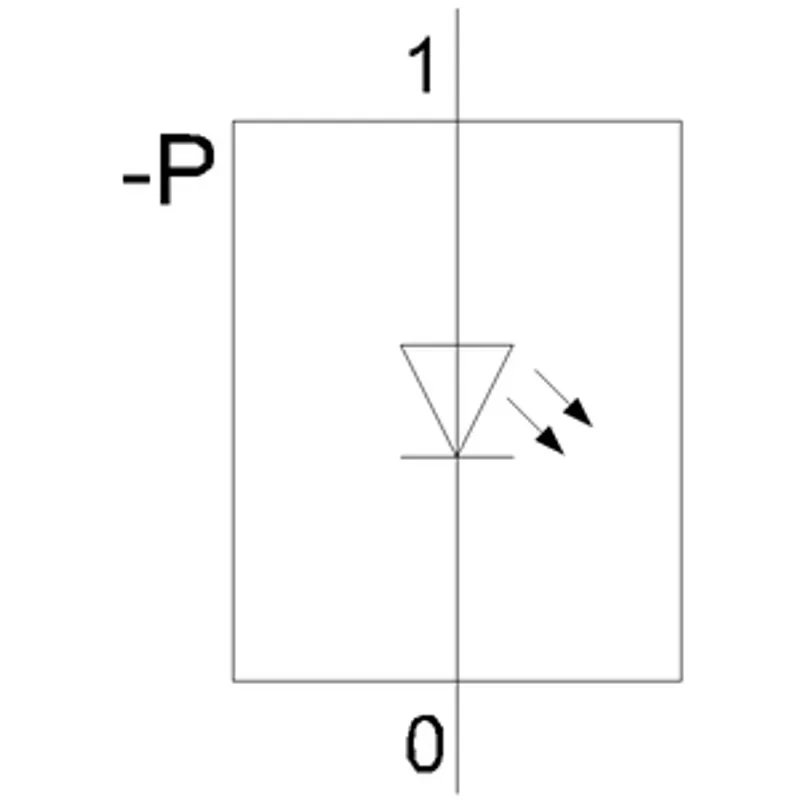

| reference code according to IEC 81346-2 | P |
| fastening method | Bayonet / flush mounting |
| material | PC; PC/ABS; PA |
| color | red |
Mechanical data
| product component light source | Yes |
| type of electrical connection | screw terminal |
| outer diameter of the signal column element | 75 mm |
Lamp
| design of the optical signal | continuous light |
| type of light source | LED |
| light intensity | 2.08 cd |
| light intensity | 1 ... 3.64 cd |
| service life of LED | 100 000 h |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
| protection class IP | IP65 |

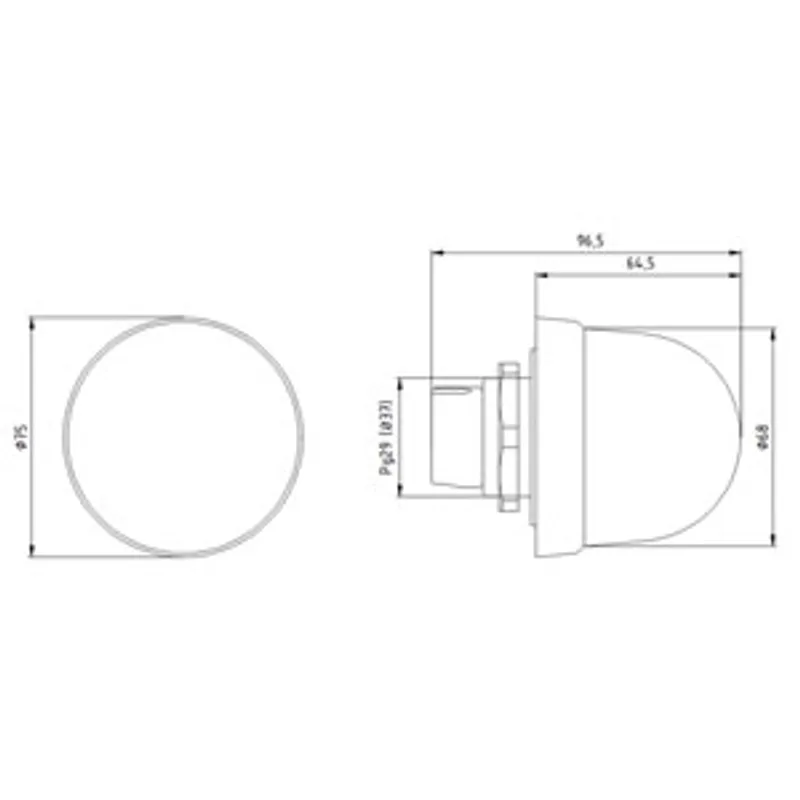

| depth | 31 mm |
| height | 66 mm |
| width | 75 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
