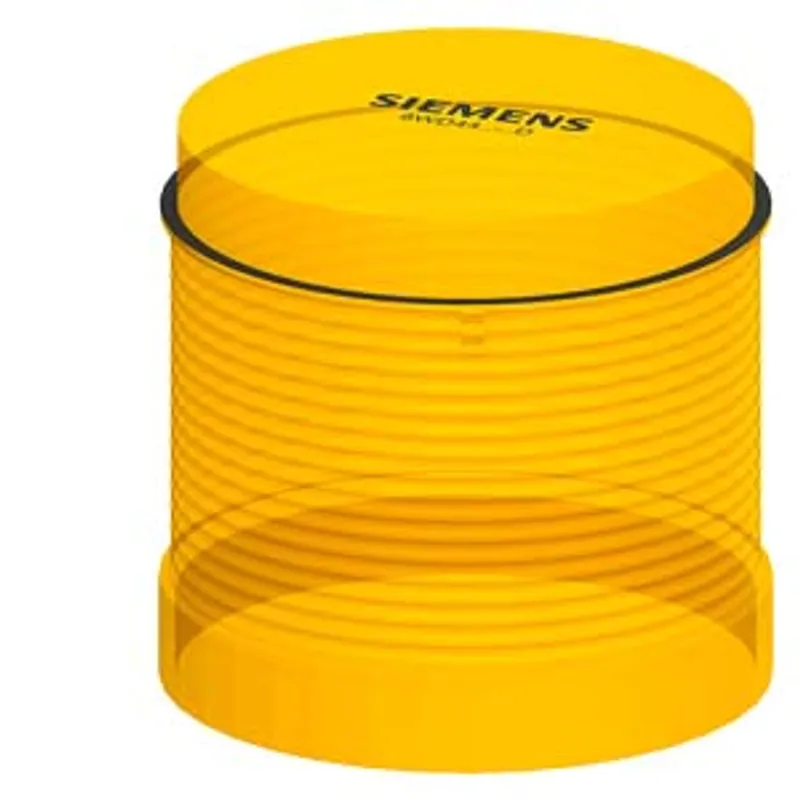

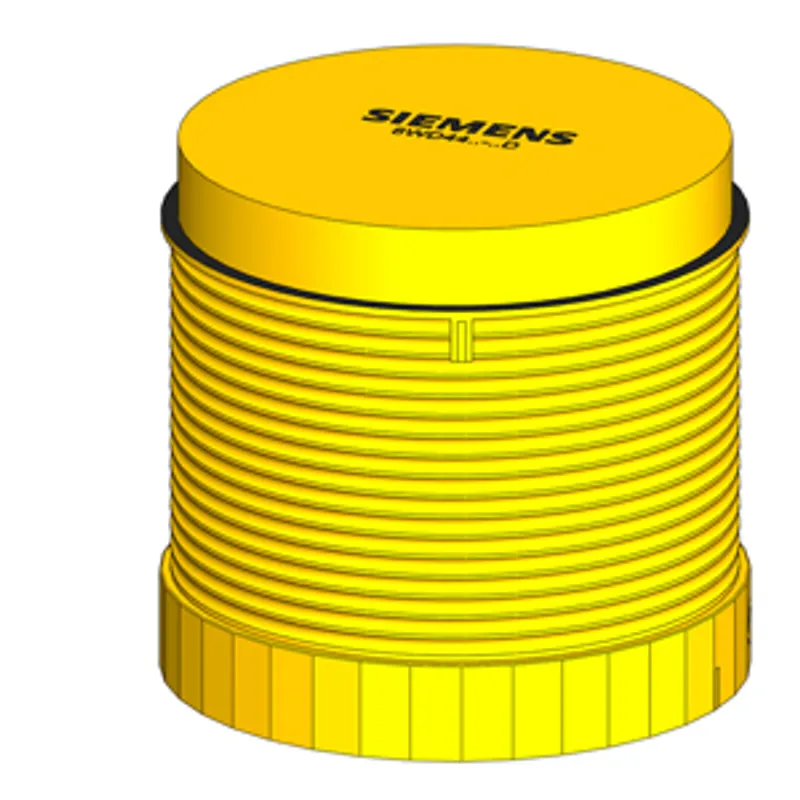

Siemens 8WD4400-1AD
Continuous light element, yellow, 12-230 V AC/DC, 70 mm diameter, base BA15d without light element
- MPN
- 8WD4400-1AD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD4400-1AD?
continuous light element, yellow, 12-230 V AC/DC, 70 mm diameter, base BA15d without light element
Specifications
General
| product brand name | SIRIUS |
| product designation | Continuous light element |
| design of the product | without light source |
General technical data
| type of voltage of the operating voltage | AC/DC |
| operating voltage — at DC rated value | 12 ... 230 V |
| operating voltage — at AC at 50 Hz rated value | 12 ... 230 V |
| operating voltage — at AC at 60 Hz rated value | 12 ... 230 V |
| reference code according to EN 61346-2 | P |
Lamp
| type of light source | filament lamp / LED |
| light intensity | 1.04 cd |
| light intensity | 0.79 ... 1.42 cd |
| design of the reflection body | Drum lens |
| product component light source | No |
| design of the optical signal | continuous light |
| socket design | BA 15d |
Enclosure

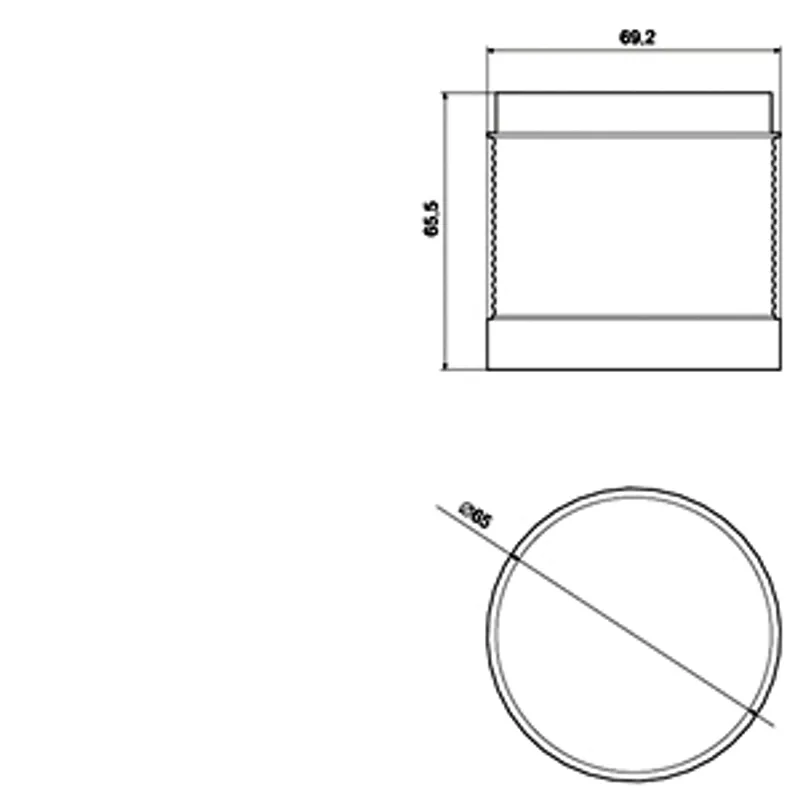

| height | 65.5 mm |
| width | 70 mm |
| outer diameter of the signal column element | 70 mm |
| material | PC |
| color | yellow |
| fastening method | Bayonet |
| protection class IP | IP65 |
Ambient conditions
| ambient temperature during operation | -20 ... +60 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
