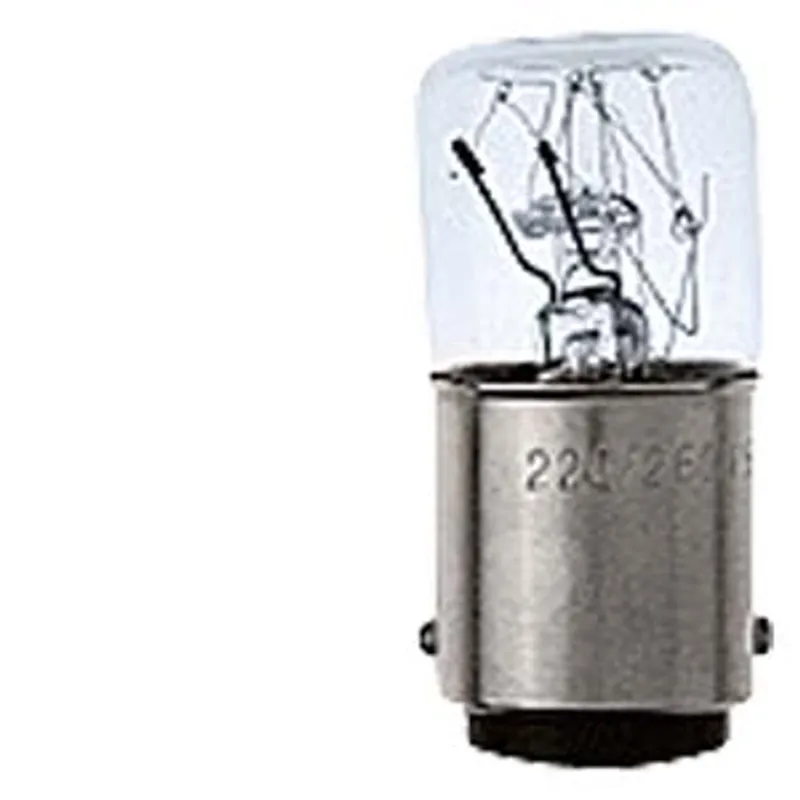

Siemens 8WD4328-1XX

Incandescent lamp, 24 V AC/DC, 5 CO contacts, base BA15d, accessory for signaling columns

MPN: 8WD4328-1XX
Category: 8WD44 signaling columns, 70 mm diameter

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 8WD4328-1XX?

incandescent lamp, 24 V AC/DC, 5 CO contacts, base BA15d, accessory for signaling columns, with diameter 50 mm + 70 mm, (packing unit 10 units)

Specifications

General

product brand name	SIRIUS
product designation	Incandescent lamp

General technical data

type of voltage of the operating voltage	AC/DC
operating voltage — 1 at DC rated value	24 V
operating voltage — 1 at AC at 50 Hz rated value	24 V
operating voltage — 1 at AC at 60 Hz rated value	24 V
relative positive tolerance of the operating voltage	10 %
relative negative tolerance of the operating voltage	-10 %

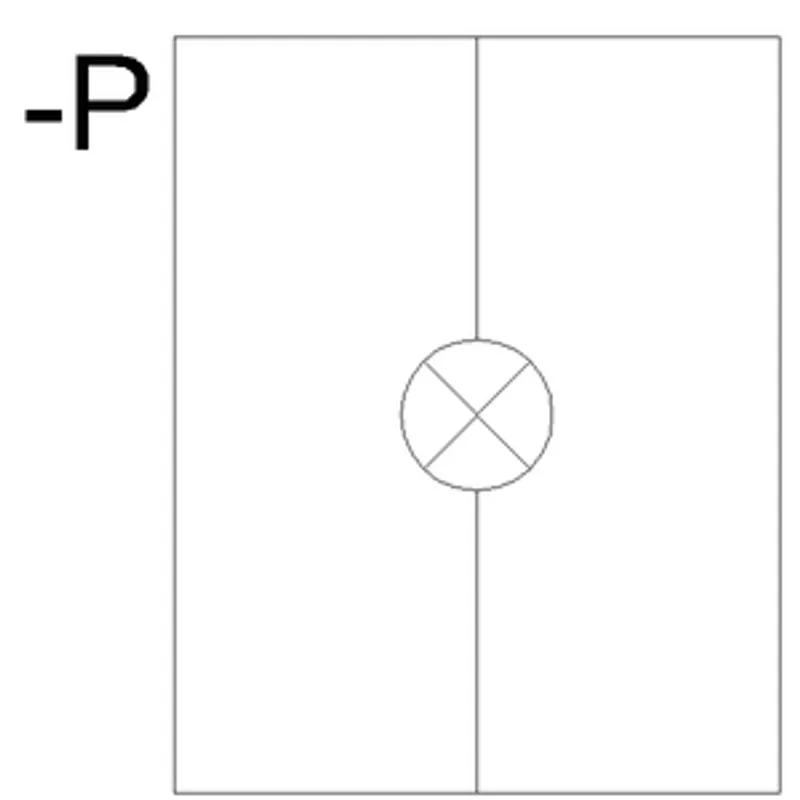

reference code according to EN 61346-2	P

Lamp

type of light source	filament lamp
design of the reflection body	Drum lens
socket design	BA 15d

Enclosure

height	42 mm
width	16 mm
outer diameter of the signal column element	70 mm

Ambient conditions

ambient temperature during operation

-20 ... +50 °C
