Siemens 8PQ5000-5BA12

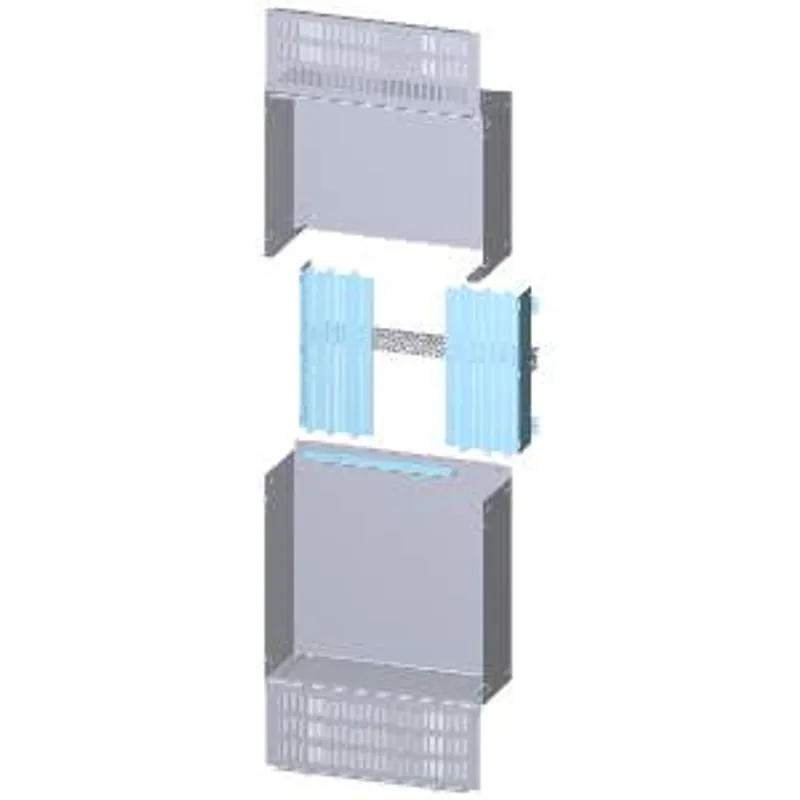

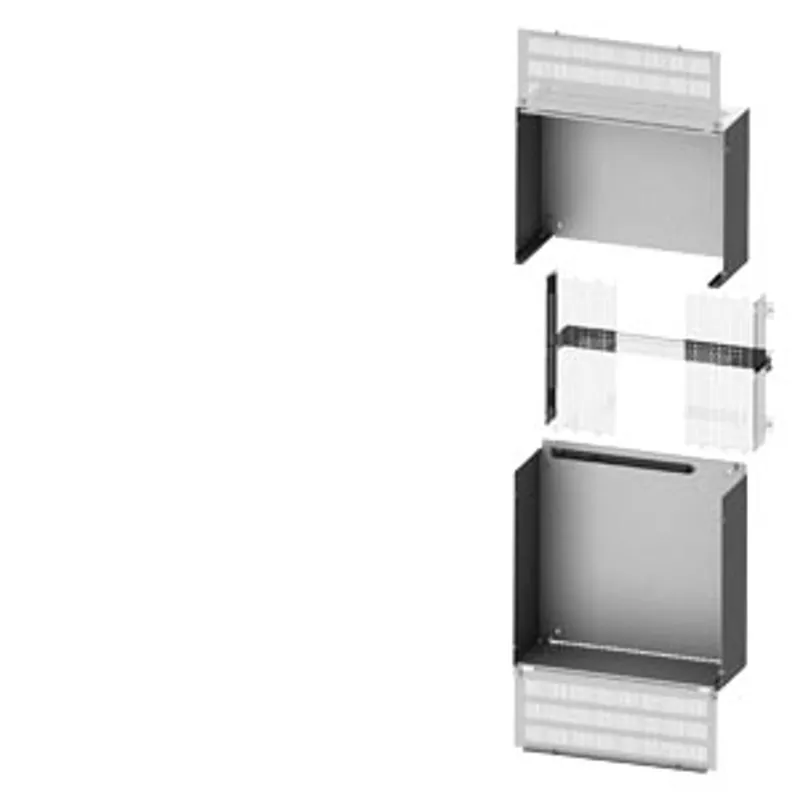

Partition coupling section 3WA, frame size 1, W: 600 mm D: 400 mm

MPN: 8PQ5000-5BA12
Category: Main busbar top

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 8PQ5000-5BA12?

partition coupling section 3WA, frame size 1, W: 600 mm D: 400 mm

Specifications

Model

product brand name	SIVACON S4
product designation	separation
design of the surface	zinc plated

General technical data

design of pole	4
design	assembly kit
suitability for use	for 3WL air circuit breakers
color	miscellaneous

Product details

product component — cable entry	No
product component — lock	No

Mechanical Design

height	2 000 mm
width	600 mm
depth	400 mm
installation width for cabinet installation	600 mm
installation depth for cabinet installation	400 mm
shape of inner subdivisions — shape 2a	Yes
shape of inner subdivisions — shape 2b	Yes
shape of inner subdivisions — shape 3a	Yes
shape of inner subdivisions — shape 3b	Yes
shape of inner subdivisions — shape 4a	Yes
shape of inner subdivisions — shape 4b	Yes
mounting position	vertical
Net Weight	18 kg
material	sheet-steel

Certificates

reference code according to IEC 81346-2
