Main busbar top Parts

Siemens

Separation coupling panel 3WA 3WA size 2

Siemens

Separation coupling panel 3WA size 2, W: 800 mm D: 600 mm

Siemens

Partition coupling section 3WA, frame size 1

Siemens

Separation coupling panel 3WA size 1, W: 600 mm D: 600 mm

Siemens

Partition coupling section 3WA, frame size 1

Siemens

Supporting structure 3WA coupling panel D: 800 mm

Siemens

Supporting structure 3WA coupling panel D: 600 mm

Siemens

Degree of protection upgrade IP55, H: 675 mm W: 600 mm

Siemens

Head compartment door IP40, H: 675 mm W: 600 mm

Compare Main busbar top

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product designation	design of the surface	color	depth	Net Weight

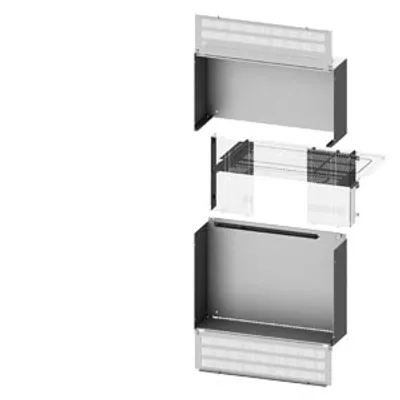

8PQ5000-5BA16	separation	zinc plated	miscellaneous	600 mm	30 kg

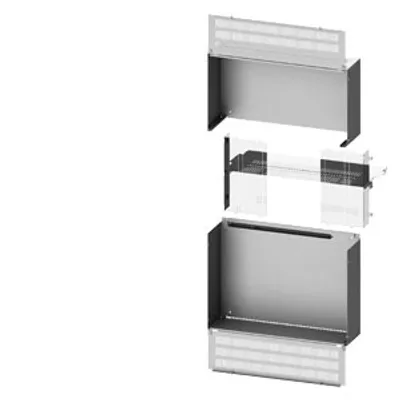

8PQ5000-5BA15	separation	zinc plated	miscellaneous	600 mm	29 kg

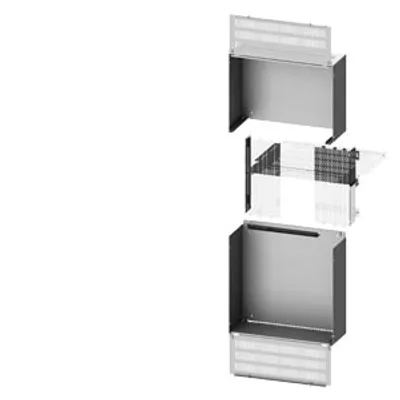

8PQ5000-5BA14	separation	zinc plated	miscellaneous	800 mm	20.1 kg

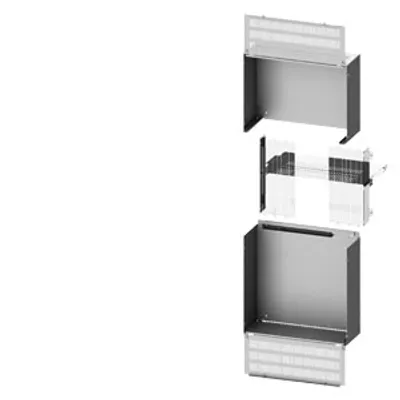

8PQ5000-5BA13	separation	zinc plated	miscellaneous	600 mm	19.47 kg

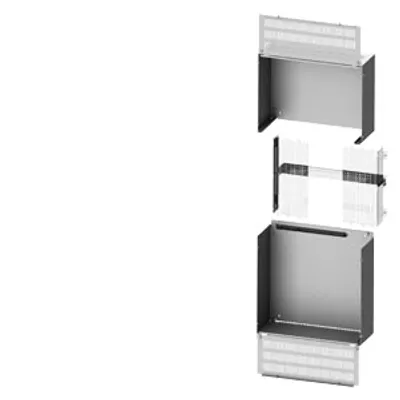

8PQ5000-5BA12	separation	zinc plated	miscellaneous	400 mm	18 kg

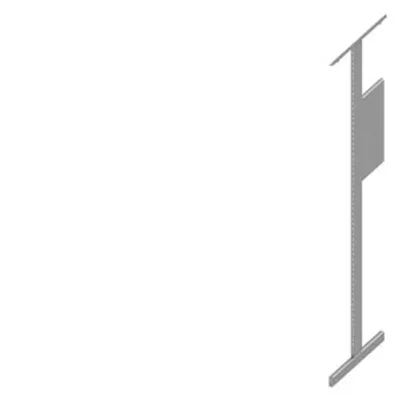

8PQ3000-3BA51	Supporting structure	zinc plated	miscellaneous	800 mm	9.46 kg

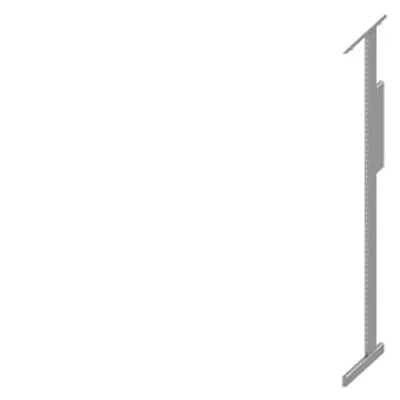

8PQ3000-3BA50	Supporting structure	zinc plated	miscellaneous	600 mm	7 kg
8PQ2067-6BA02	Degree of protection upgrade IP55	zinc plated	miscellaneous	22 mm	1.547 kg

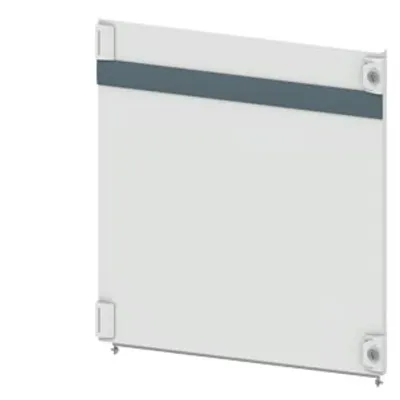

8PQ2067-6BA01	head compartment door	Powder-coated	light grey	25 mm	7.8 kg

material

sheet-steel
