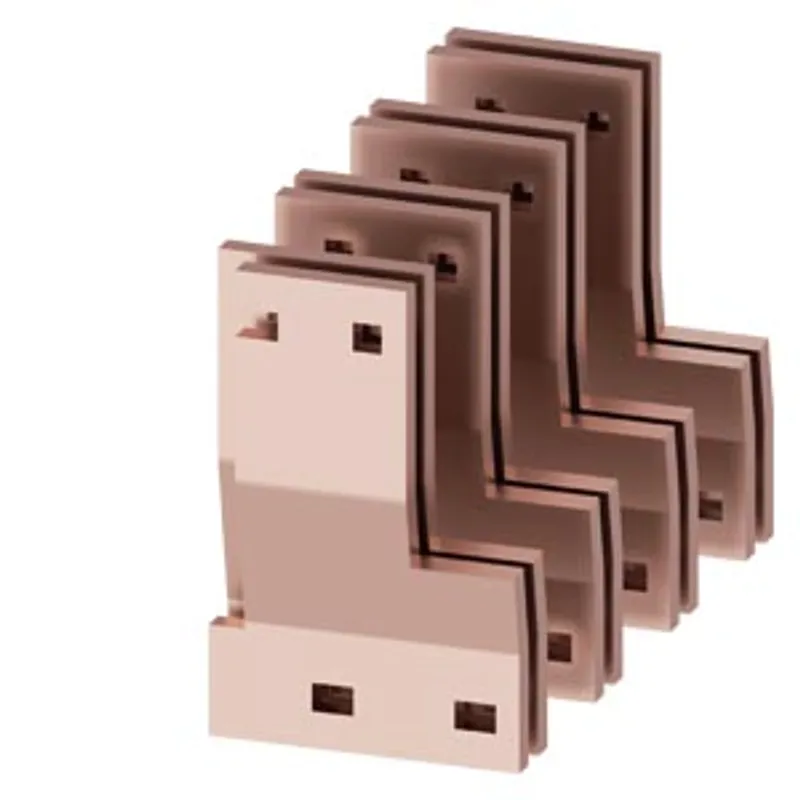

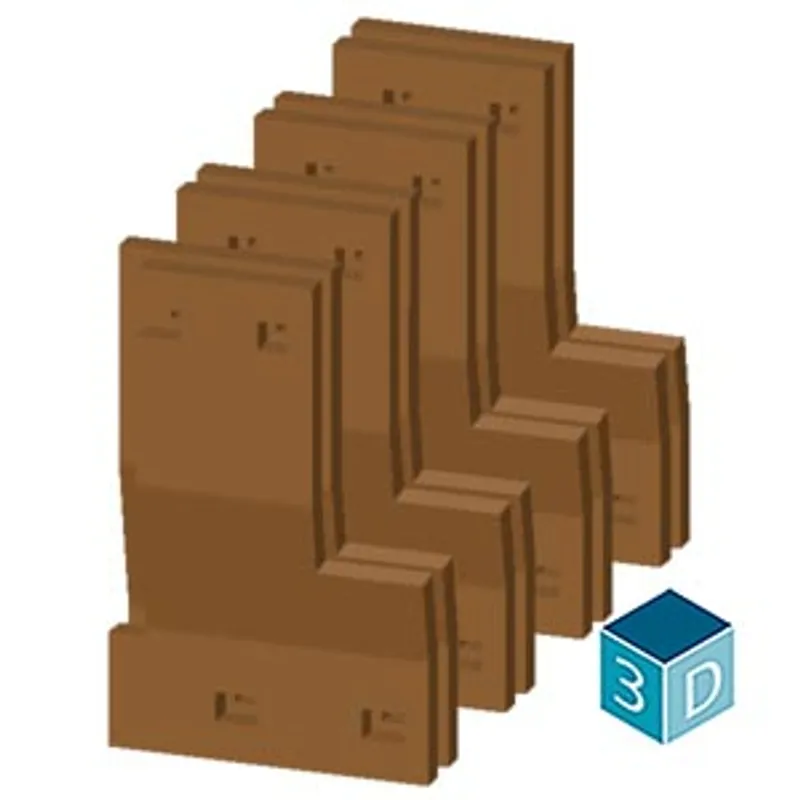

Siemens 8PQ4000-5BA80
Connecting lugs vertical busbar up to 4x50x10 mm system: non-cascaded, main busbar: front or rear
- MPN
- 8PQ4000-5BA80
- Category
- Copper
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8PQ4000-5BA80?
Connecting lugs vertical busbar up to 4x50x10 mm system: non-cascaded, main busbar: front or rear, position: bottom left, top right, D: 400, 800 mm W: 200 mm
Specifications
Model
| product brand name | SIVACON S4 |
General technical data
| number of poles | 4 |
| components of an electrical connection | Field/Field |
Main circuit
| operational current rated value | 2 810 A |
| tightening torque maximum | 40 N·m |
Mechanical Design
| height | 50 mm |
| width | 85 mm |
| depth | 200 mm |
| Net Weight | 17.5 kg |
