Copper Parts
Compare Copper
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current rated value | Net Weight |
|---|---|---|

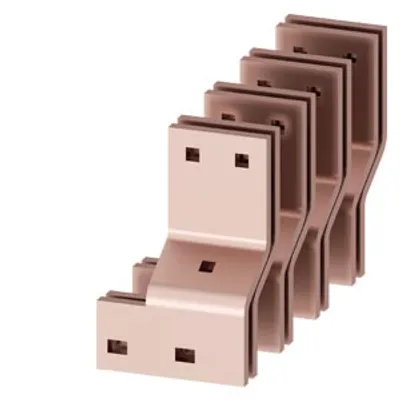

| 8PQ4000-5BA84 | 2 810 A | 19.5 kg |

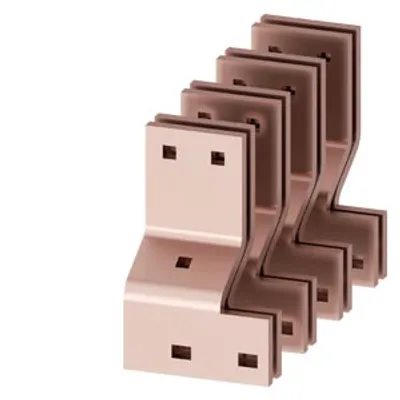

| 8PQ4000-5BA83 | 2 810 A | 19.5 kg |

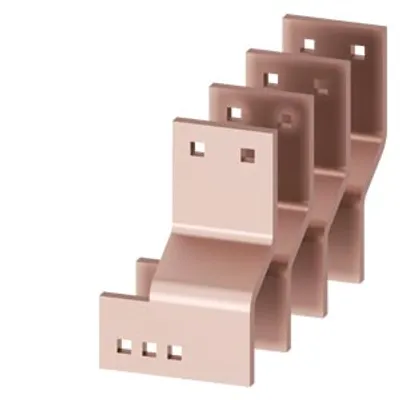

| 8PQ4000-5BA82 | 2 010 A | 6.624 kg |

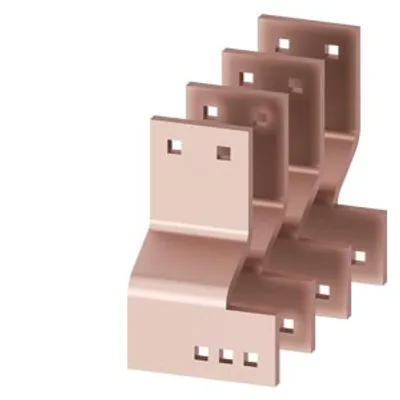

| 8PQ4000-5BA81 | 2 010 A | 6.631 kg |

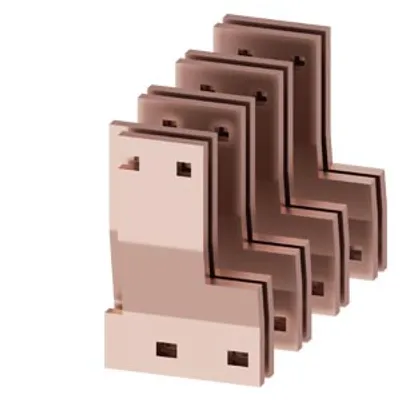

| 8PQ4000-5BA80 | 2 810 A | 17.5 kg |

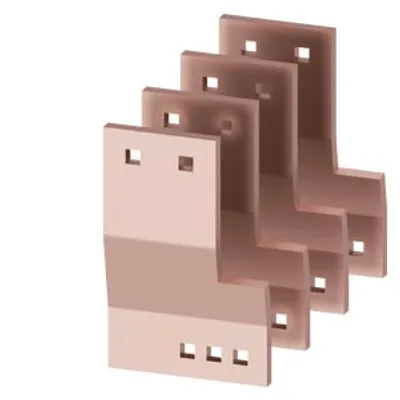

| 8PQ4000-5BA78 | 2 010 A | 8.7 kg |

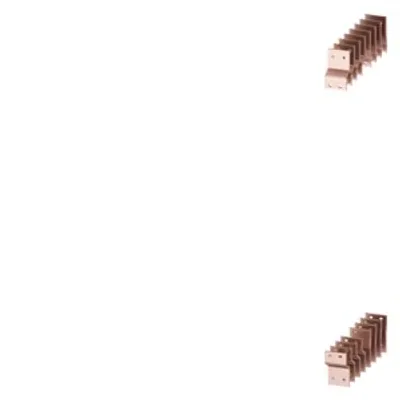

| 8PQ4000-5BA77 | 4 910 A | 37.2 kg |
Common to all listed parts
| number of poles | 4 |
| components of an electrical connection | Field/Field |
| tightening torque maximum | 40 N·m |
| height | 50 mm |
| width | 85 mm |
| depth | 200 mm |
