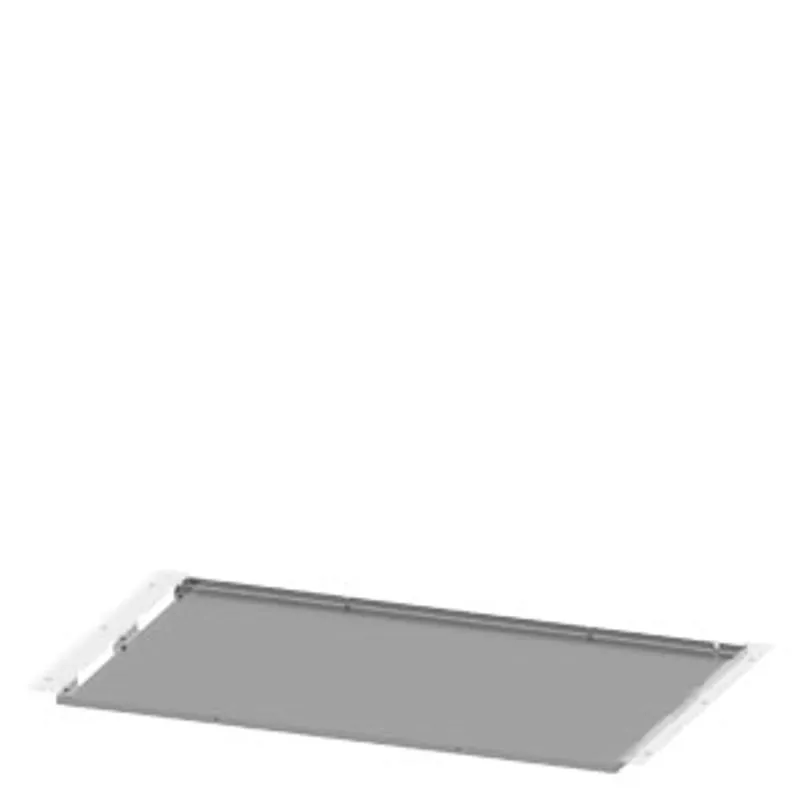

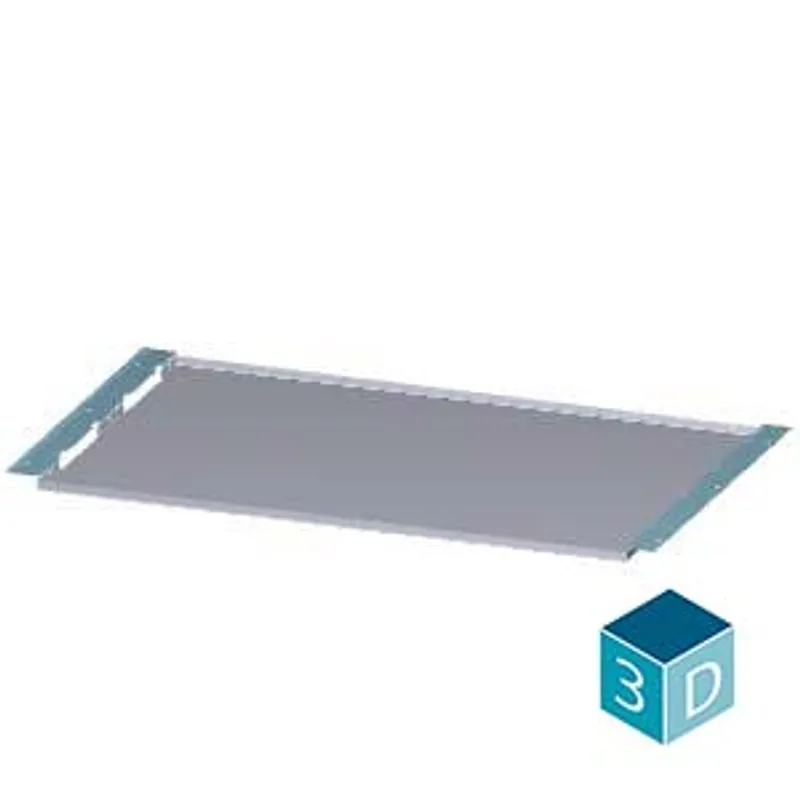

Siemens 8PQ2302-8BA04
Floor plate main busbar: bottom, IP20, W: 1200 mm D: 800 mm
- MPN
- 8PQ2302-8BA04
- Category
- Floor plates
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8PQ2302-8BA04?
Floor plate main busbar: bottom, IP20, W: 1200 mm D: 800 mm
Specifications
Model
| product brand name | SIVACON S4 |
| product designation | bottom plate |
| design of the surface | zinc plated |
| design of the product EMC version | No |
Protection class
| protection class IP | IP20 |
Suitability
| suitability for use for outside use | No |
Appearance
| color | miscellaneous |
Product details
| product component — cable entry | No |
| product component — ventilation | No |
Mechanical Design
| height | 1 mm |
| width | 1 200 mm |
| depth | 800 mm |
| ventilation cross section outlet can be used | 0 cm² |
| Net Weight | 7.16 kg |
| material | sheet-steel |
