Siemens 8PQ1200-4BA16
Frame – 8GK4 system
- MPN
- 8PQ1200-4BA16
- Category
- Frame – 8GK4 system
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8PQ1200-4BA16?

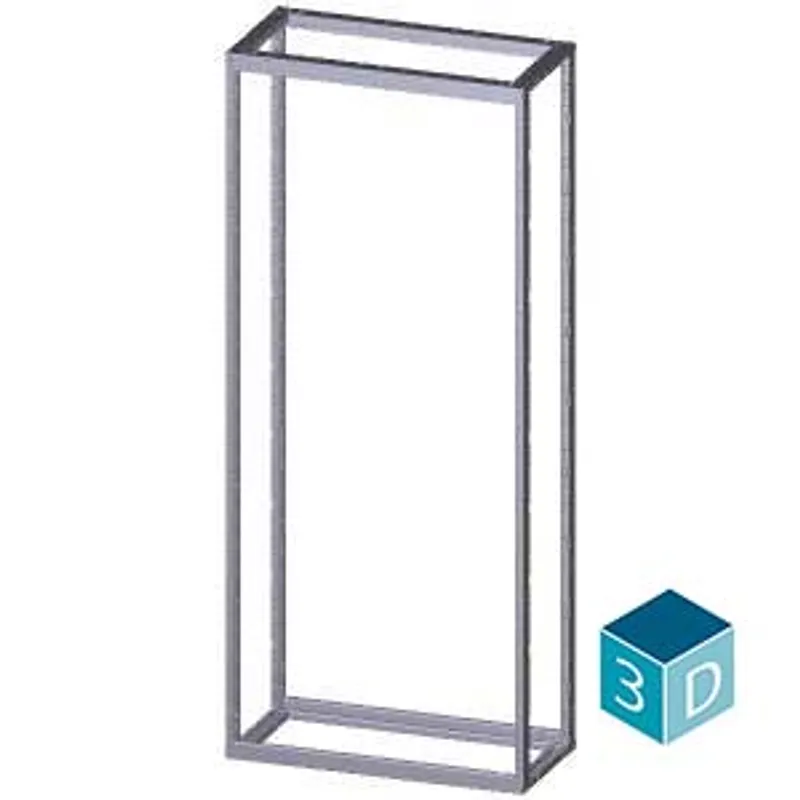

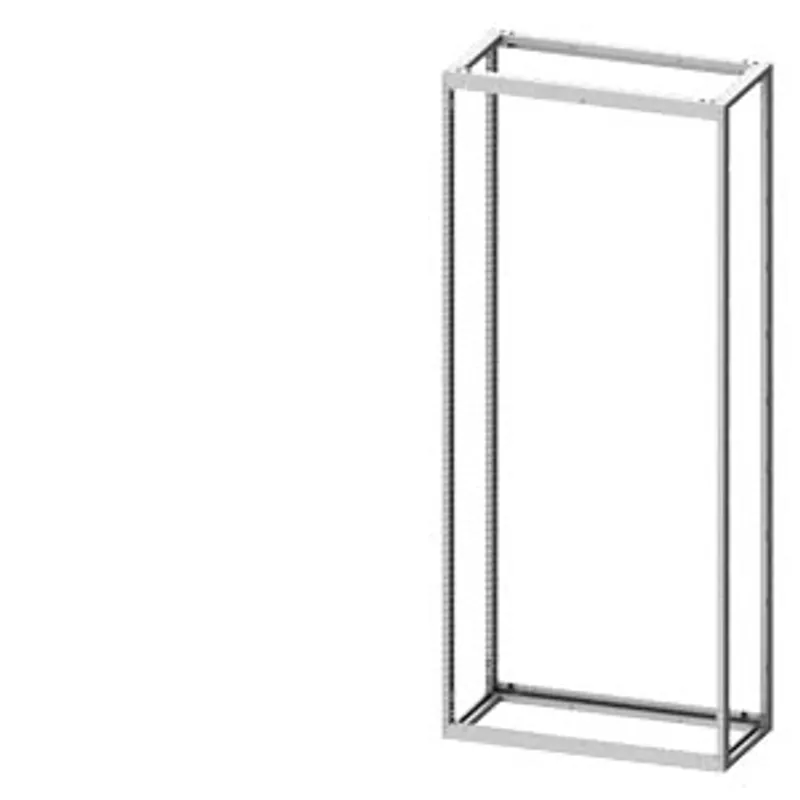

Frame W: 850 mm D: 400 mm
Specifications
Model
| product brand name | SIVACON S4 |
| product designation | frame |
| design of the surface | zinc plated |
| design of the product EMC version | No |
Protection class
| protection class IP | IP00 |
| operating resource protection class | 1 |
| operational current rated value | 3 200 A |
Suitability
| suitability for installation for metric dimensions | Yes |
| suitability for integration surface-mounted installation | No |
| suitability for integration flush mounting | No |
| suitability for use for outside use | No |
Appearance
| RAL color number | 7 035 |
| RAL color number (similar) | 7 035 |
| color | light grey |
Product details
| product component — ventilation door | No |
| product component — mounting plate | No |
| product component — rear door | No |
| product component — viewing door | No |
| product component — height-adjustable mounting plate | No |
| product feature of the enclosure housing can be lined up | Yes |
Number
| number of locking devices | 0 |
| number of doors | 0 |
Mechanical Design
| height | 2 000 mm |
| width | 850 mm |
| depth | 400 mm |
| fastening method — 19-inch installation | No |
| fastening method — floor mounting | Yes |
| fastening method — wall mounting | No |
| material thickness of the plate | 2.5 mm |
| Net Weight | 31.8 kg |
| material | zinc-coated sheet steel |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8PQ1200-4BA16: frequently asked questions
When can 8PQ1200-4BA16 be shipped?
8PQ1200-4BA16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8PQ1200-4BA16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8PQ1200-4BA16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8PQ1200-4BA16, subject to availability and destination.
