Frame – 8GK4 system Parts
Compare Frame – 8GK4 system
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | color | width | Net Weight | material |
|---|---|---|---|---|---|

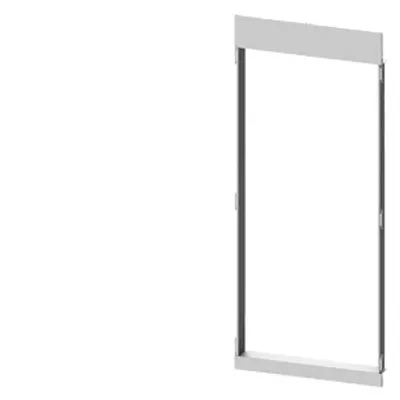

| 8PQ3000-2BA87 | masking frame | light grey | 850 mm | 10.48 kg | sheet-steel |

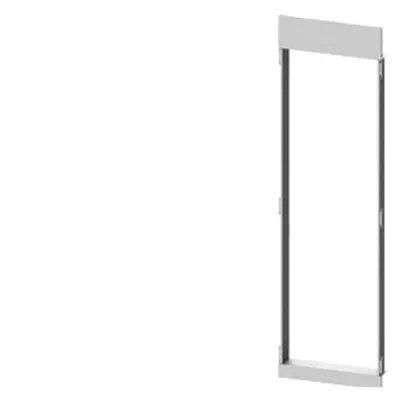

| 8PQ3000-2BA86 | masking frame | light grey | 600 mm | 9 kg | sheet-steel |

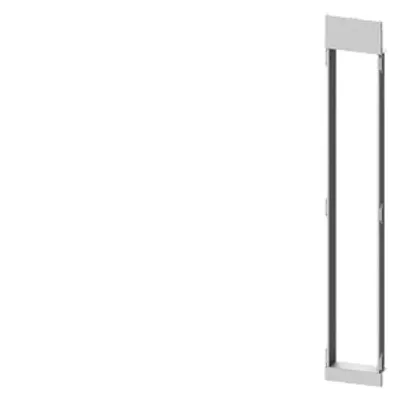

| 8PQ3000-2BA85 | masking frame | light grey | 350 mm | 6 kg | sheet-steel |

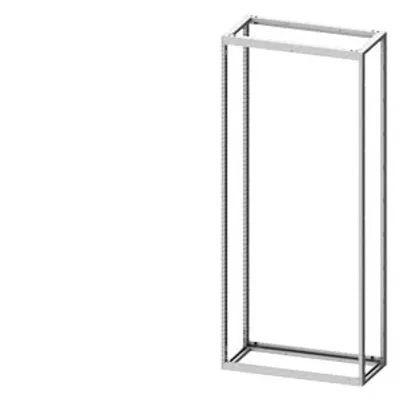

| 8PQ1200-4BA16 | frame | light grey | 850 mm | 31.8 kg | zinc-coated sheet steel |

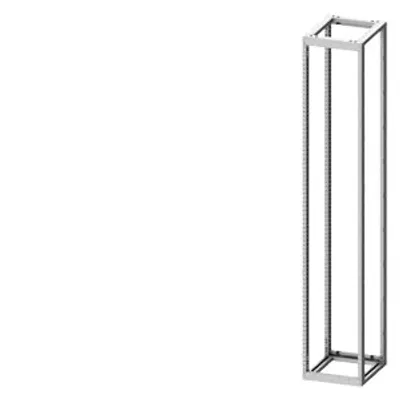

| 8PQ1200-4BA15 | frame | light grey | 350 mm | 25 kg | zinc-coated sheet steel |

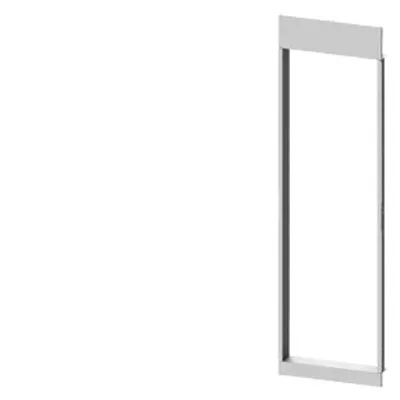

| 8PQ3000-2BA83 | masking frame | light grey | 600 mm | 7.8 kg | sheet-steel |

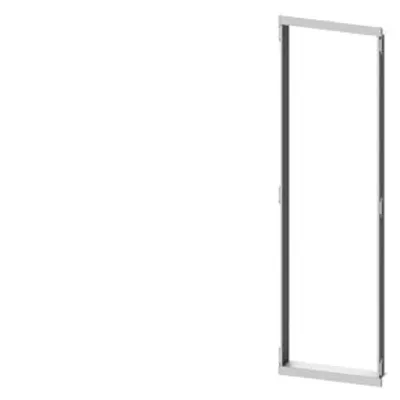

| 8PQ3000-2BA46 | masking frame | light grey | 600 mm | 8.22 kg | sheet-steel |

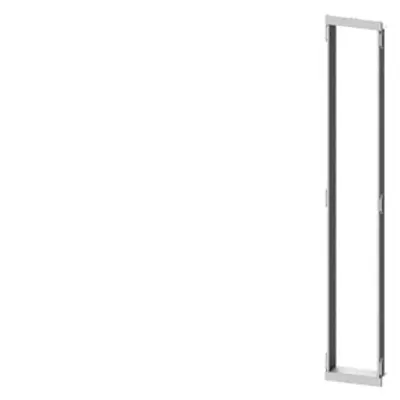

| 8PQ3000-2BA45 | masking frame | light grey | 350 mm | 8.08 kg | sheet-steel |

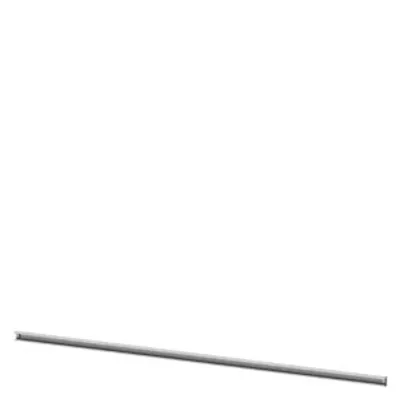

| 8PQ3000-2BA36 | Cable clamping rail | — | — | 5 kg | steel |

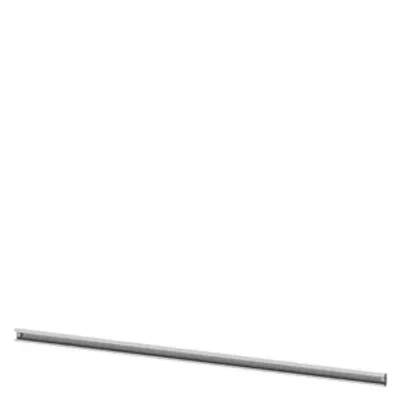

| 8PQ3000-2BA35 | Cable clamping rail | — | — | 3.925 kg | steel |
| 8PQ3000-2BA84 | masking frame | light grey | 850 mm | 9.2 kg | sheet-steel |

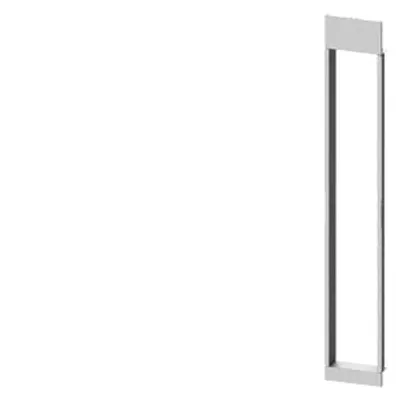

| 8PQ3000-2BA82 | masking frame | light grey | 350 mm | 6.4 kg | sheet-steel |

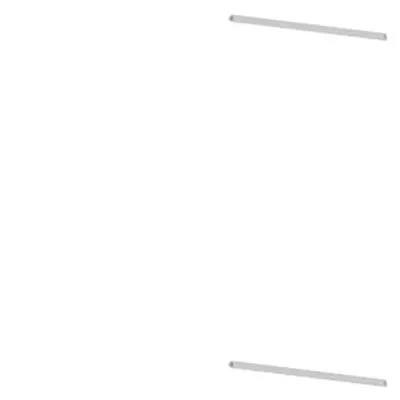

| 8PQ3000-1BA80 | Crossbar | miscellaneous | 850 mm | 1.177 kg | sheet-steel |

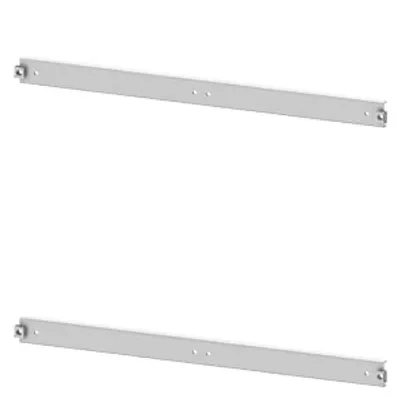

| 8PQ3000-1BA78 | Crossbar | miscellaneous | 600 mm | 807 g | sheet-steel |
| 8PQ3000-1BA76 | Crossbar | miscellaneous | 350 mm | 470 g | sheet-steel |

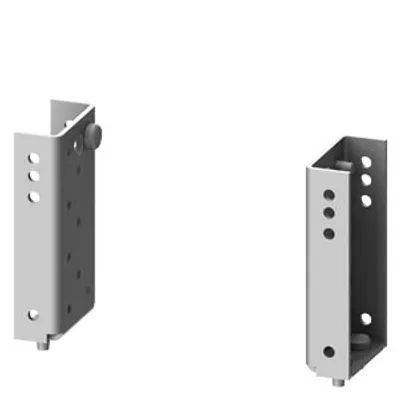

| 8PQ3000-1BA75 | Support | miscellaneous | — | 368 g | sheet-steel |

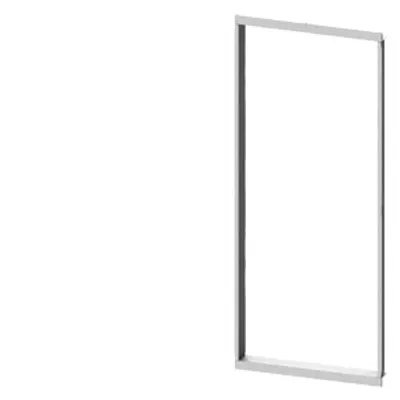

| 8PQ3000-1BA85 | — | light grey | 850 mm | 9.72 kg | sheet-steel |

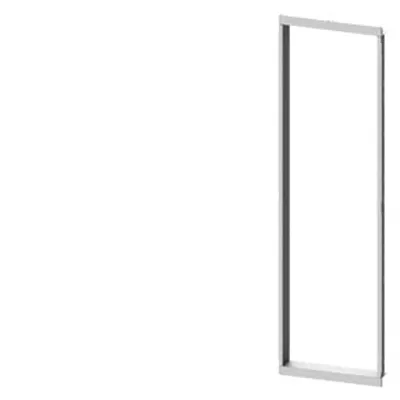

| 8PQ3000-1BA84 | — | light grey | 600 mm | 8.7 kg | sheet-steel |

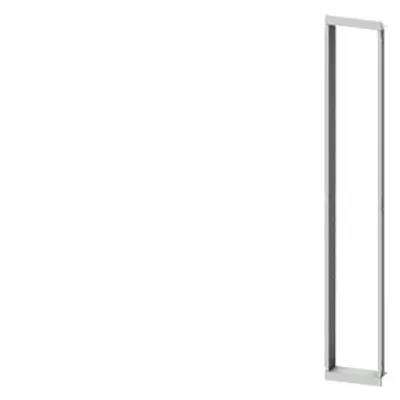

| 8PQ3000-1BA83 | — | light grey | 350 mm | 7.68 kg | sheet-steel |

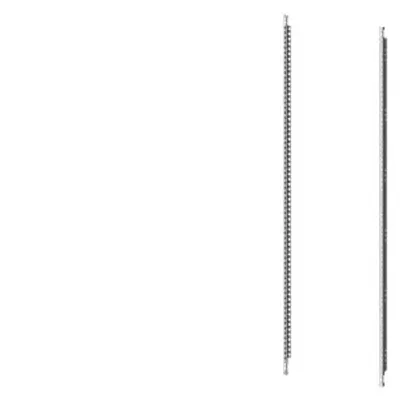

| 8PQ3000-1BA82 | Longitudinal reinforcement | miscellaneous | — | 3.74 kg | sheet-steel |
