Siemens

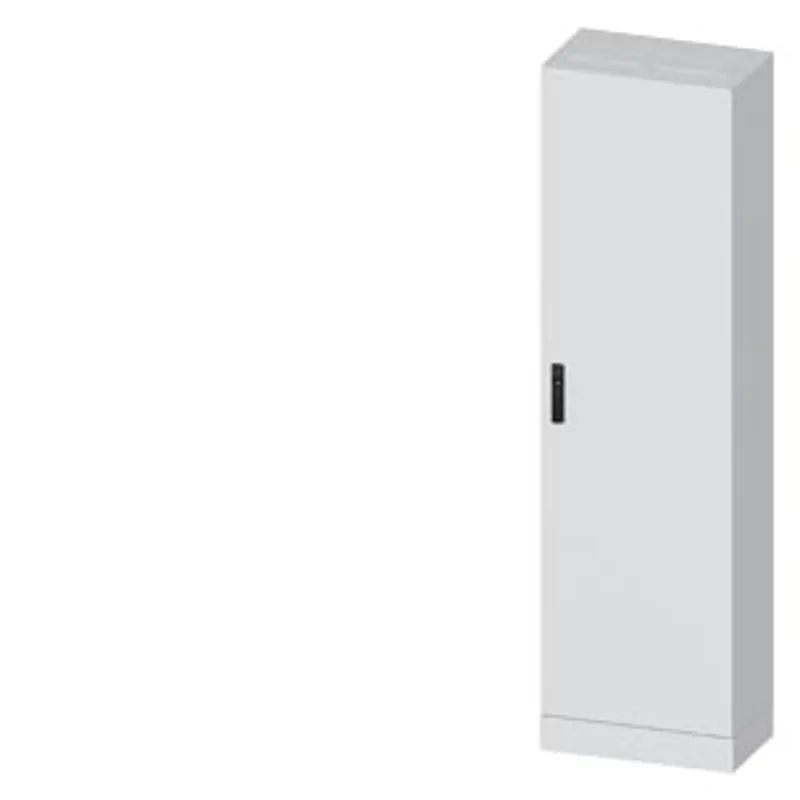

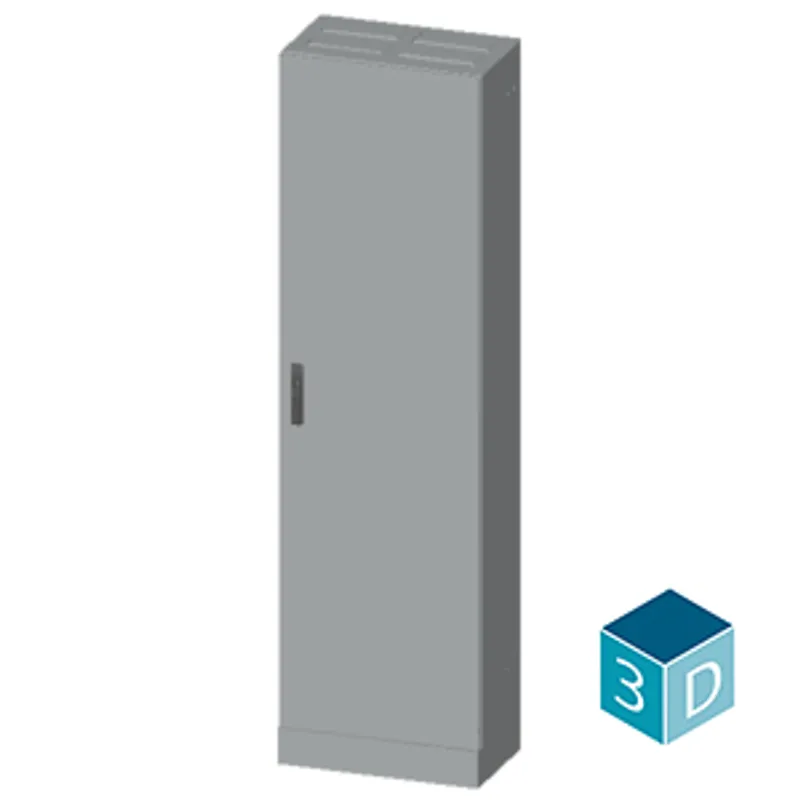

Siemens 8GK1323-8KN24

ALPHA 630, Floor-mounted cabinet, IP55, Protection class 1, H: 1950 mm, W: 550 mm, T: 320 mm, RAL 7035

MPN: 8GK1323-8KN24
Category: ALPHA 630

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GK1323-8KN24?

ALPHA 630, Floor-mounted cabinet, IP55, Protection class 1, H: 1950 mm, W: 550 mm, T: 320 mm, RAL 7035

Specifications

Model

product brand name	ALPHA
product designation	Free-standing cabinet
design of the product	with closed side panel
surface processing	powder-coated

Protection class

protection class IP	IP55
operating resource protection class	Safety class 1
IK protection class	IK09
suitability for interaction lightning protection	Yes
suitability for use for outside use	No

Appearance

RAL color number	7 035
product component — cable entry	Yes
product component — mounting plate	No
product extension optional side-by-side mounting	Yes
number of rows	24

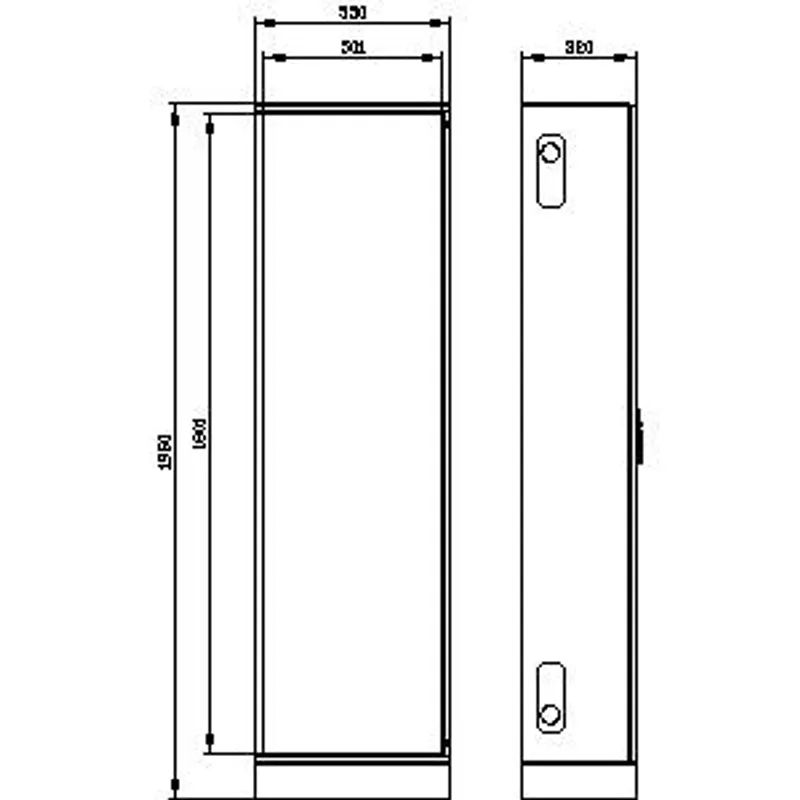

Mechanical Design

height	1 950 mm
width	550 mm
depth	320 mm
installation depth	320 mm
number of modular width units	288
number of modular width units per DIN mounting bar	12
fastening method	floor mounting
Net Weight	45.5 kg
material of the enclosure	Steel
