Siemens

Siemens 8GK1312-8KK32

ALPHA 630, Floor-mounted cabinet, Flat Pack, IP43, Protection class 2, H: 1900 mm, W: 800 mm, T: 210 mm

MPN: 8GK1312-8KK32
Category: ALPHA 630

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GK1312-8KK32?

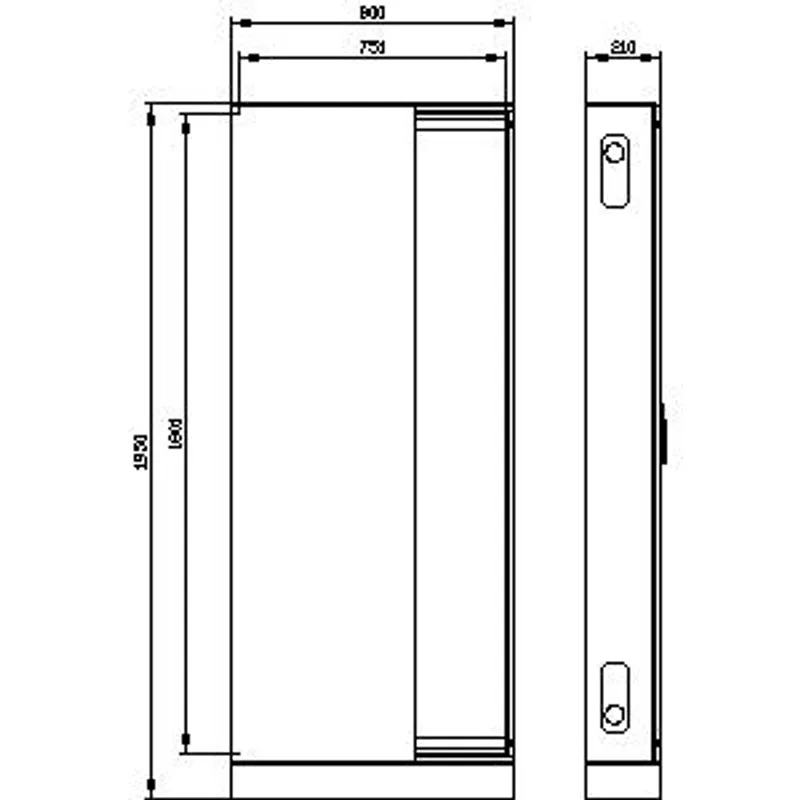

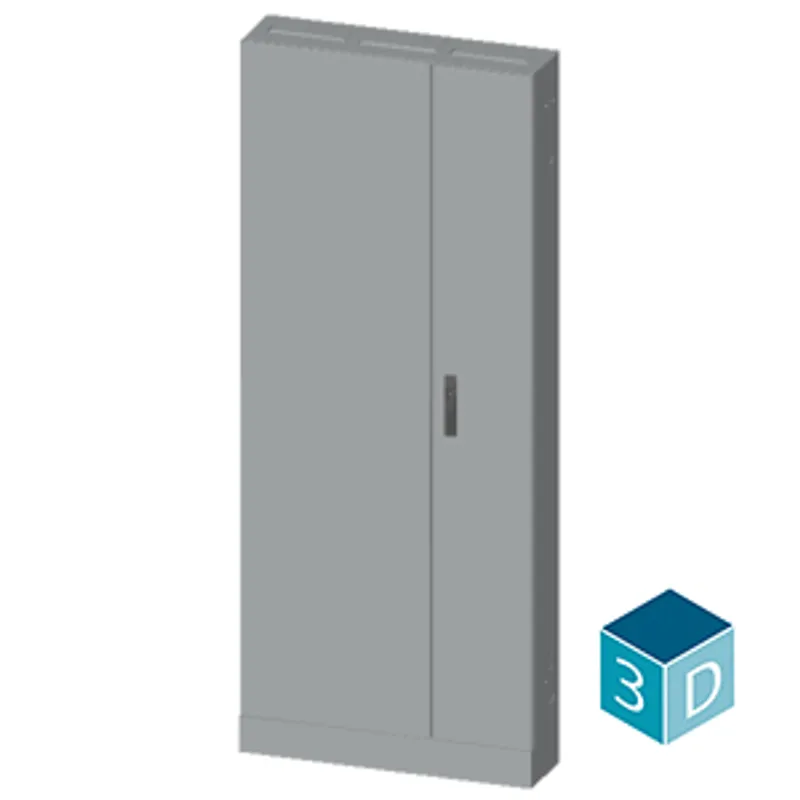

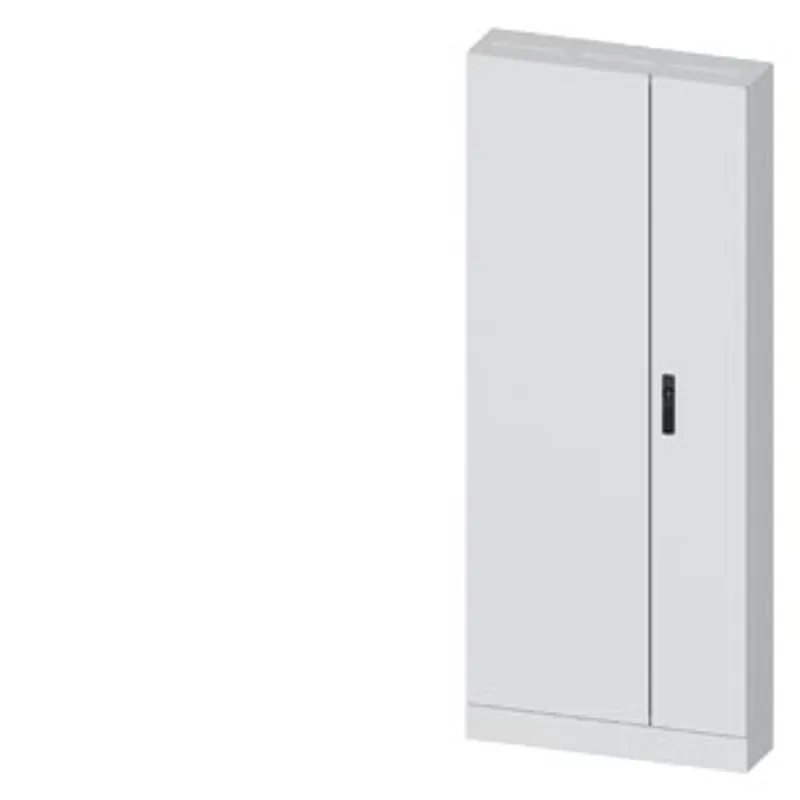

ALPHA 630, Floor-mounted cabinet, Flat Pack, IP43, Protection class 2, H: 1900 mm, W: 800 mm, T: 210 mm, RAL 7035

Specifications

Model

product brand name	ALPHA
product designation	Free-standing cabinet
design of the product	Flat pack
surface processing	powder-coated

Protection class

protection class IP	IP43
operating resource protection class	Safety class 2
IK protection class	IK09
suitability for interaction lightning protection	Yes
suitability for use for outside use	No

Appearance

RAL color number	7 035
product component — cable entry	Yes
product component — mounting plate	No
product extension optional side-by-side mounting	Yes
number of rows	36

Mechanical Design

height	1 900 mm
width	800 mm
depth	210 mm
installation depth	210 mm
number of modular width units	432
number of modular width units per DIN mounting bar	12
fastening method	floor mounting
Net Weight	52 000 g
material of the enclosure	Steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8GK1312-8KK32PDF

8GK1312-8KK32: frequently asked questions

When can 8GK1312-8KK32 be shipped?

8GK1312-8KK32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8GK1312-8KK32 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8GK1312-8KK32 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GK1312-8KK32, subject to availability and destination.
