Siemens

Siemens 8GK1102-6KK32

ALPHA 400, wall-mounted cabinet, Flat Pack, IP43, Protection class 1, H: 1250 mm, W: 800 mm, T: 210 mm

MPN: 8GK1102-6KK32
Category: ALPHA 400

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

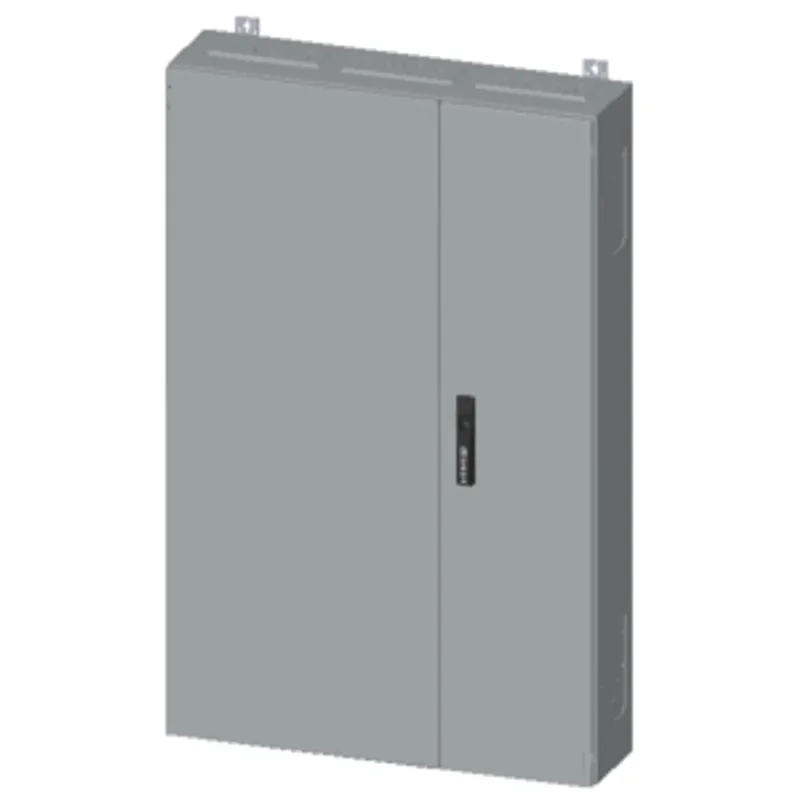

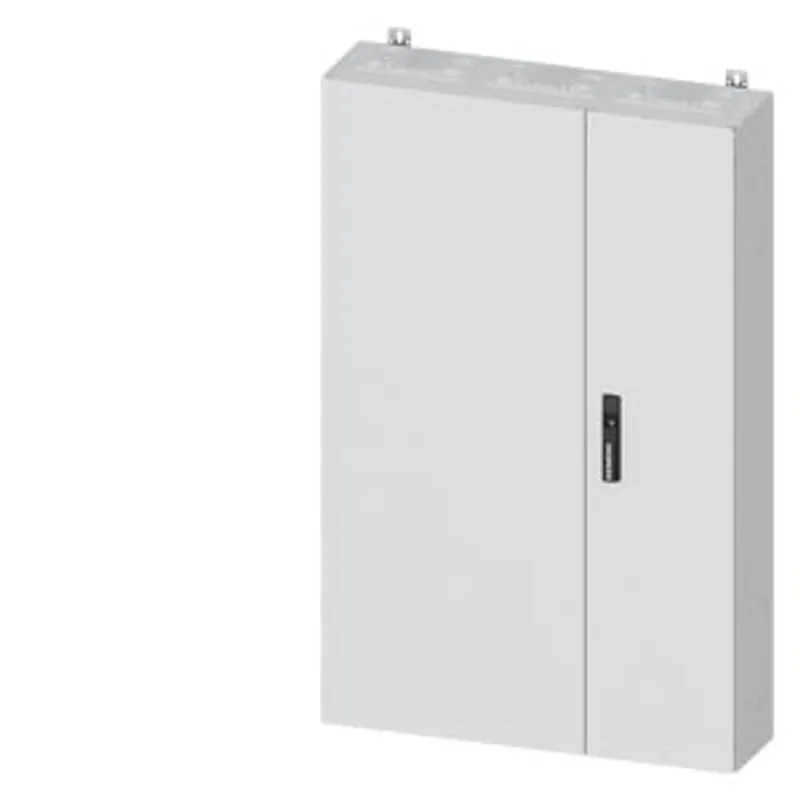

What is the Siemens 8GK1102-6KK32?

ALPHA 400, wall-mounted cabinet, Flat Pack, IP43, Protection class 1, H: 1250 mm, W: 800 mm, T: 210 mm, RAL 9016

Specifications

Model

product brand name	ALPHA
product designation	Wall-mounted cabinet
design of the product	surface-mounted (flat pack)
surface processing	powder-coated

Protection class

protection class IP	IP43
operating resource protection class	Safety class 1
IK protection class	IK09
suitability for interaction lightning protection	Yes
suitability for use for outside use	No

Appearance

RAL color number	9 016
product component — cable entry	Yes
product component — mounting plate	No
product extension optional side-by-side mounting	Yes
number of rows	24

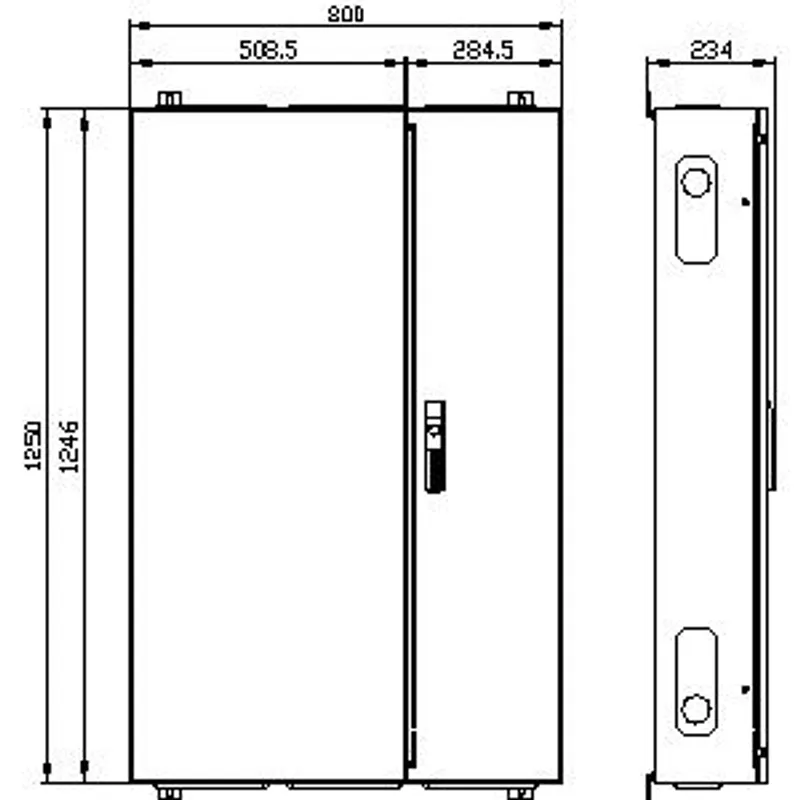

Mechanical Design

height	1 250 mm
width	800 mm
depth	210 mm
installation depth	210 mm
number of modular width units	288
number of modular width units per DIN mounting bar	12
fastening method	surface mounting
Net Weight	31 kg
material of the enclosure	Steel
