ALPHA 400 Parts
Compare ALPHA 400
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | number of rows | height | width | number of modular width units | Net Weight |
|---|---|---|---|---|---|

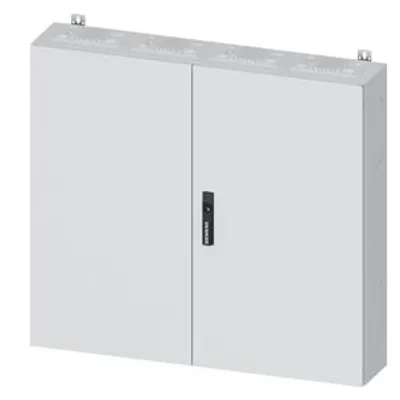

| 8GK1122-4KA42 | 24 | 950 mm | 1 050 mm | 288 | 27.78 kg |

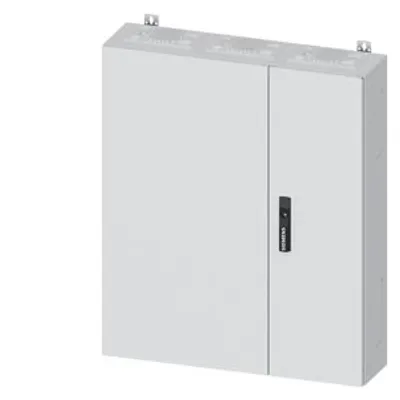

| 8GK1122-4KA32 | 18 | 950 mm | 800 mm | 216 | 22.8 kg |

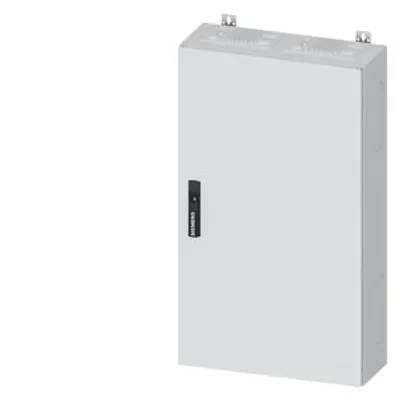

| 8GK1122-4KA22 | 12 | 950 mm | 550 mm | 144 | 17 kg |

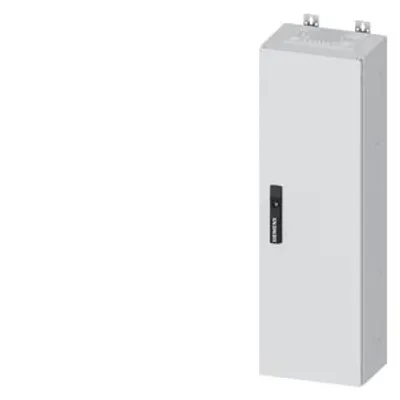

| 8GK1122-4KA12 | 6 | 950 mm | 300 mm | 72 | 11.5 kg |

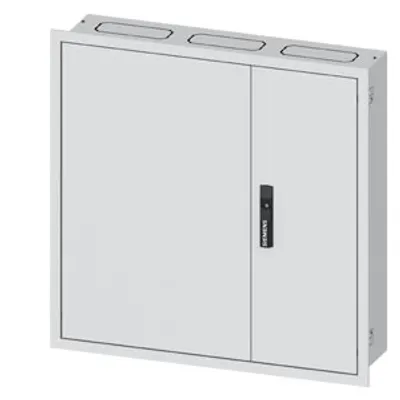

| 8GK1121-3KK32 | 15 | 813 mm | 812 mm | 180 | 20 000 g |

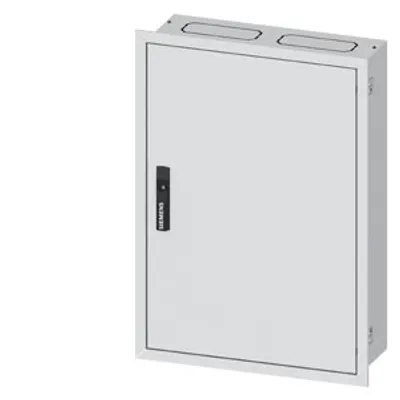

| 8GK1121-3KK22 | 10 | 813 mm | 562 mm | 120 | 15 500 g |

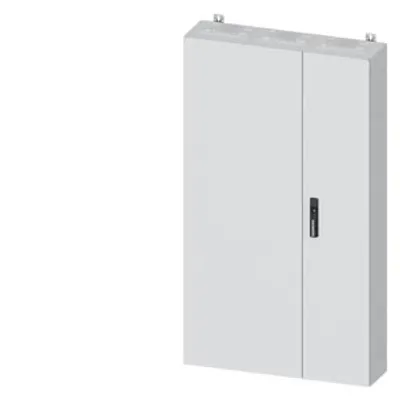

| 8GK1112-7KK32 | 27 | 1 400 mm | 800 mm | 324 | 34.5 kg |

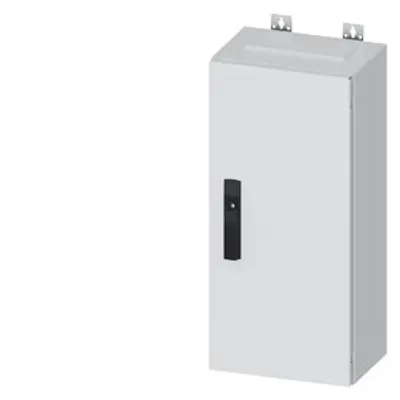

| 8GK1102-2KK12 | 4 | 650 mm | 300 mm | 48 | 9 kg |

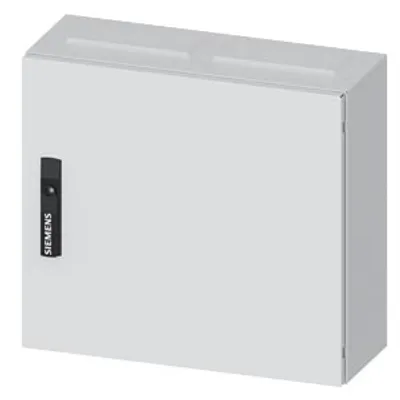

| 8GK1122-1KA22 | 6 | 500 mm | 550 mm | 72 | 10.274 kg |

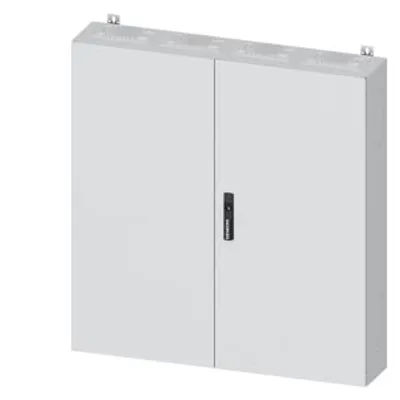

| 8GK1102-5KK42 | 28 | 1 100 mm | 1 050 mm | 336 | 33.5 kg |

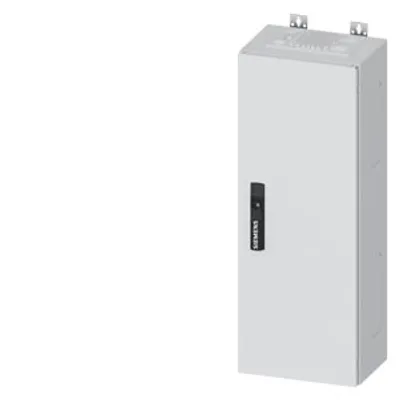

| 8GK1122-3KA12 | 5 | 800 mm | 300 mm | 60 | 10 kg |

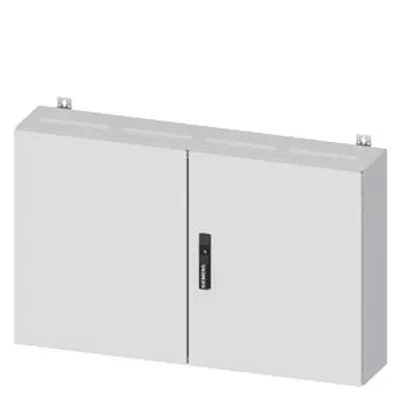

| 8GK1122-2KA42 | 16 | 650 mm | 1 050 mm | 192 | 21 kg |

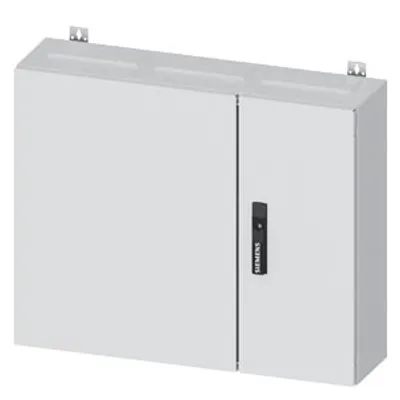

| 8GK1122-2KA32 | 12 | 650 mm | 800 mm | 144 | 17.583 kg |

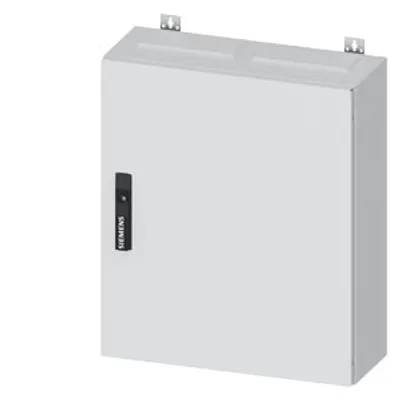

| 8GK1122-2KA22 | 8 | 650 mm | 550 mm | 96 | 12.2 kg |

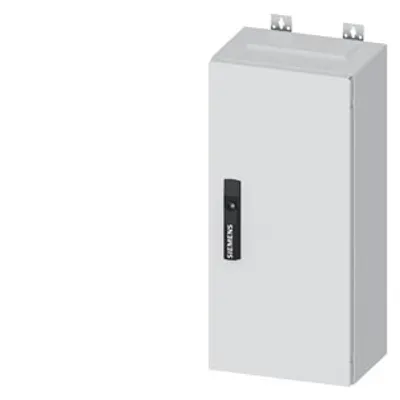

| 8GK1122-2KA12 | 4 | 650 mm | 300 mm | 48 | 8.68 kg |

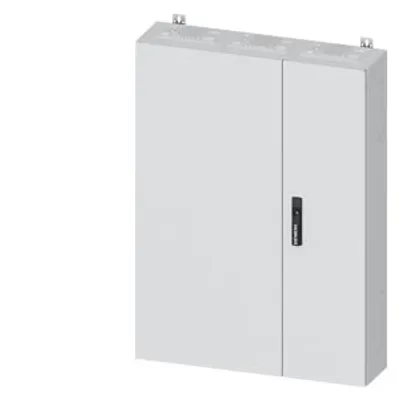

| 8GK1112-5KK32 | 21 | 1 100 mm | 800 mm | 252 | 28.5 kg |

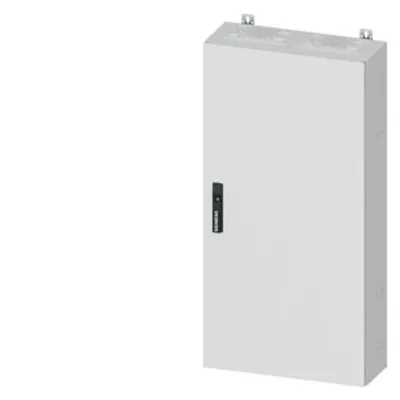

| 8GK1112-5KK22 | 14 | 1 100 mm | 550 mm | 168 | 22 000 g |

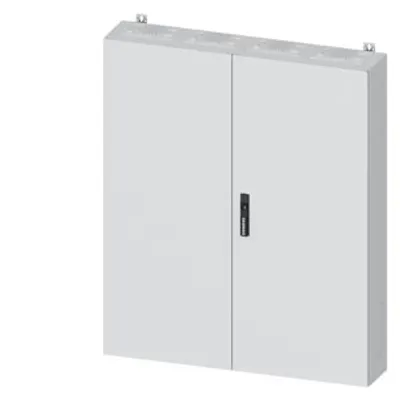

| 8GK1102-6KK42 | 32 | 1 250 mm | 1 050 mm | 384 | 35 kg |

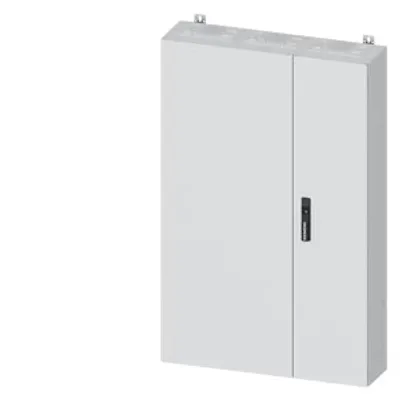

| 8GK1102-6KK32 | 24 | 1 250 mm | 800 mm | 288 | 31 kg |

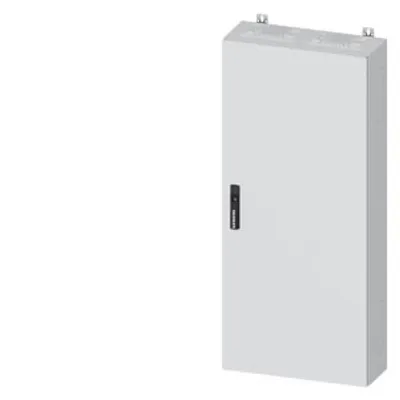

| 8GK1102-6KK22 | 16 | 1 250 mm | 550 mm | 192 | 23 kg |

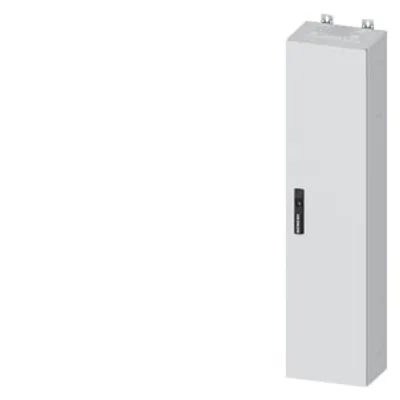

| 8GK1102-6KK12 | 8 | 1 250 mm | 300 mm | 96 | 15 000 g |

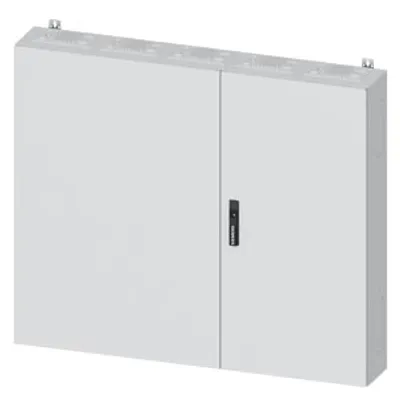

| 8GK1102-5KK52 | 35 | 1 100 mm | 1 300 mm | 420 | 39 000 g |

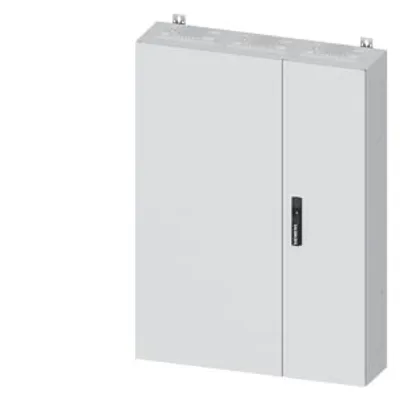

| 8GK1102-5KK32 | 21 | 1 100 mm | 800 mm | 252 | 27.2 kg |
Common to all listed parts
| product designation | Wall-mounted cabinet |
| surface processing | powder-coated |
| IK protection class | IK09 |
| suitability for use for outside use | No |
| RAL color number | 9 016 |
| product component — cable entry | Yes |
| product component — mounting plate | No |
| depth | 210 mm |
