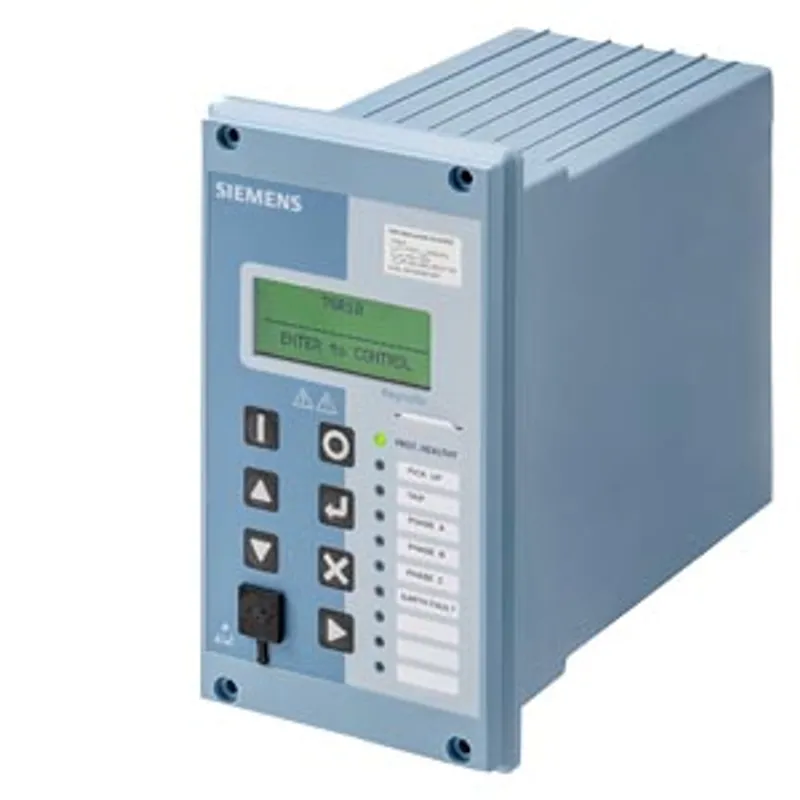

Siemens 7SR1002-1KA10-2CA0
Argus non direct. overcurrent relay Size 4 molded case, 4 CT, 10 LEDs
- MPN
- 7SR1002-1KA10-2CA0
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 7SR1002-1KA10-2CA0?
Argus non direct. overcurrent relay Size 4 molded case, 4 CT, 10 LEDs, 3 binary inputs/ 3 binary outp. measuring input: 1/5 A, 50/60 Hz auxiliary voltage: 60 to 240 V AC/DC, binary input tresh. 88 V AC/DC standard version - no cover communication: front port: USB front fascia: w. breaker control push buttons protection function: standard version
Specifications
Product details
| product feature / conformal coating | No |
| number of function keys | 7 |
| number of LEDs | 10 |
Model
| design of the product | Non directional Overcurrent relay |
Product Functions
| type of measured value detection / of operational measured value / standard | Yes |
| type of measured value detection / expanded / min./max. values, mean values | No |
| switching statistics | Yes |
| circuit breaker monitoring | Yes |
| product feature / logic editor | Yes |
| control | Yes |
| fault recording for analog and digital signals | Yes |
| sequence-of-events recorder | Yes |
| monitoring | Yes |
| number of parameter sets | 2 |
| parameter set switchover | Yes |
Protection Functions
| three-pole tripping | Yes |
| undervoltage protection (ANSI 27) | No |
| directional power monitoring (ANSI 32) | No |
| undercurrent protection (ANSI 37) | No |
| unbalance protection (ANSI 46) | Yes |
| overcurrent-time protection negative sequence system (ANSI 46) | Yes |
| overvoltage protection negative-sequence system (ANSI 47) | No |
| thermal overload protection (ANSI 49) | Yes |
| definite overcurrent-time protection (ANSI 50/50N) | Yes |
| arc protection (ANSI AFD) | Yes |
| sensitive ground current protection (ANSI 50Ns) | No |
| circuit breaker failure protection (ANSI 50BF) | Yes |
| dependent overcurrent-time protection (ANSI 51/51N) | Yes |
| dynamic response value changeover (ANSI 51C) | Yes |
| voltage-dependent overcurrent-time protection (ANSI 51V) | No |
| power factor (ANSI 55) | No |
| overvoltage protection (ANSI 59) | No |
| overvoltage protection zero-sequence system (ANSI 59N) | No |
| CT/VT monitoring (ANSI 60CTS / ANSI 60VTS) | Yes |
| REF protection (ANSI 64H) | Yes |
| directional overcurrent-time protection, phases (ANSI 67) | No |
| directional sensitive ground-fault detection for resonant-grounded systems and isolated systems (ANSI 67Ns) | No |
| directional sensitive ground fault protection – measured 3U0/I0, φ (ANSI 67SEF according to CEI 0-16) | No |
| trip-circuit supervision (ANSI 74TC) | Yes |
| automatic reclosing (ANSI 79) | No |
| frequency protection (ANSI 81) | No |
| monitoring of the total harmonic distortion (ANSI 81I_THD) | Yes |
| closing lock-out (ANSI 86) | Yes |
| inrush current detection | Yes |
| external trip initiation | Yes |
Supply voltage
| supply voltage / at AC | 60 ... 240 V |
| supply voltage / at DC | 60 ... 240 V |
| type of voltage / of the supply voltage | AC/DC |
Inputs / Outputs
| number of digital inputs / maximum | 3 |
| number of voltage inputs | 0 |
| number of digital outputs / incl. signaling contact / maximum | 3 |
| number of current inputs / maximum | 4 |
Communication
| product component / operating interface (on the front) | Yes |
| protocol / is supported / IEC 60870-5-103 | No |
| protocol / is supported / Modbus RTU device | No |
| protocol / is supported / DNP 3, serial | No |
Time synchronization
| type of time synchronization | BI |

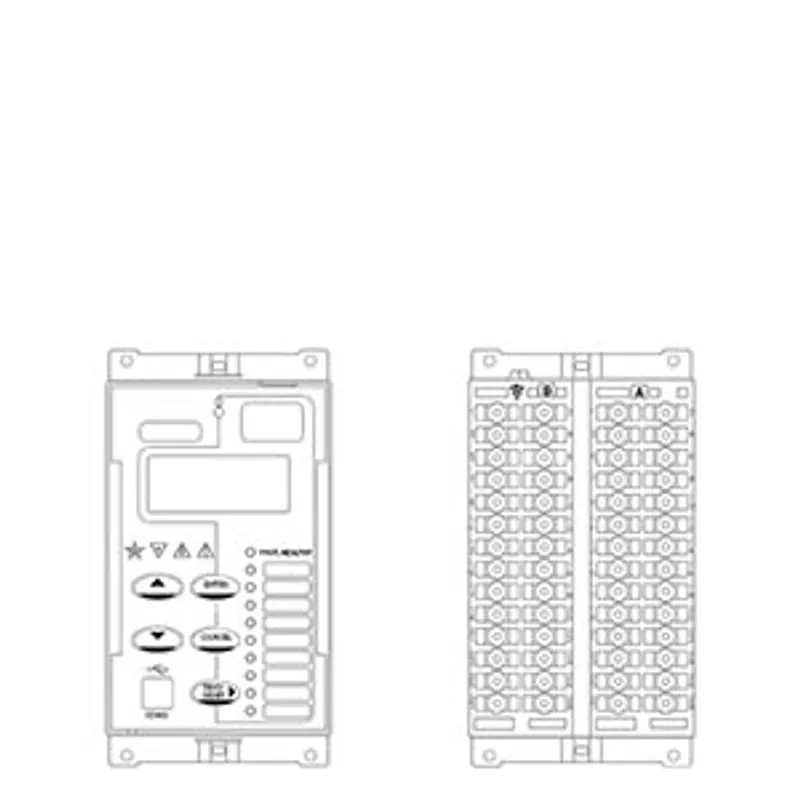

Mechanical Design
| width | 105 mm |
| height | 185 mm |
| depth | 186 mm |
| frame size of enclosure | E4 (4U High ) |
| design of the display | 20 Character x 4 line Backlit LCD |
| product component / with protective cover | No |
| product feature / plug-in terminal blocks | Yes |
Environmental conditions
| ambient temperature / during operation | -10 ... +60 °C |
