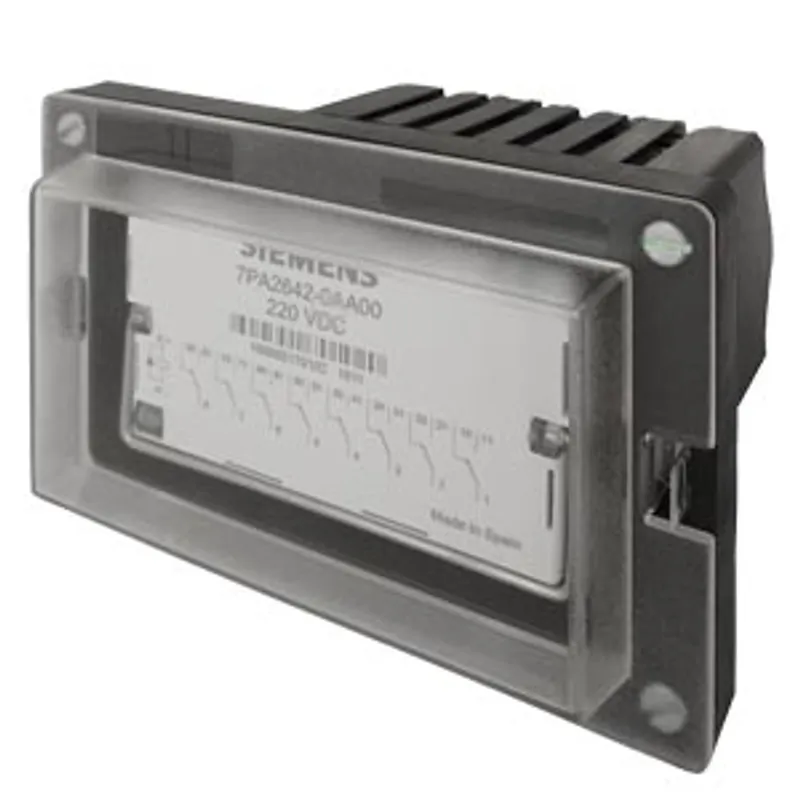

Siemens 7PA2642-0AA00-2
TRIP RELAY WITH 8 CHANGE OVER CONTACTS AUXILIARY VOLTAGE: 220V DC OPERATING TIME STANDARD
- MPN
- 7PA2642-0AA00-2
- Category
- 7PA26 - Monostable Relay
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7PA2642-0AA00-2?
TRIP RELAY WITH 8 CHANGE OVER CONTACTS AUXILIARY VOLTAGE: 220V DC OPERATING TIME STANDARD, 20MS RELAIS WITH SOCKET 7XP9012-0 FOR SURFACE MOUNTING
Specifications
General technical data
| type of voltage | DC |
| continuous current | 10 A |
| switching behavior | monostable |
| type of switching contact | bifurcated contact |
| design of the switching function / positively driven | Yes |
| response time | 20 ms |
Product details
| product component / LED | No |
Product Functions
| manual RESET | No |
Supply voltage
| supply voltage / at DC / rated value | 220 V |
Inputs / Outputs
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| number of CO contacts | 8 |
| switching capacity active power / at DC / maximum | 4 400 W |
| switching capacity active power / at DC / maximum / note | at 110V DC |
Mechanical Design
| width | 88 mm |
| height | 105 mm |
| depth | 104.3 mm |
| type of electrical connection | screw terminal |
| product feature / plug-in terminal blocks | No |
| design of the snap-on socket base | surface mounting base |
Degree of protection / protection class
| protection class IP / on the front | IP40 |
| protection class IP / rear side | IP10 |
Environmental conditions
| ambient temperature / during operation | -25 ... +70 °C |
