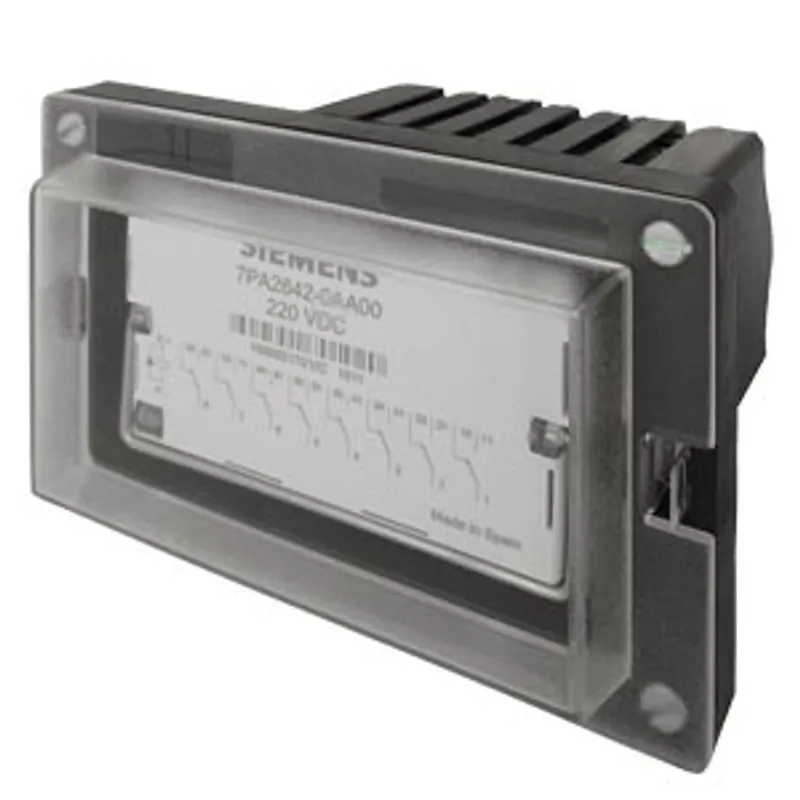

Siemens 7PA2642-0AA00-1
TRIP RELAY WITH 8 CHANGE OVER CONTACTS AUXILIARY VOLTAGE: 220V DC OPERATING TIME STANDARD
- MPN
- 7PA2642-0AA00-1
- Category
- 7PA26 - Monostable Relay
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7PA2642-0AA00-1?
TRIP RELAY WITH 8 CHANGE OVER CONTACTS AUXILIARY VOLTAGE: 220V DC OPERATING TIME STANDARD, 20MS RELAIS WITH SOCKET 7XP9010-3 FOR FLUSH MOUNTING
Specifications
General technical data
| type of voltage | DC |
| continuous current | 10 A |
| switching behavior | monostable |
| type of switching contact | bifurcated contact |
| design of the switching function / positively driven | Yes |
| response time | 20 ms |
Product details
| product component / LED | No |
Product Functions
| manual RESET | No |
Supply voltage
| supply voltage / at DC / rated value | 220 V |
Inputs / Outputs
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| number of CO contacts | 8 |
| switching capacity active power / at DC / maximum | 4 400 W |
| switching capacity active power / at DC / maximum / note | at 110V DC |
Mechanical Design
| width | 120 mm |
| height | 80 mm |
| depth | 122 mm |
| type of electrical connection | screw terminal |
| product feature / plug-in terminal blocks | No |
| design of the snap-on socket base | flush-mounting socket |
Degree of protection / protection class
| protection class IP / on the front | IP40 |
| protection class IP / rear side | IP10 |
Environmental conditions
| ambient temperature / during operation | -25 ... +70 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
7PA2642-0AA00-1: frequently asked questions
When can 7PA2642-0AA00-1 be shipped?
7PA2642-0AA00-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7PA2642-0AA00-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7PA2642-0AA00-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7PA2642-0AA00-1, subject to availability and destination.
