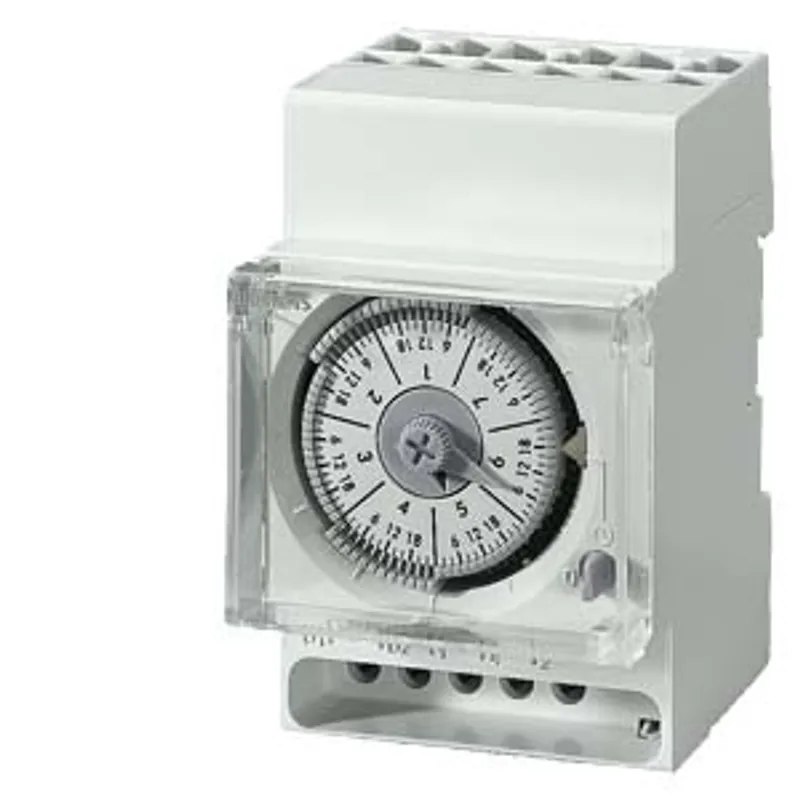

Siemens 7LF5301-7

Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW

MPN: 7LF5301-7
Category: 7LF5 Mechanical Time Switches

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 7LF5301-7?

Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW

Specifications

Model

product brand name	SENTRON
product designation	Mechanical time switch
design of the product	Week
design of the switching function	CO contact

General technical data

principle of operation line-synchronous	No
principle of operation quartz-controlled	Yes
accuracy per day	2.5 s
shortest switching time interval of channel 1	30 min

Supply voltage

supply voltage initial value	230 V
supply voltage full-scale value	230 V
type of voltage of the supply voltage	AC
supply voltage frequency — minimum	50 Hz
supply voltage frequency — maximum	50 Hz

Protection class

protection class IP

IP20

Breaking Capacity

switching capacity current at AC at 250 V rated value

16 A

Product details

product feature floating switching contact

Yes

Product function

product function — 60 min time program	No
product function — automatic daylight-saving adjustment	No
product function — direct operation	Yes
product function — annual time program	No
product function — switching preselection	Yes
product function — 24 hr time program	No
product function — weekly time program	Yes

Number

number of channels

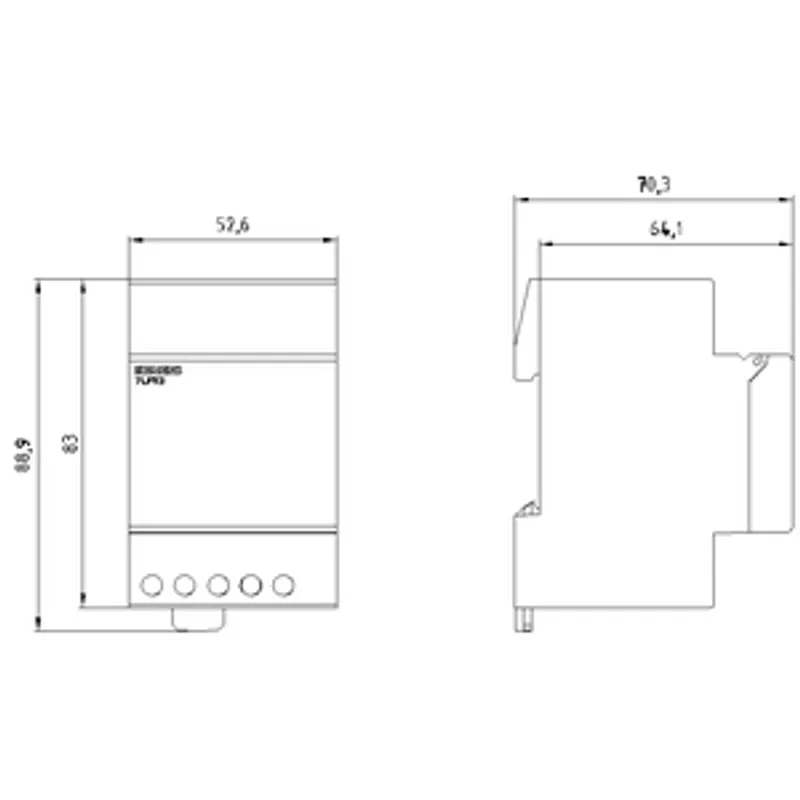

Mechanical Design

height	83 mm
width	53 mm
depth	64 mm
number of modular width units	3
fastening method	DIN rail
Net Weight	161 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 7LF5301-7PDF
