Siemens

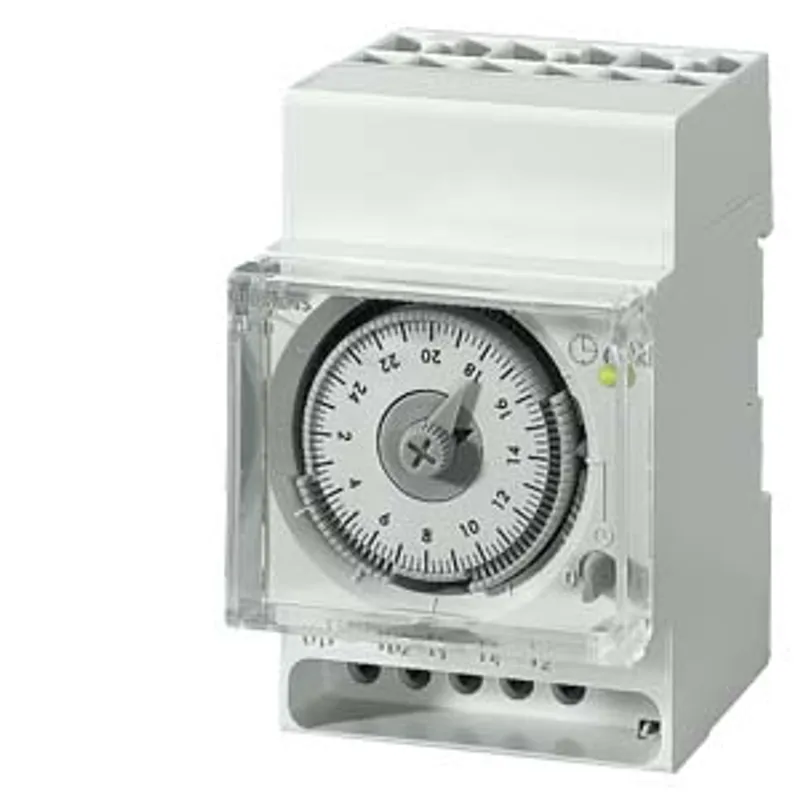

Siemens 7LF5301-5

Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW auto. daylight-saving time switchover

MPN: 7LF5301-5
Category: 7LF5 Mechanical Time Switches

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 7LF5301-5?

Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW auto. daylight-saving time switchover

Specifications

Model

product brand name	SENTRON
product designation	Mechanical time switch
design of the product	Week
design of the switching function	CO contact

General technical data

principle of operation line-synchronous	No
principle of operation quartz-controlled	Yes
shortest switching time interval of channel 1	240 min

Supply voltage

supply voltage initial value	230 V
supply voltage full-scale value	230 V
type of voltage of the supply voltage	AC
supply voltage frequency — minimum	50 Hz
supply voltage frequency — maximum	50 Hz

Protection class

protection class IP

IP20

Breaking Capacity

switching capacity current at AC at 250 V rated value

16 A

Product details

product feature floating switching contact

Yes

Product function

product function — 60 min time program	No
product function — automatic daylight-saving adjustment	Yes
product function — direct operation	Yes
product function — annual time program	No
product function — switching preselection	Yes
product function — 24 hr time program	No
product function — weekly time program	Yes

Number

number of channels

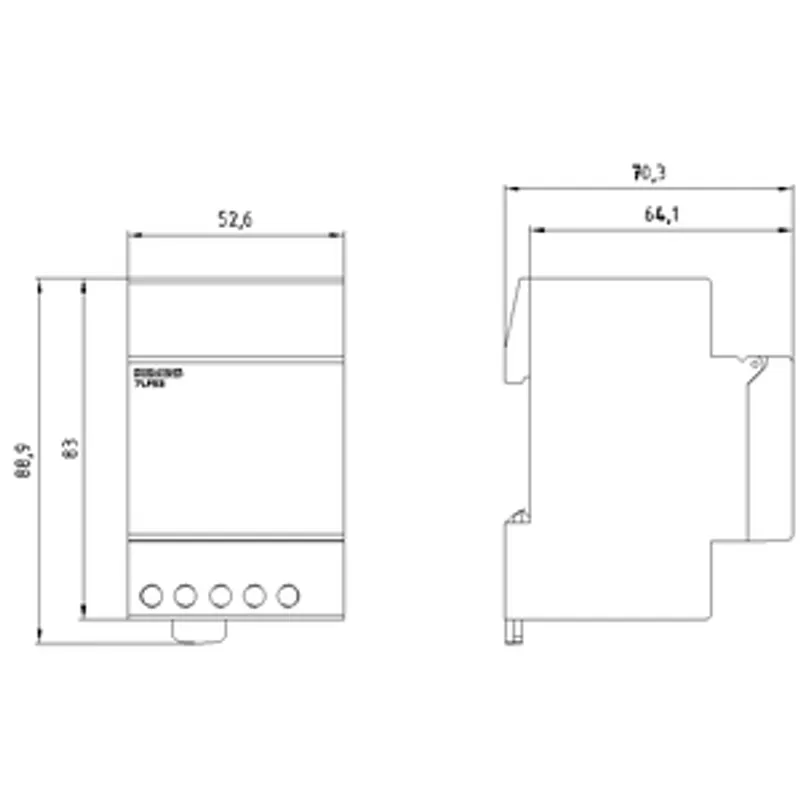

Mechanical Design

height	83 mm
width	53 mm
depth	64 mm
number of modular width units	3
fastening method	DIN rail
Net Weight	174 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 7LF5301-5PDF
