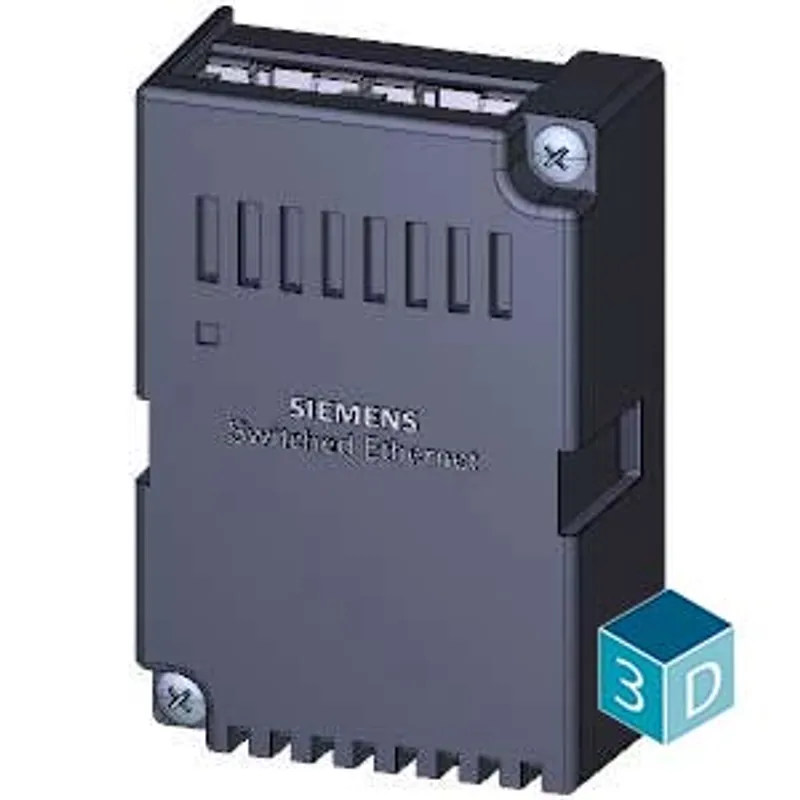

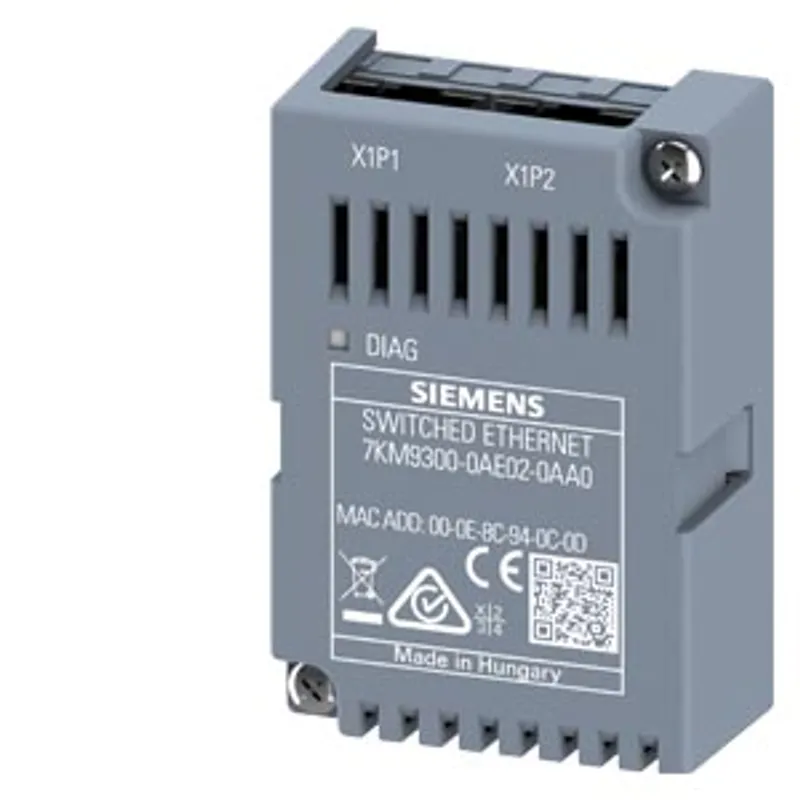

Siemens 7KM9300-0AE02-0AA0

Expansion module Switched Ethernet PROFINET V3, plug-in, for 7KM PAC3220 / 4220 / 3VA COM100 / 800

MPN: 7KM9300-0AE02-0AA0
Category: SENTRON 7KM PAC Expansion Modules and Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 7KM9300-0AE02-0AA0?

expansion module Switched Ethernet PROFINET V3, plug-in, for 7KM PAC3220 / 4220 / 3VA COM100 / 800

Specifications

Model

product brand name	SENTRON
product designation	Switched Ethernet PROFINET expansion module
type of voltage supply	via PAC 3200 / PAC3220 / PAC4200 / COM100 / 800

General technical data

type of update time at the PROFINET IO device with IRT	500 µs, 1 ms, 2 ms, 4 ms for IRT
design of the interface according to PROFINET	2 ports (switch)
type of transfer rate for plug type RJ45	PROFINET with 100 Mbps
MTBF	196.31 a
galvanic isolation	Maximum insulation voltage: 500V AC
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750	P
software version with STEP 7 in the TIA Portal required	≥ STEP 7 V16
GSD version/revision with PROFINET required	GSDML V2.3
number of interfaces according to PROFINET	2
interface design 1 integrated switch	Yes
protocol at the 1st interface media redundancy protocol	PROFINET MRP
PROFINET IO device	Yes
transmission mode for Industrial Ethernet	PROFINET with 100 Mbps
product function at the Ethernet interface Autonegotiation	Yes
product function at the Ethernet interface Autocrossover	Yes
open IE communication	Yes
IRT	Yes
transfer rate for plug type RJ45 100 Mbit/s	Yes
service as PROFINET IO device supports PROFIenergy	Yes
protocol at the 1st interface media redundancy protocol	Yes
product function of the PROFINET IO controller is supported PROFINET system redundancy	Yes
for open IE communication — TCP/IP	Yes
for open IE communication — SNMP	Yes
for open IE communication — LLDP	Yes
degree of pollution	2 according to IEC 61131
supply voltage 1 at DC — minimum rated value	28.8 V
supply voltage 1 at DC — maximum rated value	19.2 V

Protection class

protection class IP	IP20
combustibility class according to UL 94	V 0
suitability for use	7KM PAC 3220 / PAC 4200 / PAC 4220 / 3VA COM100 / 800
suitability for use reactive power meter	No

Connections

type of electrical connection

2 x RJ45 socket

Mechanical Design

height	90 mm
width	18 mm
depth	73 mm
fastening method	pluggable
Net Weight	38 g

Environmental conditions

ambient temperature during operation — minimum	-25 °C
ambient temperature during operation — maximum	55 °C
ambient temperature during storage — minimum	-25 °C
ambient temperature during storage — maximum	70 °C

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	8.48 kg
global warming potential [CO2 eq] / during sales	0.0159 kg
global warming potential [CO2 eq] / during operation	0 kg
global warming potential [CO2 eq] / after end of life	-0.602 kg
global warming potential [CO2 eq] / total	7.89 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 7KM9300-0AE02-0AA0PDF
