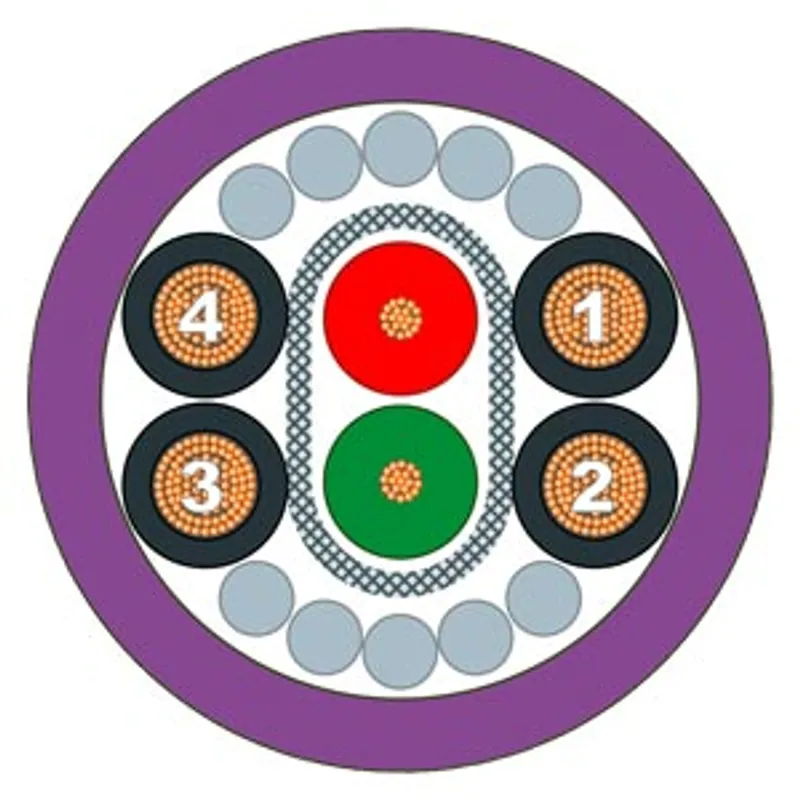

Siemens 6XV1830-7AH10
PROFIBUS ECOFAST Hybrid Cable, Trailable cable with 4x Cu (1.5 mm2) and 2xCU (0.64 mm) shielded
- MPN
- 6XV1830-7AH10
- Category
- ECOFAST bus cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1830-7AH10?
PROFIBUS ECOFAST Hybrid Cable, Trailable cable with 4x Cu (1.5 mm2) and 2xCU (0.64 mm) shielded, sold by the meter, delivery unit max. 1000 m minimum order quantity: 20 m.
Specifications
General
| Technical Product Detail Page | https://i.siemens.com/1P6XV1830-7AH10 |
| suitability for use | Hybrid cable for connection of ECOFAST stations |
| cable designation | 02Y (ST)C 1 x 2 x 0.65/2.56 - 150 LI LIH-Z 11Y 4 x 1 x 1.5 VI FRNC |
electrical data
| attenuation factor per length — at 9.6 kHz / maximum | 0.004 dB/m |
| attenuation factor per length — at 38.4 kHz / maximum | 0.004 dB/m |
| attenuation factor per length — at 4 MHz / maximum | 0.025 dB/m |
| attenuation factor per length — at 16 MHz / maximum | 0.049 dB/m |
| impedance — rated value | 150 Ω |
| impedance — at 9.6 kHz | 270 Ω |
| impedance — at 38.4 kHz | 185 Ω |
| impedance — at 3 MHz … 20 MHz | 150 Ω |
| relative symmetrical tolerance — of the characteristic impedance at 9.6 kHz | 10 % |
| relative symmetrical tolerance — of the characteristic impedance at 38.4 kHz | 10 % |
| relative symmetrical tolerance — of the characteristic impedance at 3 MHz … 20 MHz | 10 % |
| loop resistance per length / maximum | 138 Ω/km |
| shield resistance per length / maximum | 15 Ω/km |
| insulation resistance coefficient | 20 GΩ·m |
| operating voltage / maximum | 80 V |
| capacity per length / at 1 kHz | 30 pF/m |
| operating voltage / RMS value | 100 V |
| conductor cross section / of the power line | 1.5 mm² |
| continuous current / of the power lines | 12 A |
mechanical data
| design of the shield | Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires |
| number of electrical cores | 6 |
| type of electrical connection / FastConnect | No |
| outer diameter — of inner conductor | 0.67 mm |
| outer diameter — of the wire insulation | 2.56 mm |
| outer diameter — of cable sheath | 11 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.3 mm |
| material — of the wire insulation | polyethylene (PE) |
| material — of cable sheath | PUR |
| color — of the insulation of data wires | red / green |
| color — of the power line insulation | Black |
| color — of cable sheath | Violet |
| bending radius — with multiple bends / minimum permissible | 82.5 mm |
| number of bending cycles | 5000000; For use in cable carriers, for 5 million bending cycles with a bending radius of 82.5 mm (7.5x D) and an acceleration of 2.5 m/s² |
| tensile load / maximum | 300 N |
| weight per length | 150 kg/km |
ambient conditions
| ambient temperature — during operation | -40 ... +60 °C |
| ambient temperature — during storage | -40 ... +60 °C |
| ambient temperature — during transport | -40 ... +60 °C |
| ambient temperature — during installation | -40 ... +60 °C |
| ambient temperature — note | Electrical properties measured at 20 Cel, verification according to DIN 47250 part 4 respectively DIN VDE 0472 |
| fire behavior | flame-retardant according to IEC 60332-1 |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance — to mineral oil | Conditional resistance |
| chemical resistance — to grease | Conditional resistance |
| radiological resistance / to UV radiation | resistant |
product features, product functions, product components / general
| product feature — halogen-free | Yes |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | No |
| UL/ETL style / 600 V Rating | No |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — RoHS conformity | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
