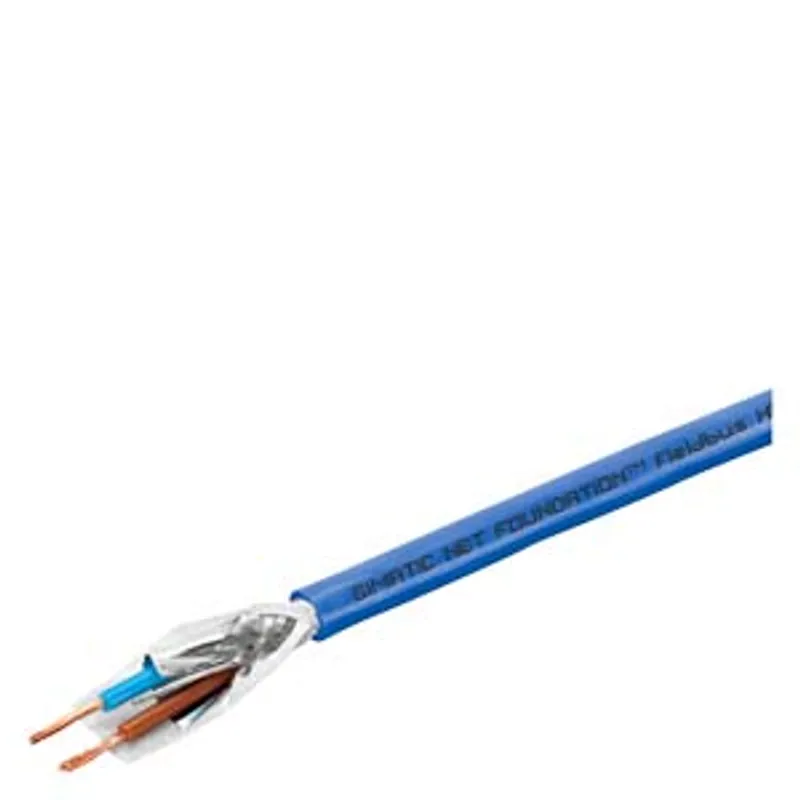

Siemens 6XV1830-5GH10
Foundation Fieldbus Cable; bus cable for IEC 61158-2; sheath color blue for Ex applications; 2-core shielded
- MPN
- 6XV1830-5GH10
- Category
- Bus cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1830-5GH10?
Foundation Fieldbus Cable; bus cable for IEC 61158-2; sheath color blue for Ex applications; 2-core shielded; stranded drain wire; Sold by the meter delivery unit max. 1000 m minimum order quantity 20 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1830-5GH10 |
| suitability for use | For use in fieldbus systems according to IEC 61158-2 (e.g. Foundation Fieldbus), suitable for Ex applications |
| cable designation | 2X(ST)CY 1X2X1.1/2.85-100 LI BL FR OE |
| wire length | sold by the meter |
electrical data
| attenuation factor per length — at 38.4 kHz / maximum | 0.003 dB/m |
| impedance — rated value | 100 Ω |
| impedance — at 31.25 kHz | 100 Ω |
| impedance — at 38.4 kHz | 100 Ω |
| relative symmetrical tolerance — of the characteristic impedance at 31.25 kHz | 20 % |
| relative symmetrical tolerance — of the characteristic impedance at 38.4 kHz | 20 % |
| loop resistance per length / maximum | 46 mΩ/m |
| shield resistance per length / maximum | 10 Ω/km |
| capacity per length / at 1 kHz | 65 pF/m |
| inductance per length | 0.75 µH/m |
| operating voltage — RMS value | 300 V |
mechanical data
| number of electrical cores | 2 |
| design of the shield | Overlapped aluminum-clad foil, sheathed in a braided shield of tin-plated copper wires with shield wire |
| type of electrical connection / FastConnect | No |
| outer diameter — of inner conductor | 1.17 mm |
| outer diameter — of the wire insulation | 2.85 mm |
| outer diameter — of the inner sheath of the cable | 6.4 mm |
| outer diameter — of cable sheath | 8.5 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.3 mm |
| material — of the wire insulation | polyethylene (PE) |
| material — of cable sheath | PVC |
| color — of the insulation of data wires | blue/brown |
| color — of cable sheath | blue |
| bending radius — with single bend / minimum permissible | 34 mm |
| bending radius — with multiple bends / minimum permissible | 68 mm |
| tensile load / maximum | 100 N |
| weight per length | 98 kg/km |
ambient conditions
| ambient temperature — during operation | -40 ... +105 °C |
| ambient temperature — during storage | -40 ... +105 °C |
| ambient temperature — during transport | -40 ... +105 °C |
| ambient temperature — during installation | -40 ... +105 °C |
| ambient temperature — note | electrical properties measured at 20 °C |
| ambient condition / for operation | Transfer rate of cable: 31.25 Kbit/s |
| fire behavior | flame resistant according to IEC 60332-1-2 |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance — to mineral oil | conditional resistance |
| chemical resistance — to grease | Conditional resistance |
| chemical resistance — to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; c(UL)us, CMG / PLTC / Sun Res |
| UL/ETL style / 600 V Rating | No |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Germanische Lloyd (GL) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6XV1830-5GH10: frequently asked questions
When can 6XV1830-5GH10 be shipped?
6XV1830-5GH10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6XV1830-5GH10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6XV1830-5GH10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6XV1830-5GH10, subject to availability and destination.
