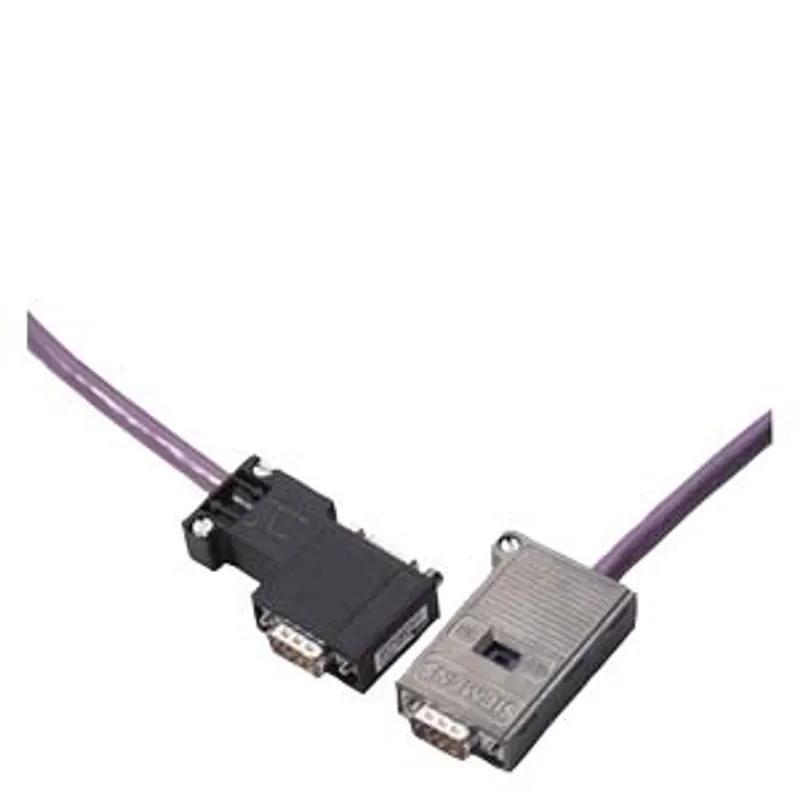

Siemens 6XV1830-2AH50

Plug-in cable 830-2 for PROFIBUS, pre-assembled cable with two D-sub connectors 9-pole

MPN: 6XV1830-2AH50
Category: Connecting cable 830-2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6XV1830-2AH50?

plug-in cable 830-2 for PROFIBUS, pre-assembled cable with two D-sub connectors 9-pole, Terminating resistors connectable, 5 m.

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6XV1830-2AH50
suitability for use	Cable for connecting PROFIBUS stations (e.g. HMI) to automation devices
cable designation	02YSY (ST) CY 1x2x0,64/2,55-150 VI KF 40 FR
wire length	5 m

electrical data

number of electrical connections	2
attenuation factor per length — at 9.6 kHz / maximum	0.0025 dB/m
attenuation factor per length — at 38.4 kHz / maximum	0.004 dB/m
attenuation factor per length — at 4 MHz / maximum	0.022 dB/m
attenuation factor per length — at 16 MHz / maximum	0.042 dB/m
operating voltage — RMS value	80 V

mechanical data

number of electrical cores	2
design of the shield	Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
outer diameter — of inner conductor	0.65 mm
outer diameter — of the wire insulation	2.55 mm
outer diameter — of the inner sheath of the cable	5.4 mm
material — of the wire insulation	polyethylene (PE)
material — of the inner sheath of the cable	PVC
color — of the insulation of data wires	red/green
bending radius — with single bend / minimum permissible	37.5 mm
bending radius — with multiple bends / minimum permissible	75 mm
weight per length	80 kg/km

ambient conditions

ambient temperature — note	electrical properties measured at 20 °C
fire behavior	flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4)
chemical resistance — to mineral oil	oil resistant according to IEC 60811-2-1 (4 h / 70°C)
chemical resistance — to water	conditional resistance
radiological resistance / to UV radiation	resistant
protection class IP	IP20

standards, specifications, approvals

UL/ETL listing / 300 V Rating	Yes; c(UL)us, CMG / CL3 / Sun Res
UL/ETL style / 600 V Rating	Yes
certificate of suitability — EAC approval	Yes
certificate of suitability — CE marking	Yes
certificate of suitability — RoHS conformity	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	No
Marine classification association — Germanische Lloyd (GL)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No
Marine classification association — Nippon Kaiji Kyokai (NK)	No
Marine classification association — Polski Rejestr Statkow (PRS)	No

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
