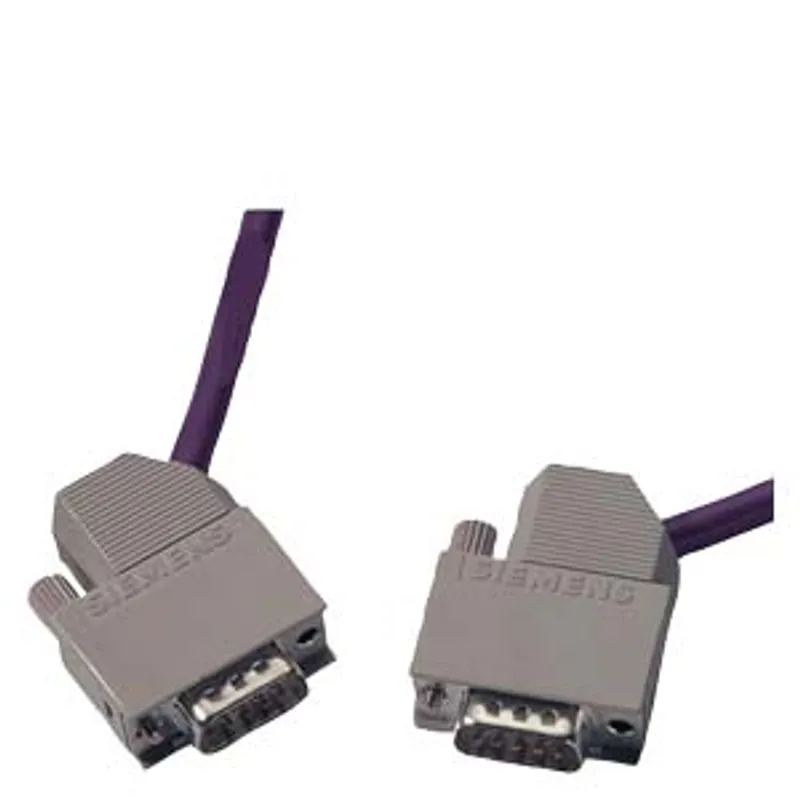

Siemens 6XV1830-1CH30
Plug-in cable 830-1T for PROFIBUS for connection of terminal devices to OLM and OBT Already pre-assembled…
- MPN
- 6XV1830-1CH30
- Category
- Connecting cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1830-1CH30?
Plug-in cable 830-1T for PROFIBUS for connection of terminal devices to OLM and OBT Already pre-assembled with 2 D-sub connectors, 9-pole, cable terminated on both ends, 3 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1830-1CH30 |
| suitability for use | For connecting PROFIBUS stations to OLM or OBT |
| cable designation | L-02YSCY 1x2x0,22 VZN VI |
| wire length | 3 m |
electrical data
| number of electrical connections | 2 |
| insulation resistance coefficient | 1 GΩ·m |
| capacity per length / at 1 kHz | 30 pF/m |
| operating voltage — RMS value | 80 V |
mechanical data
| number of electrical cores | 2 |
| design of the shield | Braided shield made of tin-plated copper wires |
| outer diameter — of inner conductor | 0.61 mm |
| outer diameter — of the wire insulation | 1.8 mm |
| outer diameter — of cable sheath | 5.7 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| material — of the wire insulation | polyethylene (PE) |
| material — of cable sheath | PVC |
| color — of cable sheath | Violet |
| bending radius — with multiple bends / minimum permissible | 86 mm |
ambient conditions
| ambient temperature — during operation | -40 ... +70 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| fire behavior | flame resistant according to IEC 60332-1 |
| chemical resistance — to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| protection class IP | IP20 |
product features, product functions, product components / general
| product feature — silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — CE marking | Yes |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Germanische Lloyd (GL) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
