Siemens 6MD5512-0AP00-1AH0
Runtime & Configuration incl. SIMATIC WinCC
- MPN
- 6MD5512-0AP00-1AH0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6MD5512-0AP00-1AH0?

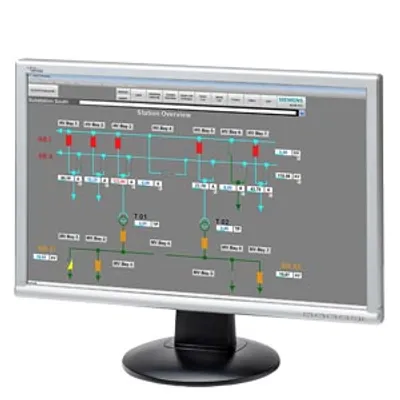

SICAM SCC V10.x operation and monitoring, Runtime and configuration (RC) 512 PowerTags Software, documentation and license(s) provided as download Specification of e-mail address (consignee) is required for delivery.
Specifications
General technical data
| national language / of the software | german / english |
Product details
| product description | HMI / SCADA software |
| product component / component library | Yes |
Model
| product designation | SICAM SCC |
Product Functions
| user interface info texts can be translated into any national language | Yes |
| Unicode support for process data | No |
| diagnostics function | Yes |
| communication function | Yes |
| project planning function | Yes |
Display and operation
| horizontal image resolution / of the graphics card | 1 024 pixel |
| horizontal image resolution / of the graphics card / note | minimum 1024, from 1980 onwards |
| vertical image resolution / of the graphics card | 768 pixel |
| vertical image resolution / of the graphics card / note | minimum 768, from 1080 onwards |
Requirements
| number of colors / of the graphics card | 32 |
| design of the drive/storage medium / required / DVD drive | No |
| operating system / usable / Windows 7 | No |
| operating system / usable / Windows 10 | Yes |
| operating system / usable / Windows 2012 Server | Yes |
| operating system / usable / Windows 2016 Server | Yes |
| operating system / usable / Windows Server 2019 | Yes |
| processor clock frequency / minimum | 3 GHz |
| processor clock frequency / minimum / note | 3GHz single core |
| browser software / required | no |
| storage capacity / on hard disk / required | 1.5 Gbyte |
| storage capacity / on hard disk / required / note | client 1.5 GB, server 10 GB |
| storage capacity / of the main memory or RAM / minimum | 8 Gbyte |
Communication
| protocol / is supported / SNMP | Yes |
| protocol / is supported / IEC 60870-5-104 | Yes |
| protocol / to the substation as client / is supported / IEC 61850 | Yes |
Cybersecurity
| type of access control / role-based access control (RBAC) | Yes |
Time synchronization
| type of time synchronization | NTP, PTP |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6MD5512-0AP00-1AH0: frequently asked questions
When can 6MD5512-0AP00-1AH0 be shipped?
6MD5512-0AP00-1AH0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6MD5512-0AP00-1AH0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6MD5512-0AP00-1AH0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6MD5512-0AP00-1AH0, subject to availability and destination.
