Siemens 6MD5512-0AP00-0AH0
- MPN
- 6MD5512-0AP00-0AH0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

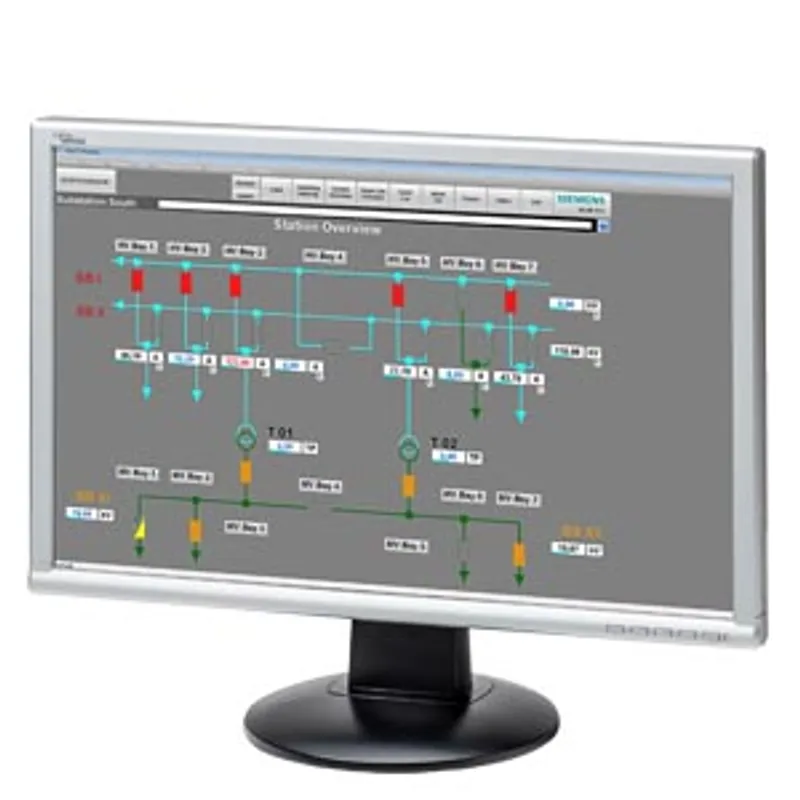

What is the Siemens 6MD5512-0AP00-0AH0?
SICAM SCC V9.x operation and monitoring, Runtime and configuration (RC) 512 PowerTags download software, documentation and license(s) for download. Specification of an email address (consignee) for delivery is absolutely required.
Specifications
General technical data
| target system | option for SIMATIC WinCC |
| national language / of the software | german / english |
Product details
| product description | HMI / SCADA software |
| product component / component library | Yes |
Model
| product designation | SICAM SCC |
| product version | SICAM SCC V9.x (runtime and configuration 512 tags) |
Product Functions
| user interface info texts can be translated into any national language | Yes |
| Unicode support for process data | No |
| diagnostics function | Yes |
| communication function | Yes |
| project planning function | Yes |
Display and operation
| horizontal image resolution / of the graphics card | 1 024 pixel |
| horizontal image resolution / of the graphics card / note | minimum 1024, from 1980 onwards |
| vertical image resolution / of the graphics card | 768 pixel |
| vertical image resolution / of the graphics card / note | minimum 768, from 1080 onwards |
Requirements
| number of colors / of the graphics card | 32 |
| design of the drive/storage medium / required / DVD drive | No |
| operating system / usable / Windows 7 | No |
| operating system / usable / Windows 10 | Yes |
| operating system / usable / Windows 2012 Server | Yes |
| operating system / usable / Windows 2016 Server | Yes |
| operating system / usable / Windows Server 2019 | Yes |
| processor clock frequency / minimum | 3 GHz |
| processor clock frequency / minimum / note | 3GHz single core |
| browser software / required | no |
| storage capacity / on hard disk / required | 1.5 Gbyte |
| storage capacity / on hard disk / required / note | client 1.5 GB, server 10 GB |
| storage capacity / of the main memory or RAM / minimum | 8 Gbyte |
Communication
| protocol / is supported / SNMP | Yes |
| protocol / is supported / IEC 60870-5-104 | Yes |
| protocol / to the substation as client / is supported / IEC 61850 | Yes |
Cybersecurity
| type of access control / role-based access control (RBAC) | Yes |
Time synchronization
| type of time synchronization | NTP, PTP |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6MD5512-0AP00-0AH0: frequently asked questions
When can 6MD5512-0AP00-0AH0 be shipped?
6MD5512-0AP00-0AH0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6MD5512-0AP00-0AH0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6MD5512-0AP00-0AH0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6MD5512-0AP00-0AH0, subject to availability and destination.
