Siemens 6GT2891-4FN10

SIMATIC RF, MV plug-in cable, pre-assembled, between ASM 456, RF160C, RF170C, RF18XC and reader

MPN: 6GT2891-4FN10
Category: RFID standard cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2891-4FN10?

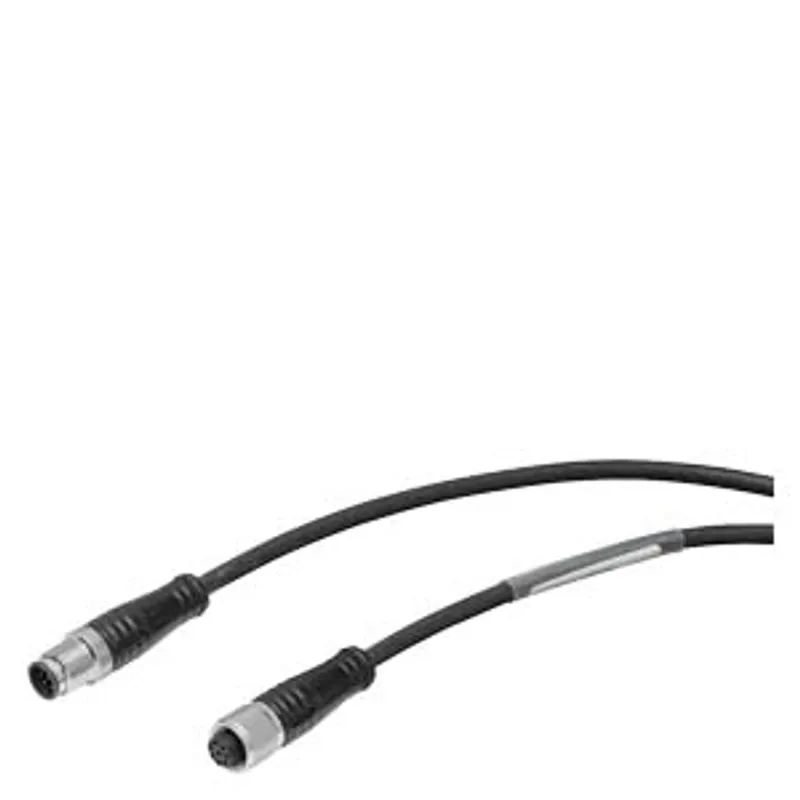

SIMATIC RF, MV plug-in cable, pre-assembled, between ASM 456, RF160C, RF170C, RF18XC and reader, or extension cable for ASM 456, RF160C, RF170C, RF18XC with RF, MV, MOBY PUR, trailing, length 10 m.

Specifications

General

product brand name	SIMATIC RF
Technical Product Detail Page	https://i.siemens.com/1P6GT2891-4FN10
suitability for use	Plug-in or extension cable for connecting a reader to a communication module
cable designation	L-YC11Y 6x1x0.25 6x24AWG CM
wire length	10 m

electrical data

number of electrical connections	2
type of electrical connection	M12 (male, 8 pin, straight) / M12 (female, 8 pin, straight)
loop resistance per length / maximum	160 mΩ/m
insulation resistance coefficient	20 GΩ·m
operating voltage — maximum	300 V

mechanical data

number of electrical cores	6
design of the shield	Braided shield made of tin-plated copper wires
outer diameter — of cable sheath	5.4 mm
symmetrical tolerance of the outer diameter / of cable sheath	0.2 mm
material — of the wire insulation	PVC
material — of cable sheath	PUR
color — of the insulation of data wires	DIN 47100
color — of cable sheath	Black
bending radius — with single bend / minimum permissible	21.6 mm
bending radius — with multiple bends / minimum permissible	43 mm
bending radius — with continuous bending	75 mm
number of bending cycles	3000000
tensile load / maximum	200 N
weight per length	45 kg/km

ambient conditions

ambient temperature — during operation	-30 ... +80 °C
ambient temperature — during storage	-30 ... +80 °C
ambient temperature — during transport	-30 ... +80 °C
ambient temperature — during installation	-30 ... +80 °C
fire behavior	flame resistant according to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6	Eca
chemical resistance — to mineral oil	resistant
chemical resistance — to grease	resistant
radiological resistance / to UV radiation	resistant

product features, product functions, product components / general

product feature — halogen-free	No
product feature — silicon-free	Yes

standards, specifications, approvals

UL/ETL listing / 300 V Rating	Yes; CM (only cable without plug)
certificate of suitability — EAC approval	Yes

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GT2891-4FN10PDF
