Siemens 6GT2891-0PH50
SIMATIC RF600 connecting cable for 24 V connection of the readers RF610XR, RF650R
- MPN
- 6GT2891-0PH50
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2891-0PH50?

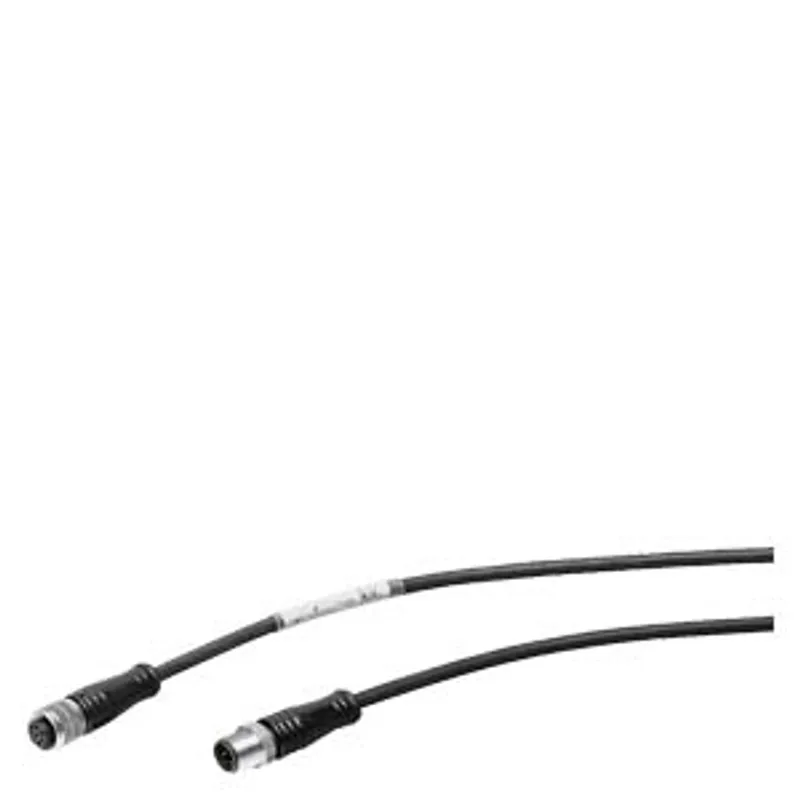

SIMATIC RF600 connecting cable for 24 V connection of the readers RF610XR, RF650R, RF68XR to the power supply units of type 6GT2898-0AA and 6GT2898-0AC, PUR, length 5 m.
Specifications
General
| product brand name | SIMATIC RF |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2891-0PH50 |
| suitability for use | Plug-in cable for connecting a 24 V power supply to a reader RF61XR, RF650R, RF68XR, MV440 |
| cable designation | L-YC11Y 6x1x0.25 6x24AWG CM |
| wire length | 5 m |
electrical data
| number of electrical connections | 2 |
| loop resistance per length / maximum | 160 mΩ/m |
| insulation resistance coefficient | 20 GΩ·m |
| operating voltage / maximum | 300 V |
mechanical data
| design of the shield | Braided shield made of tin-plated copper wires |
| number of electrical cores | 6 |
| type of electrical connection | M12 (male, 4-pin, straight) / M12 (female, 8-pin, straight) |
| outer diameter — of cable sheath | 5.4 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| design of stranding element | Six |
| conductor class | 5 |
| material — of the conductor | CU, blank |
| material — of the wire insulation | PVC |
| material — of cable sheath | PUR |
| marking / of cores | Color |
| color — of the insulation of data wires | DIN 47100 |
| color — of cable sheath | Black |
| bending radius — with single bend / minimum permissible | 21.6 mm |
| bending radius — with multiple bends / minimum permissible | 43 mm |
| bending radius — with continuous bending | 75 mm |
| number of bending cycles | 3000000 |
| tensile load / maximum | 200 N |
| weight per length | 45 kg/km |
ambient conditions
| ambient temperature — during operation | -30 ... +80 °C |
| ambient temperature — during storage | -30 ... +80 °C |
| ambient temperature — during transport | -30 ... +80 °C |
| ambient temperature — during installation | -30 ... +80 °C |
| fire behavior | Flame-resistant according to IEC 60332-1-4 |
| chemical resistance — to mineral oil | resistant |
| chemical resistance — to grease | resistant |
| radiological resistance / to UV radiation | resistant |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; CM |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GT2891-0PH50: frequently asked questions
When can 6GT2891-0PH50 be shipped?
6GT2891-0PH50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GT2891-0PH50 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GT2891-0PH50 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2891-0PH50, subject to availability and destination.
