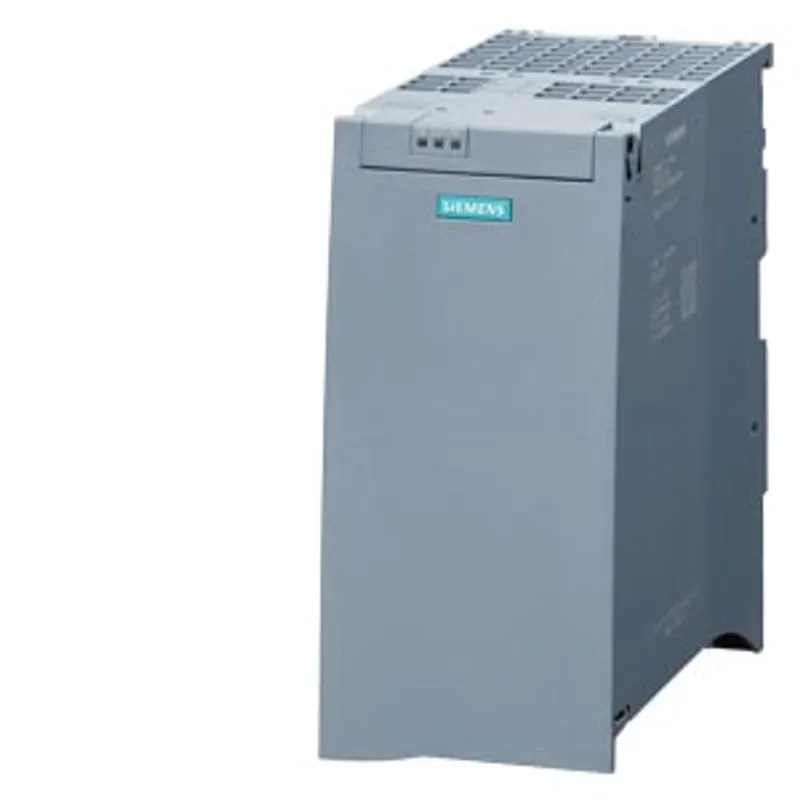

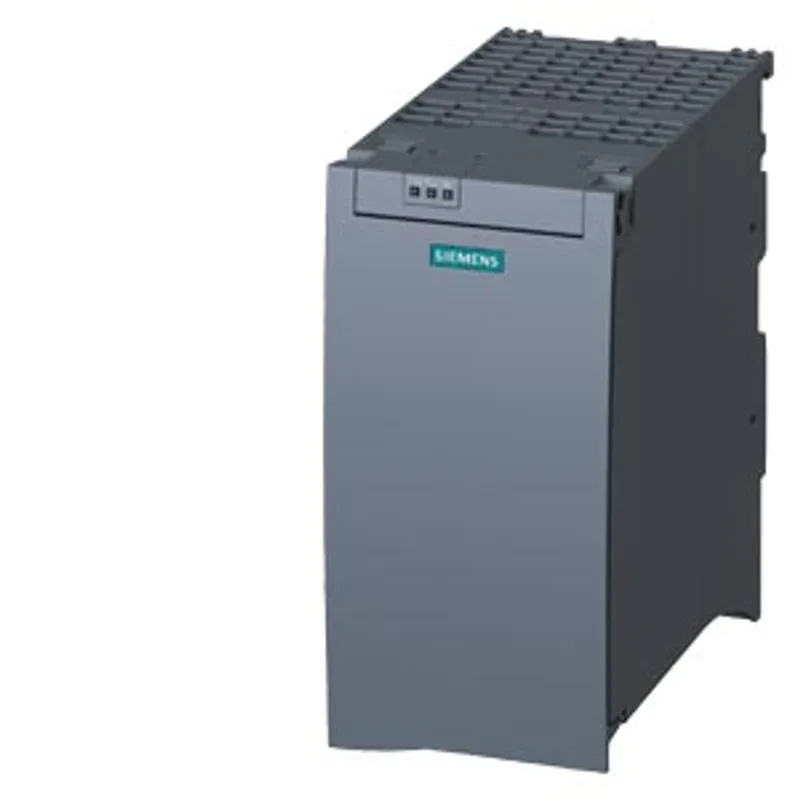

Siemens 6GK7543-1MX00-0XE0

TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7

MPN
6GK7543-1MX00-0XE0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK7543-1MX00-0XE0?

TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS-232/RS-485 interface for communication via classic wide area networks.

Specifications

General

product brand nameSIMATIC NET
Technical Product Detail Pagehttps://i.siemens.com/1P6GK7543-1MX00-0XE0

transfer rate

transfer rate — at the 1st interface10 ... 1000 Mbit/s
transfer rate — at the 2nd interface10 ... 100 Mbit/s
transfer rate — at the 3rd interface10 ... 100 Mbit/s
transfer rate — according to RS 232300 ... 115200 bit/s

interfaces

number of interfaces / according to Industrial Ethernet3
number of electrical connections — for external data transmission / according to RS 2321
number of electrical connections — for power supply1
number of slots — for memory cards1
type of electrical connection — of Industrial Ethernet interfaceRJ45 port
type of electrical connection — at interface 1 / for external data transmission9 pin Sub-D-connector, RS232 switchable to RS485
type of electrical connection — for power supply2-pole plugable terminal block
slot version — of the memory cardSD 1.0, SD 1.1, SDHC, Siemens SMC
storage capacity / of the memory card / maximum32 Gibyte

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage20.4 ... 28.8 V
supply voltage / external / at DC / rated value24 V
supply voltage / external / at DC / rated value20.4 ... 28.8 V
consumed current — from external supply voltage / at DC / at 24 V / typical0.15 A
consumed current — from external supply voltage / at DC / at 24 V / maximum0.3 A
power loss [W] / with external supply voltage / at 24 V DC — in update mode / typical3.9 W
power loss [W] / with external supply voltage / at 24 V DC — in communication mode / typical3.9 W
product extension / optional / backup batteryNo

ambient conditions

ambient temperature — during operation0 ... 70 °C
ambient temperature — for vertical installation / during operation0 ... 50 °C
ambient temperature — for horizontally arranged busbars / during operation0 ... 70 °C
ambient temperature — during storage-40 ... +70 °C
ambient temperature — during transport-40 ... +70 °C
relative humidity — at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

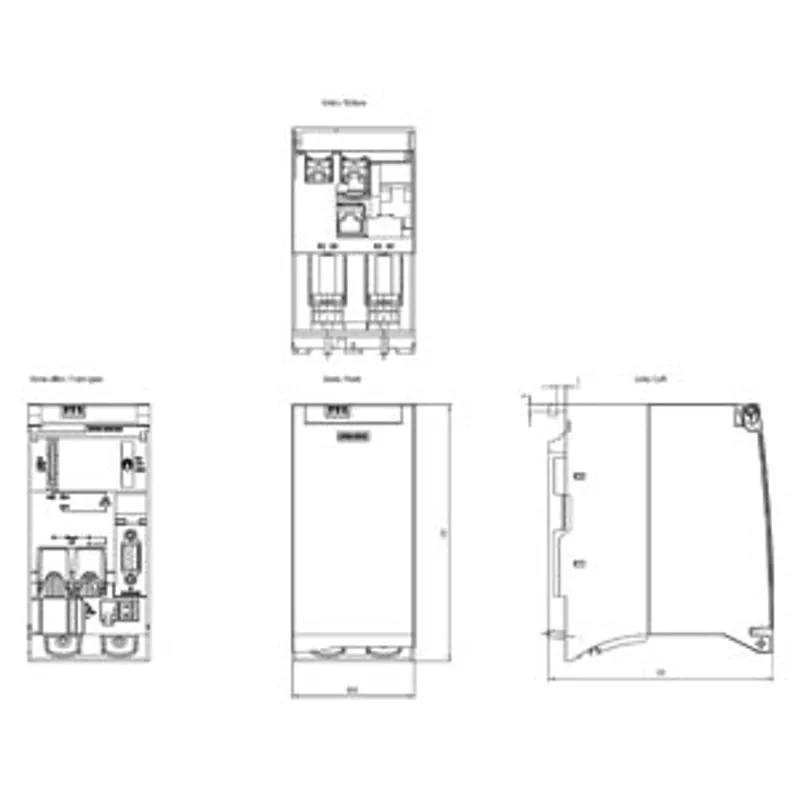

design, dimensions and weights

module formatCompact module S7-1500 double-wide
width70 mm
height147 mm
depth129 mm
net weight0.525 kg
fastening method — 35 mm DIN-rail mountingNo
fastening method — S7-300 rail mountingNo
fastening method — S7-1500 rail mountingYes

product features, product functions, product components / general

product function — DynDNS clientNo
number of units — noteNumber of TIM per S7-1500: 1
wire length — with RS 232 interface / maximum6 m
wire length — with RS 485 interface / maximum30 m

performance data / S7 communication

number of possible connections / for S7 communication — maximum132; only via LAN
number of possible connections / for S7 communication — with PG connections / maximum4
number of possible connections / for S7 communication — with PG/OP connections / maximum4
number of possible connections / for S7 communication — with OP connections / maximum4
service — of SIMATIC communication / as serverYes
service — SINAUT ST7 via S7 communicationYes
service — PG/OP communicationYes

performance data / IT functions

number of possible connections — as server / by means of HTTP / maximum2
number of possible connections — as server / by means of HTTPS / maximum2; 2 per Ethernet interface
number of possible connections — as email client / maximum1

performance data / telecontrol

suitability for use — node stationYes
suitability for use — substationYes
suitability for use — TIM control centerYes
control center connectionSystems with ST7, DNP3 and IEC 60870-5-101/104 protocol
control center connection — by means of a permanent connectionSystems with ST7, DNP3 and IEC 60870-5-101/104 protocol
protocol / is supported — DNP3Yes
protocol / is supported — IEC 60870-5Yes
protocol / is supported — SINAUT ST1 protocolNo
protocol / is supported — SINAUT ST7 protocolYes
protocol / is supported — Modbus RTUNo
product function / data buffering if connection is abortedYes; 100000 data telegrams (ST7) or 250000 events (IEC 60870-5 / DNP3)
number of data points per device / maximum3000
number of DNP3 masters — for Ethernet / maximum4
number of DNP3 masters — with RS 232 interface / maximum4
product feature / buffered message frame memoryYes
transmission format — for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitYes
operating mode for scanning of data transmission — with dedicated line/radio link / with SINAUT ST7 protocolPolling, polling with time slot procedure
operating mode for scanning of data transmission — with dial-up network / with SINAUT ST7 protocolspontaneous
hamming distance — for SINAUT ST7 protocol4

performance data / teleservice

diagnostics function / online diagnostics with SIMATIC STEP 7Yes
product function — program download with SIMATIC STEP 7Yes
product function — remote firmware updateYes
product function — remote configurationYes

product functions / management, configuration, engineering

product function / MIB supportYes
protocol / is supported — SNMP v1Yes
protocol / is supported — SNMP v3Yes
protocol / is supported — DCPYes
protocol / is supported — LLDPYes
configuration software — requiredSTEP 7 Professional V14 SP1 (TIA Portal) or higher
configuration software — for CPU configuring / required / SINAUT TD7 block library for CPUNo
configuration software — for PG configuring / required / SINAUT ST7 configuration software for PGNo
storage location / of TIM configuration dataFlash or SD card of the TIM 1531 IRC
identification & maintenance function — I&M0 - device-specific informationYes
identification & maintenance function — I&M1 - higher level designation/location designationYes
identification & maintenance function — I&M2 - installation dateYes
identification & maintenance function — I&M3 - commentYes
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

product function / web-based diagnosticsYes

product functions / routing

service / routing / noteIP routing up to 1 Mbps
product function — static IP routingYes
product function — static IP routing IPv6Yes
product function — dynamic IP routingNo
product function — dynamic IP routing IPv6No
protocol / is supported — RIP v1No
protocol / is supported — RIPv2No
protocol / is supported — RIPnG for IPv6No
protocol / is supported — OSPFv2No
protocol / is supported — OSPFv3 for IPv6No
protocol / is supported — VRRPNo
protocol / is supported — VRRP for IPv6No
protocol / is supported — BGPNo
protocol / is supported — PPPNo
protocol / is supported — PPoE via DSLNo

product functions / security

product function — MSC client via GPRS modem with MSC capabilityYes
protocol — is supported / MSC protocolYes
protocol — with Virtual Private Network MSC / is supportedTCP/IP
key length / for MSC / with Virtual Private Network128 bit
number of possible connections — as MSC client / with VPN connection1
number of possible connections — as MSC server / with VPN connection127

product functions / time

product function / SICLOCK supportNo
product function / pass on time synchronizationYes
protocol / is supported — NTPYes
protocol / is supported — NTP (secure)Yes
product component / hardware real time clockNo
product feature / hardware real time clock w. battery backupNo
time synchronization — from NTP-serverYes
time synchronization — from GPS-signalNo
time synchronization — from control centerYes
time synchronization — from mobile network providerNo
time synchronization — PCNo
time synchronization — manual settingNo

product functions / position detection

product function — position detection with GPSNo
product function — pass on position dataNo

standards, specifications, approvals

certificate of suitability / CE markingYes
certificate of suitability / Regulatory Compliance Mark (RCM)Yes
certificate of suitability / RoHS conformityYes
certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes
certificate of suitability / IECExYes
certificate of suitability / CCC / for hazardous zone according to GB standardYes
certificate of suitability / FM registrationYes

standards, specifications, approvals / marine classification / header

Marine classification association / Det Norske Veritas (DNV)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes
global warming potential [CO2 eq] — total128.35 kg
global warming potential [CO2 eq] — during manufacturing18.7 kg
global warming potential [CO2 eq] — during operation109 kg
global warming potential [CO2 eq] — after end of life0.65 kg

further information / internet links

internet link — to website: Selection guide for cables and connectorshttps://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
internet link — to website: Industrial communicationhttps://www.siemens.com/simatic-net
internet link — to web page: SiePortalhttps://sieportal.siemens.com/
internet link — to website: Image databasehttps://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Managerhttps://siemens.com/cax
internet link — to website: Industry Online Supporthttps://support.industry.siemens.com

security information

security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6GK7543-1MX00-0XE0: frequently asked questions

When can 6GK7543-1MX00-0XE0 be shipped?

6GK7543-1MX00-0XE0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GK7543-1MX00-0XE0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GK7543-1MX00-0XE0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK7543-1MX00-0XE0, subject to availability and destination.
